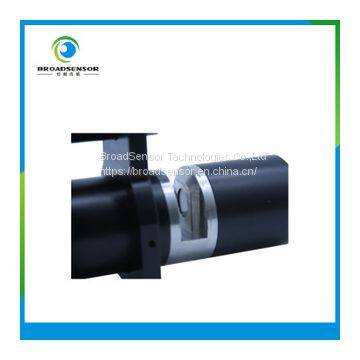

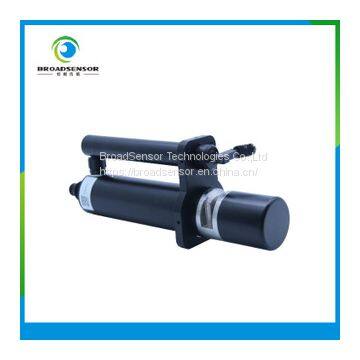

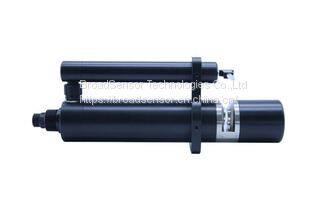

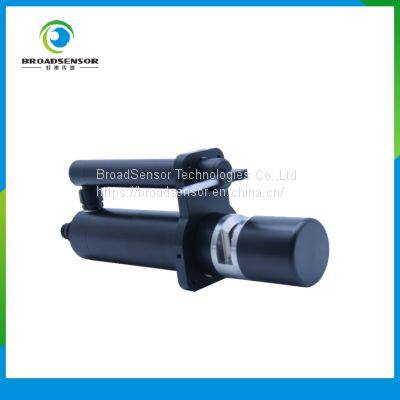

Help CenterUV254 COD(5 Beams) With Wiper Sensor, Multi-wave UV254 COD/BOD/TOC Monitorning Sensor
Related Products
-
UV254 Multi-wave COD Sensor Without Wiper, BOD Sensor, TOC Sensor,water Quality Monitoring SensorUS$ 8 - 8MOQ: 1 Piece -
Online Optical DO Sensor One Sonde of Multiparameter Sensor, Temperature Compensation, RS485 OutputUS$ 8 - 8MOQ: 1 Piece
-
Online Turbidity Sensor, RS485 Output, Multi-parameter Sonde, NTU,SSUS$ 8 - 8MOQ: 1 Piece
-
Online 4-electrode Conductivity Sensor, RS485, Water Quality Monitoring SensorUS$ 8 - 8MOQ: 1 Piece
-
Online Multiparameter Water Quality Sonde ODO, UV254 COD,OIW, PH, Ammonium, Conductivity, Turbidity, ChlorophyllUS$ 8 - 8MOQ: 1 Piece
PN:912123
The Broadsensor UV254 sensor is an optical-based absorption and transmittance with UV LED and PD technology sensor. The sensor measures the absorption at UV 254nm, blue, green, red and IR Simultaneously to compensate the SAC measurement for interferences from turbidity and color.
Key Advantages:
• 5 wavelength absorption measurement: UV, Vis and IR for turbidity and color compensation.
• SAC measurement used to determine organic loading without reagents.
• Measurement directly in the process, no sample processing or reagent required.
• Fast response, minimum 10 second.
• Cold light source (UV LED) and rugged PD, long life time and low drift.
• Support leakage alarm
• Build in auto wiper sub-system prevents biofouling from taking place.
| Item | Technical Specification |
|---|---|
| Measurement Method | Absorption measurement at 254 nm, DIN 38402 C2, DIN 38404, HJ/T191 standard |
| Range | 6mm cuvette gap 0.15~300mg/L equiv. KHP(COD solution) 2mm cuvette gap 0.5~1000mg/L equiv. KHP(COD solution) 2mm cuvette gap 1.5~1500mg/L equiv. KHP(COD solution) |
| Resolution | 0.1mg/L or 0.01mg/L COD |
| Repeatability | +/-1% FS equiv. KHP |
| Operating temperature | 0~45℃ |
| Storage Temperature | -10~50℃ |
| Clean system | Auto wiper system is optional |
| Warranty | 1 year |
| Depth | IP68, 10m Max |
| Power | 12V 20mA (normal), 200mA (Max) |
| Output | RS485 and Modbus protocol |
| Materials | Titanium, SS316, POM, Nylon, PUR, quartz glass |
| Dimensions | Length 280mm, diameter 142x157mm |
| Flow rate | <3 m/s |
| Response time | Minimum 10s T90 |
| Field life* | Sensor 3 years or greater, wiper sub-system 1.5 years or greater |
| Recommended Calibration Frequency* | Sensor 3 months, wiper sub-system inspection 6 months. |
Note: *Field life and calibration frequency dependent on site conditions
