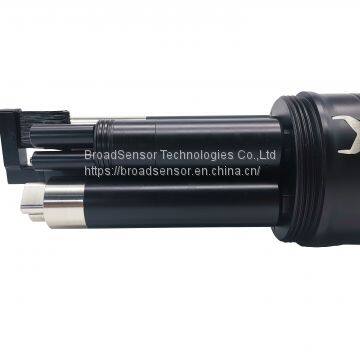

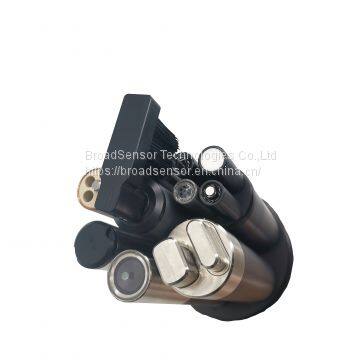

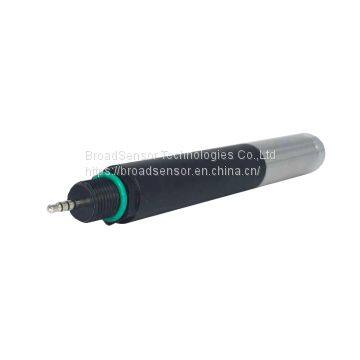

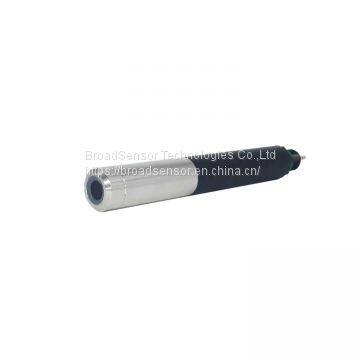

Online Optical DO Sensor One Sonde of Multiparameter Sensor, Temperature Compensation, RS485 Output

PN: 610114
The Broadsensor optical DO sensor is coated with a luminescent material. Blue Light from an LED strikes the luminescent chemical on the sensor. The luminescent chemical instantly becomes excited and then as the excited chemical relaxes, it emit red light. The red light is detected by a photo diode. The time it takes for the chemical to return to a relaxed state is measured by referring an independent red led light. Oxygen has a dampening effect on this reaction. The oxygen concentration is proportional to the time it takes for the luminescent material to return to a relaxed state.

Key Advantages:

• Smart sensor retains all calibration in the sensor

• Membrane less, no electrodes design

• Flow Independent and No oxygen consumption

• No warm-up time required

• Easy to store, air or water are all ok

• User-replaceable sensor cap

• Low drift and long life time

• Low cost, all made in China, including fluorescent film

• Digital output, support RS485 Modbus protocol

• POM, SS316, TA body are selectable

Note: *Field life and calibration frequency dependent on site conditions
