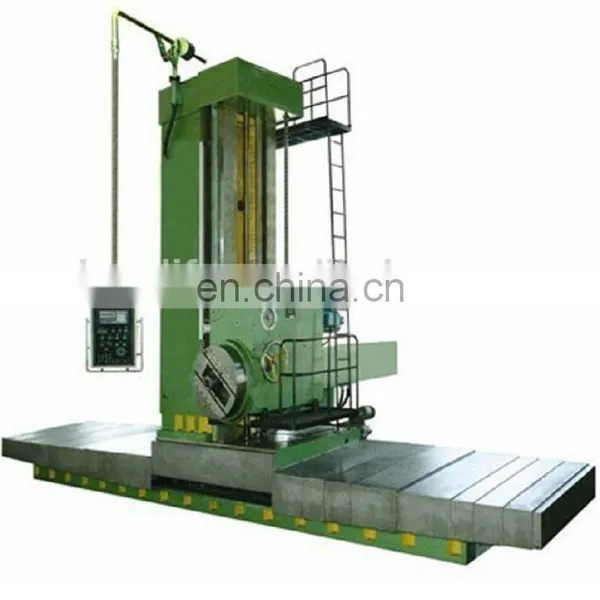

TPX6216-1 dro horizontal boring milling machine
TK6916(Ø160mm) CNC Floor-type Horizontal Boring Milling Machine
TPX6113(Ø130mm) Widely-used Horizontal Boring Milling Machine
TPX6111(Ø110mm) Conventional Horizontal Boring Machine
TPX6216 floor-type horizontal boring milling machine can be adapted to machine casting, steel, and nonferrous word- places. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
Spindle is stepless speed, 4 steps speed-change by mechanical shift, 2 steps feed by mechanical shift, box ways and facing head is balanced reducing type.
Specifications of TPX6216 horizontal boring milling machine | Unit | Parameter |
Spindle diameter |
| Φ160 |
Spindle taper |
| Metric 80# |
Spindle speed (stepless) | r/min | 1.8~500 |
Range of spindle speed | mm/min | 0.45~1500 |
Travel of spindle (Z - axis travel) | mm | 1200 |
Distance from spindle center to table surface | mm | Max.2600 Min.600 |
Max. spindle axial thrust | N | 39200 |
Max. spindle torque | Nm | 4900 |
Travel of headstock (Y-axis travel) | mm | 2000 |
Feed range (stepless) | mm/min | 5~1500 |
Travel of front column(X - axis travel) | mm | 6000 |
Maximum loading capacity | t/m2 | 15 |
Power of main motor | kW | 30 |
Feed motor power | kW | 7.5 |
Overall dimensions (LxWxH) | mm | 10500x8820x6000 |
Weight of machine | t | 77 |
S.N | Name | Q’ty | Note |
1 | Cushion Block | 26 pcs |
|
| 2 | ...... | ||
| 3 | ...... | ||
| 4 | ...... | ||
5 | Tube for installing balancing hammer | 1 pc |
|
6 | Direction key | 1 pc |
|
7 | Instruction Manual (Mechanical) | 1 pc |
|
8 | Instruction Manual (Electrical) | 1 |
|
9 | Certificate of inspection | 1 |
|
10 | Packing List | 1 |
|
11 | Catalogue of spare parts | 1 |
|
Pls send inquiry to me for optioanl accessories and other further information about such floor type horizontal boring milling machines.
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129
