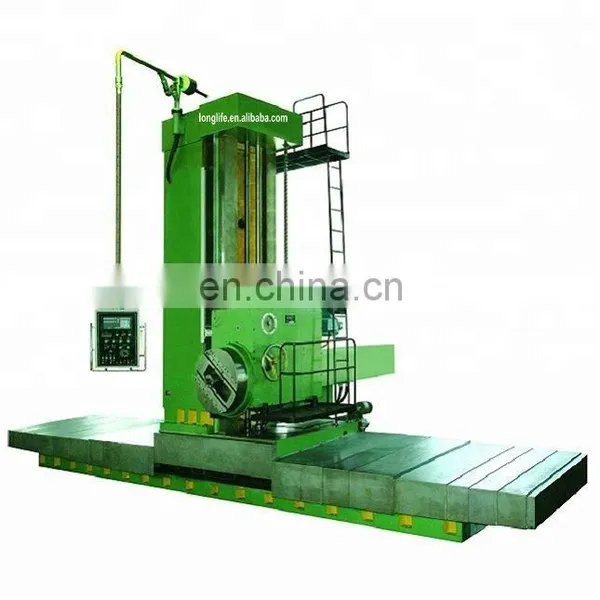

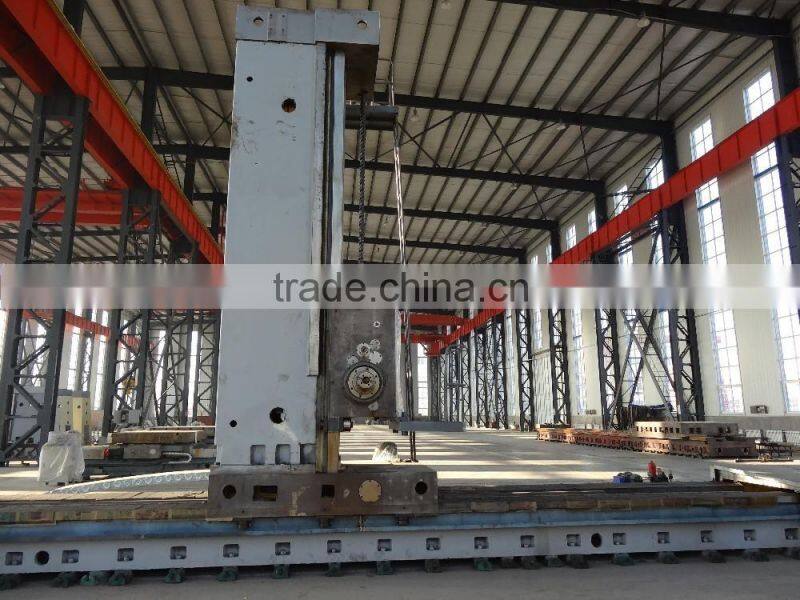

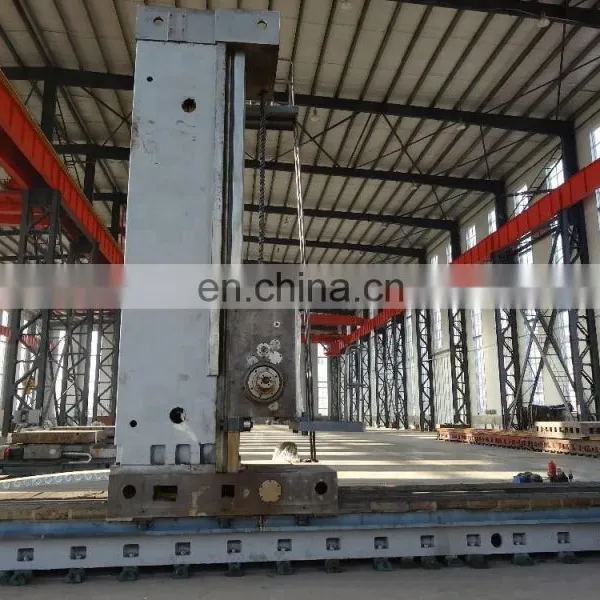

TPX62 series floor type horizontal boring machine
This kind of floor type horizontal boring machine is mainly used for milling holes for large and medium-sized parts as well as other processing such as hole drilling, expanding, reaming and plane milling.
The radial tool post of facing head can be used for surfacing; if cooperated with rotary work table, it can be used for processing inner hole and outer circle with large diameter and short length.
Facer is installed on boring rod, which can be applied to the processing of workpiece plane milling.
Bed of TPX6216/1,TPX6216/2 machine is a lengthened type.

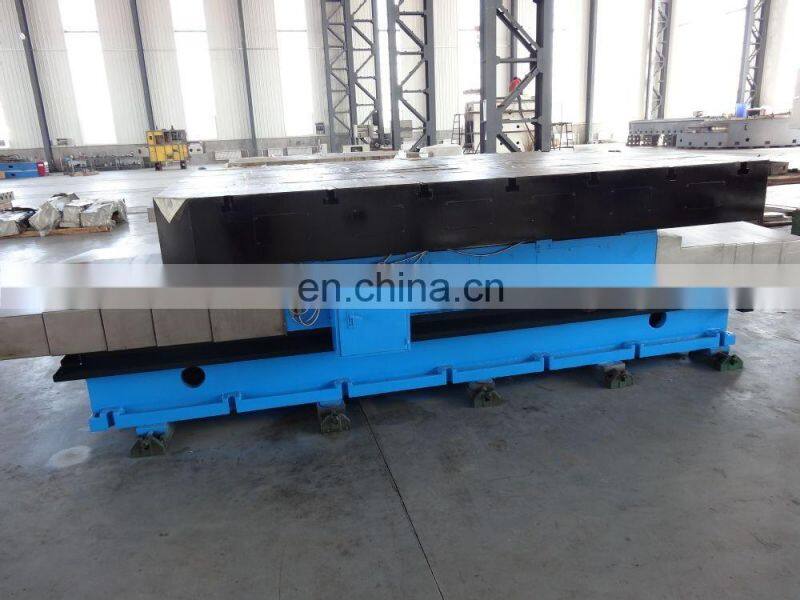

Worktable Plate
Specifications |
Unit |
TPX6213 |
TPX6213/1 |
TPX6216 |
TPX6216/1 |
TPX6216/2 |
TPX6216/3 |
TPX6216/4 |
TPX6216/5 |
TPX6216/6 |
1. Spindle | ||||||||||
Diameter of boring spindle |
mm |
Φ130(5”) |
Φ130(5”) |
Φ160 (6”) |
Φ160 (6”) |
Φ160 (6”) |
Φ160 (6”) |
Φ160 (6”) |
Φ160 (6”) |
Φ160 (6”) |
Taper hole of boring spindle |
|
Metric 80 |
||||||||
Rotational speed of boring and milling spindle (stepless) |
r/min |
4~800 |
4~800 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
1.8~500 |
Feed range of boring spindle (stepless) |
mm/min |
0.01~8 |
0.01~8 |
0.45~1500 (60”) |
0.45~1500 (60”) |
0.45~1500 (60”) |
0.45~1500 (60”) |
0.45~1500 (60”) |
0.45~1500 (60”) |
0.45~1500 (60”) |
Maximum axial travel of boring spindle |
mm |
900(37”) |
900 (37”) |
1200 (48”) |
1200 (47”) |
1200 (48”) |
1200 (47”) |
1200 (48”) |
1200 (47”) |
1200 (48”) |
Rapid speed of boring spindle |
mm/min |
|
|
1500 (60”) |
1500 (60”) |
1500 (60”) |
1500 (60”) |
1500 (60”) |
1500 (60”) |
1500 (60”) |
Distance from spindle centre to platform (min.) |
mm |
235 (10”) |
240(10”) |
600 (24”) |
600 (24”) |
600 (24”) |
600 (24”) |
600 (24”) |
600 (24”) |
600 (24”) |
Distance from spindle centre to platform (Max.) |
mm |
1500 |
1500 |
2600 (102”) |
2600 (102”) |
2600 (102”) |
2600 (102”) |
2600 (102”) |
2600 (102”) |
2600 (102”) |
Maximum diameter of boring hole |
mm |
Φ350 |
Φ350 |
Φ750 (30”) |
Φ750 (30”) |
Φ750 (30”) |
Φ750 (30”) |
Φ750 (30”) |
Φ750 (30”) |
Φ750 (30”) |
Maximum resistance force of feed |
kg |
3200 |
3920 |
|||||||
Maximum tightening torque |
kg.m |
490 |
8000 |
490 |
490 |
490 |
490 |
490 |
490 |
490 |
2. Radial tool post of facing head | ||||||||||
Rotation (stepless) |
r/min |
4~800 |
1.8~120 |
|||||||
Feed range (stepless) |
mm/min |
0.6~480 |
0.21~750 |
|||||||
Maximum travel |
mm |
|
|
220 |
||||||
Rapid speed |
mm/min |
|
|
750 |
||||||
Maximum diameter of face turning |
mm |
|
|
Φ1000 |
||||||
Maximum diameter of boring hole |
mm |
|
|
Φ1000 |
||||||
3. Headstock | ||||||||||
Maximum vertical travel (Y axis) |
mm |
1500(60") |
1500(60") |
2000 (80") |
2000 (80") |
2000 (80") |
3000 (120") |
3000 (120") |
3000 (120") |
4000 (160") |
Feed range (stepless) |
mm/min |
|
|
5~1500 (60") |
5~1500 (60") |
5~1500 (60") |
5~1500 (60") |
5~1500 (60") |
5~1500 (60") |
5~1500 (60") |
Rapid speed |
mm/min |
|
|
1500 (60") |
1500 (60") |
1500 (60") |
1500 (60") |
1500 (60") |
1500 (60") |
1500 (60") |
4. Front column | ||||||||||
Maximum horizontal travel (X axis) |
mm |
6000 (240”) |
6000 (240”) |
4000 (160”) |
6000 (240”) |
8000 (320”) |
4000 (160”) |
6000 (240”) |
8000 (320”) |
8000 (320”) |
Feed range (stepless) |
mm/min |
|
|
5~1500 (60”) |
5~1500 (60”) |
5~1500 (60”) |
5~1500 (60”) |
5~1500 (60”) |
5~1500 (60”) |
5~1500 (60”) |
5. Platform | ||||||||||
Dimension of platform |
m |
|
|
4.5x1.8x4.0 |
|
|
|
|||
Area (length ×width) |
m |
|
|
3.6×4.5 |
4.05×4.5 |
4.5x4.5 |
5.4×4.5 |
|
|
|
Maximum loading capacity |
T/M3 |
15 |
||||||||
6. Power | ||||||||||
Main motor |
kW |
15 |
15 |
30 (1500 r/min) |
30 (1500 r/min) |
30 (1500 r/min) |
30 (1500 r/min) |
30 (1500 r/min) |
30 (1500 r/min) |
30 (1500 r/min) |
Feed motor |
kW |
5.5 |
5.5 |
7.5 (1500 r/min) |
7.5 (1500 r/min) |
7.5 (1500 r/min) |
7.5 (1500 r/min) |
7.5 (1500 r/min) |
7.5 (1500 r/min) |
7.5 (1500 r/min) |
Machine size |
|
|
|
|
|
|
|
|
|
|
Overall weight |
T |
38 |
|
67 |
77 |
85 |
72 |
82 |
95 |
97 |
S/N |
Name |
Part No. (specification) |
Quantity |
1 |
Radial tool post |
T6216-90001 |
1 |
2 |
Jaw |
T6216-90002 |
1 |
3 |
Socket wrench (S=46) |
T6216A-90350 |
1 |
4 |
Socket wrench (S=75) |
T6216A-90351 |
2 |
5 |
Small adjusting shaft of spindle bearing nut |
T6216-90355 |
1 |
Pls send inquiry to me for optioanl accessories and other further information about such horizontal boring machines.
