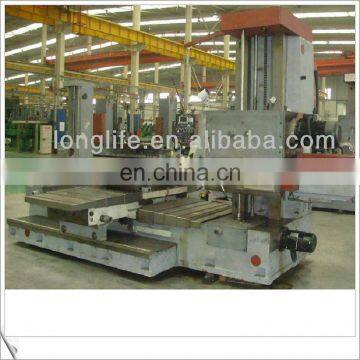

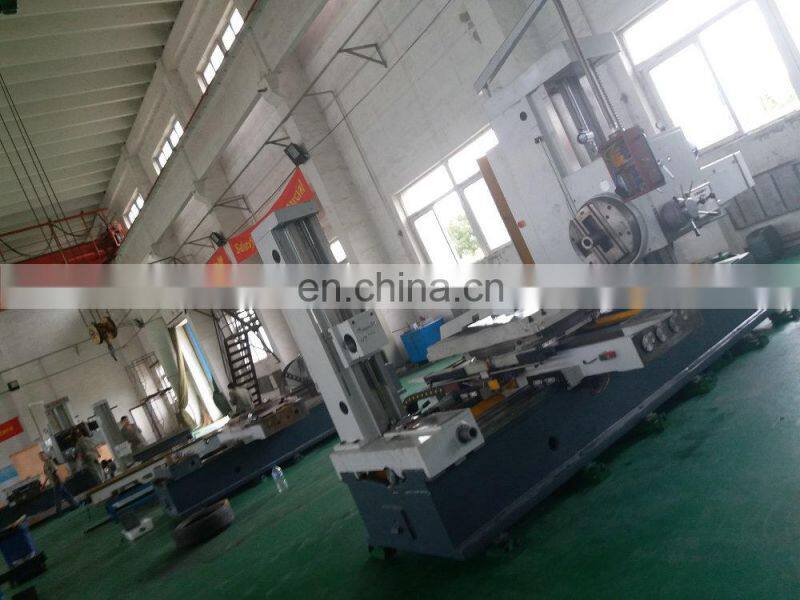

TPX6113A/3 horizontal boring machine/horizontal borer
1. TPX61 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
3. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
4. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
5. Spindle of better rigidity, stronger cutting force, higher efficiency.
7. Optical sensor available for higher table locating accuracy
8. DRO available for both X and Z axes;
9. Automatic tool loading and unloading available as optional with spindle of ISO7:24 at 50 taper;
Specifications | Unit | Parameter |
Spindle bore diameter | mm | Φ130 |
Spindle taper | MT | 80# |
Max, spindle torque | Nm | 3136 |
Max. spindle axial thrust | N | 31360 |
Steps of spindle speed |
| 24 |
Range of spindle speed | r/min | 4~800 |
Power of main motor | kW | 15 |
Max. facing head torque | Nm | 4900 |
Facing head diameter | mm | Φ750 |
Range of facing head speed | r/min | 2.5~125 |
Speed step of facing head speed |
| 18 |
Table size | mm | 1800×1600 |
Max. permissible load on table | kg | 8000 |
T- slot | mm | 28 |
Number of T-slot |
| 9 |
X- axis travel | mm | 3000 |
Y - axis travel | mm | 2000 |
Z - axis travel | mm | 1500/2000 (Without Rear Column) |
W- axis travel (Spindle travel) | mm | 900 |
U - axis travel (facing head spindle travel) | mm | 250 |
B - axis work table rotary |
| 360 |
Min. distance between spindle center and table surface | mm | 0 |
Rapid travel (X/Y/Z) | mm/min | 2500 |
Range of feed (X/Y/Z) | mm/rev | 0.04~6 |
Precision of measurement accuracy (X/Y/Z) | mm | 0.01 |
Overall dimensions (L×W×H) | mm | 7050×4030×3950 |
Weight of machine | kg | 32500 |
Pls send inquiry to me for optioanl accessories and other further information about such horizontal boring machine/horizontal borer.
