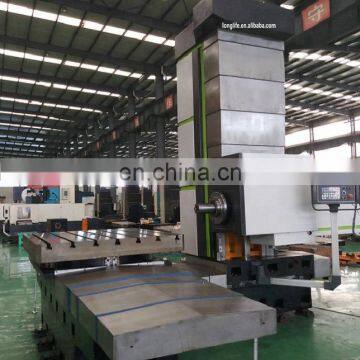

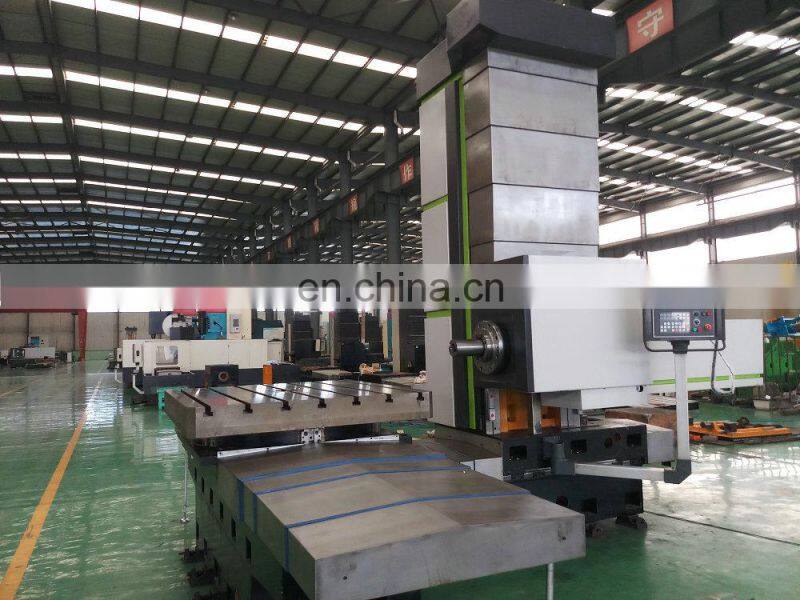

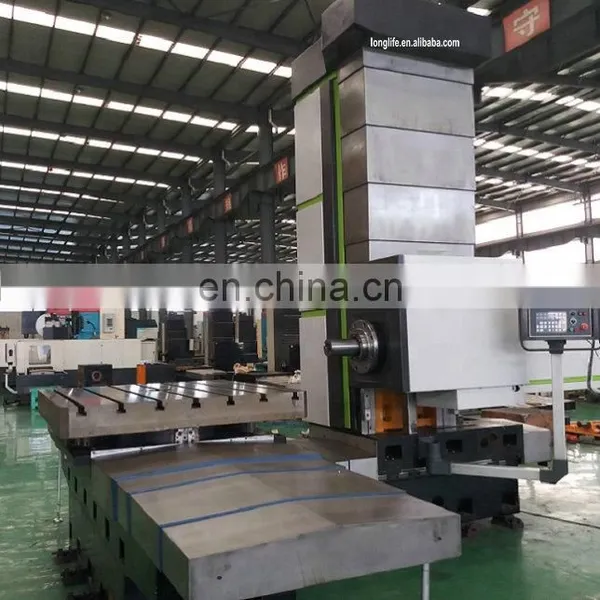

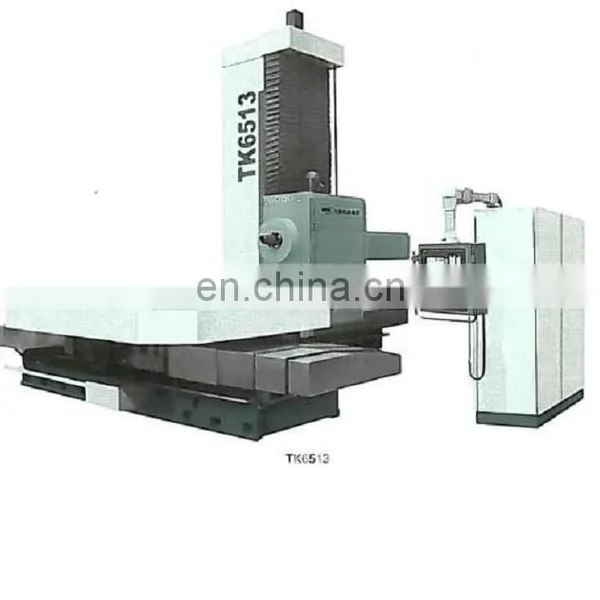

TK6513 cnc horizontal boring milling Machine
Such cnc horizontal boring and milling machine has following features:
1. horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
2. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
3. CE Standard and CE Certificate;
Specifications of TK6513 cnc horizontal boring machine |
Unit |
Parameter |
Rotary worktable size |
mm |
2000×2000 |
Max.load capacity |
kg |
10000 |
T-slot (Numbers * Width * Distance) (b / t slots) |
mm |
18×100×5 |
Table load Max |
kg |
10000 |
Spindle-box travel(Y-axis) |
mm |
2000 |
Spindle travel(Z-axis) |
mm |
700 |
Square ram travel(U-axis) |
mm |
900 |
Rotary worktable travel(V-axis) |
|
360° |
Dia.of spindle |
mm |
130 |
Spindle taper |
|
BT50 |
Spindle speed rage |
r/min |
20~1200 |
Spindle motor power |
kW |
11~22 |
Linear guideway |
|
HIWIN |
Bearing |
|
NSK |
Positioning accuracy |
|
±0.01/300 |
Weight of machine |
kg |
11000 |
CNC system |
|
Fagor 8055 |
S/N |
Name |
Quantity |
1 |
Radial tool post |
1 |
2 |
Jaw |
1 |
3 |
Socket wrench (S=46) |
1 |
4 |
Socket wrench (S=75) |
2 |
5 |
Small adjusting shaft of spindle bearing nut |
1 |
