China Professional Manufactory Super Quality Steel Tube Spiral Wrapper Machine

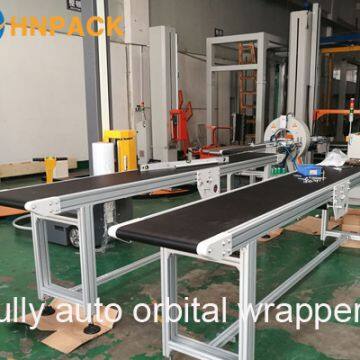

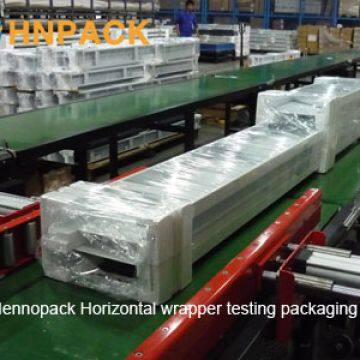

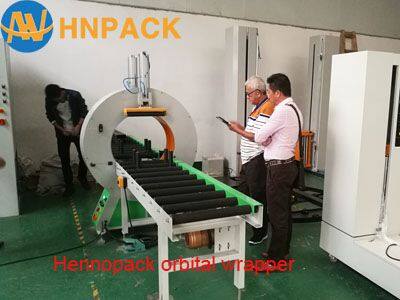

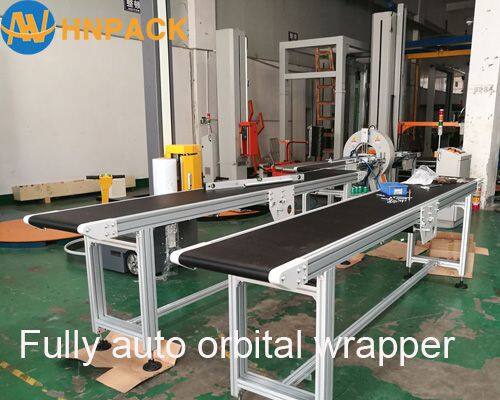

China Professional Manufactory Super Quality Steel Tube Spiral Wrapper Machine photo-1
China Professional Manufactory Super Quality Steel Tube Spiral Wrapper Machine photo-2
China Professional Manufactory Super Quality Steel Tube Spiral Wrapper Machine photo-3
China Professional Manufactory Super Quality Steel Tube Spiral Wrapper Machine photo-4
US$ 10000 - 16000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
hennopack
Place of Origin:
China
Model Number:
MH202
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen port,china
Delivery Detail:
35 days
Brand Name hennopack
Place of Origin China
Model Number MH202
Certification ce,ul,iso9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 660kg
Dimension(L*W*H) 3100mm*1500mm*1750mm
Voltage 3PH 380V 50Hz/60Hz
Power 2.5KW
Application Beverage, Chemical, Machinery & Hardware, Medical
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Plastic
Packaging Type Other, Film, stretch film spiral wrap

China manufactory hennopack super quality steel tube spiral wrap machine

Description of steel tube spiral wrap machine:

This is semiauto orbital stretch film wrapper and orbital packging machine with automatic material cutting and sealing device specialized for packing horizontal objects such as sheets, aluminum profile, doors, Floor board, window, furniture… the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.


SPECIFICATIONS FOR ORBITAL SPIRAL STRETCH WRAPPER

MH-200
MH-300
MH-400
Object size:
Length:>1500mm
Package OD: 100-200mm
Weight:10-100kg
Length:>1500mm
Package OD: 100-300mm
Weight:10-300kg
Length:>1500mm
Package OD: 100-400mm
Weight:10-500kg
Air Supply:



5~8kgf/cm2
5~8kgf/cm2
5~8kgf/cm2
Wrapping Speed:
5~18m/min
5~15m/min
5~15m/min
Packaging machinal
LLDPE stretch film
Width: 50-200mm
OD: 100-200mm
ID: 50mm
(Let me know, if you need another material)

LLDPE stretch film
Width: 100-200mm
OD: 100-200mm
ID: 50mm
(Let me know, if you need another material)
LLDPE stretch film
Width: 100-250mm
OD: 100-250mm
ID: 50mm
(Let me know, if you need another material)
Air supply
5~8kgf/cm2
5~8kgf/cm2
5~8kgf/cm2
Ring speed
App.10-80r/min
App.10-60r/min
App.10-60r/min
In feeding conveyor
2000mm L×800mmW
2000mm L×1400mmW
2000mm L×1800mmW
Out feeding conveyor
2000mm L×800mmW
2000mm L×1400mmW
2000mm L×1800mmW
Application
Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel, section
Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,bundle
Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,bundle

1.PLC control, touch screen user interface.

2.Rotation speed and conveyor speed variable, overlapping width could e adjusted according to requirements.

3.Pneumatically driven pressing devices effectively hold the  products during wrapping.

4.Photocell automatically senses the products and starts wrapping. Auto film clamp & Cut.

5.Accept wrapping machine custom design,such as color、 configuration、 performance、 appearance、 material、wrapping height、loading weight、control system、wrapping  size and so on.


Product Tags: spiral wrapper machine , steel tube spiral wrap
