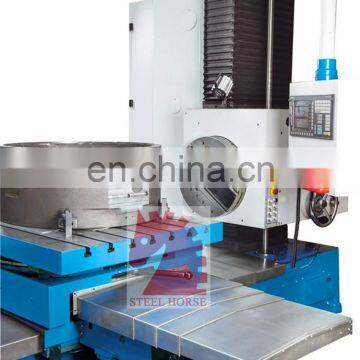

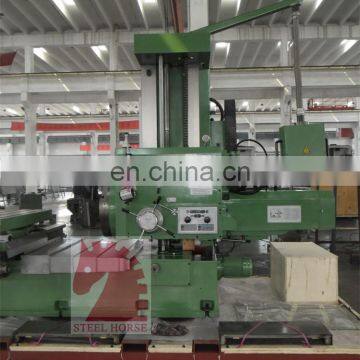

TPX6111B vertical boring and milling machine for metal
Details:
· rigid, hardened and precision-ground square guides ensure many years of accurate operation
· mechanical functions that may not be run simultaneously are provided with interlocks
· headstock and feed gears are equipped with an overload clutch
· lever-operated shift gears for positioning of the wheels in the desired position
· Faceplate and drill spindle with different task-specific speed ranges according to the various functions
· table rotates 360
· telescoping steel cover protects the guides from chips and dirt
· BO 110 incl. tailstock

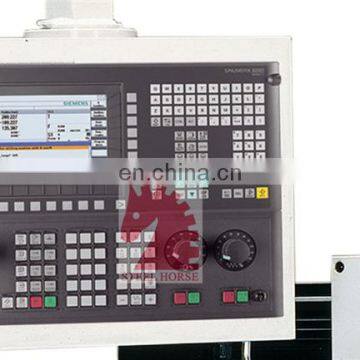

3-axis position indicator
· more accuracy
· lower error rate
· increased productivity
· resulting in valuable time savings
· for increased productivity
· easy to read display
· operator-specific features
· convenient keyboard layout
· resolution: 0.01/ 0.005 mm
· default coordinates
· axis position is maintained when display is turned off
· hole circle pattern calculation
· calculator function
· storage for 10 tools
· radius / diameter toggle
· mm/inch conversion
· easy expansion and maintenance-free operation
Technical Data:
|
Working area
Drilling capacity
Facing slide travel
Table set up area
Table load capacity
Spindle axis-to-table surface distance
Rotation speed of rotary table
|
50 mm
180 mm
1.100x960 mm
2.500 kg
0 - 900 mm
1 rpm
|
|---|---|
|
Travels
Travel X-axis
Travel Y-axis
Travel Z-axis
Travel W-axis
|
900 mm
900 mm
600 mm
1.000 mm
|
|
Headstock
Speed range
Spindle diameter
Headstock torque
Spindle mount
Facing slide speed
Feed force, axial (max.)
Facing slide torque (max.)
|
(22) 8 - 1.000 rpm
110 mm
1.225 Nm
SK 50
(18) 4 - 200 rpm
12,25 kN
1.960 Nm
|
|
Feed
Feed X-axis
Feed Y-axis
Feed Z-axis
Feed W-axis
Facing slide feed
|
(36) 0,01 - 6 mm/R
(36) 0,01 - 6 mm/R
(36) 0,01 - 6 mm/R
(36) 0,01 - 6 mm/R
(18) 0,08 - 12 mm/min
|
|
Accuracies
Read-out accuracy (optic)
Counter-bore accuracy
|
0,01 mm
H7 Ra-1,6 µm
|
|
Rapid feed
Rapid feed X-axis
Rapid feed Y-axis
Rapid feed W-axis
|
2.500 mm/min
2.500 mm/min
2.500 mm/min
|
|
Drive capacity
Motor rating main drive
Motor rating servo drive
Motor rating for Z-axis drive
Motor rating hydraulic pump
|
7,5 kW
3 kW
4 kW
0,37 kW
|
|
Measures and weights
Overall dimensions (length x width x height)
Weight
|
4,88x2,45x2,75 m
11.500 kg
|
Steel horse CNC milling machine product list | |||||
series |
Model |
Table size(mm) |
Table travel(mm) |
Weight(kg) |
|
|
Mini series (for small milling work,school teachj,machine price is cheap,function |
DB30CNC |
450*160 |
300*150*290 |
350 |
|
XHK7120 |
600*200 |
350*220*400 |
585 |
||
XK7125 |
1000*250 |
535*320*375 |
1700 |
||
M400 BT30 BT40 |
1000*240(320) |
550*330*450 |
1400 |
||
|
Light type series(for all of work,cheap price,every client frist choice,can do any work)
|
VMC320(VMC7032) |
1000(800)*320 |
610*320*400 |
2350 |
|
VMC350(VMC7035) |
950*350 |
650*350*500 |
2600 |
||
VMC400(VMC7040) |
900*400 |
700*400*550 |
2700 |
||
|
Heavy type series(for heavy,big work)
|
VT320L |
800*320 |
500*320*420 |
2700 |
|
VT500L |
950*500 |
800*500*550 |
5500 |
||
VT600L |
1300*600 |
1000*600*650 |
8000 |
||
