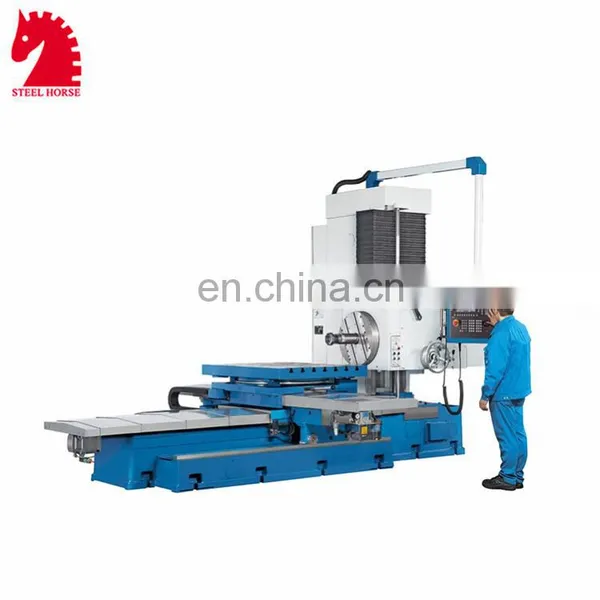

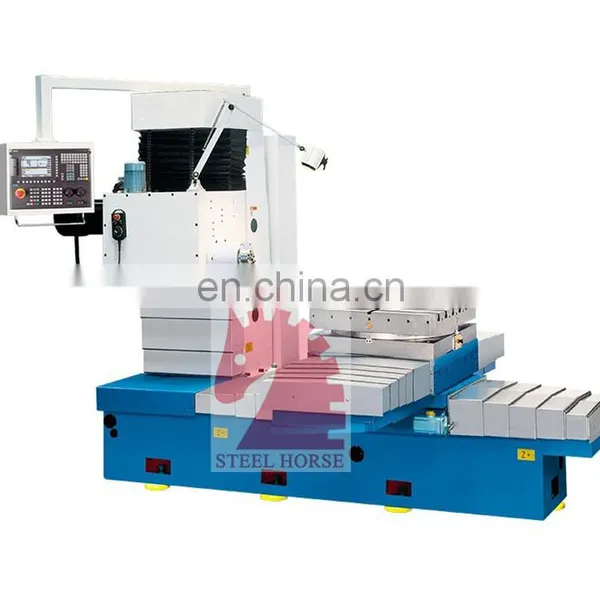

The largest factory in China,TPX6111 cnc horizontal milling and boring machine
Details:
· 4-sided machining
· rigid square guides ensure consistent work accuracy
· Hauptspindelantrieb mit AC-Servomotor for hohe Leistung und Drehmoment
· wide machine bed with 4 guideways
· rigid milling table with high load capacity for part weights up to 5 tons
· economic and intuitive 3-axis CNC control
· high-quality, high-precision preloaded ball screws supported by special bearings ensure maximum positioning accuracy for all feed axes
· telescoping stainless steel covers protect the guides from chips and dirt
· rotary table with manual clamping can be locked at 4 positions: 0, 90, 180 and 270
Technical Data:
|
Working area Drilling capacity Finish bore Facing slide travel Table dimensions Facing slide working diameter (max.) Table load capacity Spindle center-to-table distance Table rotation range Number of T-slots T-slots, width T-slots, spacing |
50 mm 240 mm 160 mm 1.320x1.010 mm 630 mm 5.000 kg 5 - 905 mm 360° 7 Pieces 22 mm 125 mm |
|
Travels Travel X-axis Travel Y-axis Travel Z-axis Travel W-axis |
1.200 mm 900 mm 1.300 mm 550 mm |
|
Headstock Speed range Spindle diameter Headstock torque Spindle mount Facing slide speed Facing slide torque (max.) Feed force, axial (max.) |
12 - 1.100 1/min 110 mm 1.100 Nm BT 50 4 - 125 1/min 1.100 Nm 13 kN |
|
Feed Feed speed Z-axis Facing slide feed |
0,5 - 1.000 mm/min 1.370 mm/min |
|
Accuracies Positioning accuracy X-axis Positioning accuracy Y-axis Positioning accuracy Z-axis Repeatability X-axis Repeatability Y-axis Repeatability Z-axis Work table rotation accuracy Work table repeatability |
0,04 mm 0,05 mm 0,06 mm 0,015 mm 0,015 mm 0,015 mm ± 6" (4x90°) ± 3" (4x90°) |
|
Rapid feed Rapid feed X-axis Rapid feed Y-axis Rapid feed Z-axis Rapid feed W-axis |
5.000 mm/min 5.000 mm/min 5.000 mm/min 2.060 mm/min |
|
Drive capacity Motor rating main drive |
11 kW |
|
Measures and weights Overall dimensions (length x width x height) Weight
|
5,35x3,02x2,89 m 12.000 kg |
the top specialist for demanding milling operations
Highlights
· compact, robust, maintenance-free control panel-based CNC
· comfortable program and parameter input via QWERTY keyboard
· maximum machining precision
· intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
· SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
· ShopMill: shortest programming time for single parts and small batch productions
· programGUIDE: fastest machining time and maximum flexibility for large series productions
· unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
· Animated Elements: unique operation and programming assistance with animated sequences
· modern data transfer options via USB stick, CF card and network (Ethernet)
· Easy Message: maximum machine availability due to process monitoring per texting (SMS)

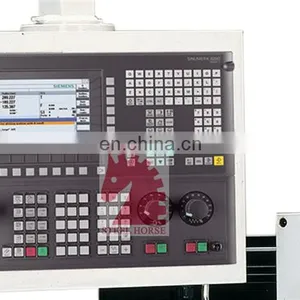

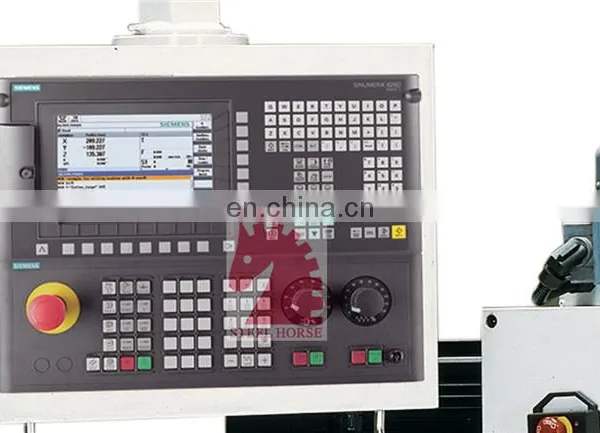

CNC hardware
· control-panel based high-performance CNC Control
· robust front control panel made of magnesium die-casting
· integreated full-size QWERTY keyboard
· 10.4“ TFT color monitor
· maintenance-free design (no buffer battery required)
CNC performance data and functions
· SINUMERIK MDynamics package with Advanced Surface for mold making applications
· tool changing time: ~2 ms (PPU 260/261) /~1 ms (PPU 280/281)
· number of Look Ahead sets: 100 (PPU 260/261) / 150 (PPU 280/281)
· Jerk-limited acceleration
· dynamic feed-forward control
· 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
· linear, circular and helical interpolation
· tapping without compensating chuck, plus thread cutting
· oriented spindle holder
· toggle between inch and metric units
· FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
· 100 adjustable zero offsets
· synchronous actions and quick help function output
CNC technology cycles
· technology cycles for programGUIDE and ShopMill work step programming are available
· large selection of drilling cycles
· large selection of milling cycles for standard geometry
· large selection of position patterns for drilling and milling operations
· High-speed settings for mold making applications
· geometry calculator for free contour input
· machining cycle for contour pockets / contour spigots with isolated contours
Graphic features
· Animated Elements: input help for machining parameters with animated sequences
· graphical online help system, similar to PC system
· graphical CNC simulation with level display
