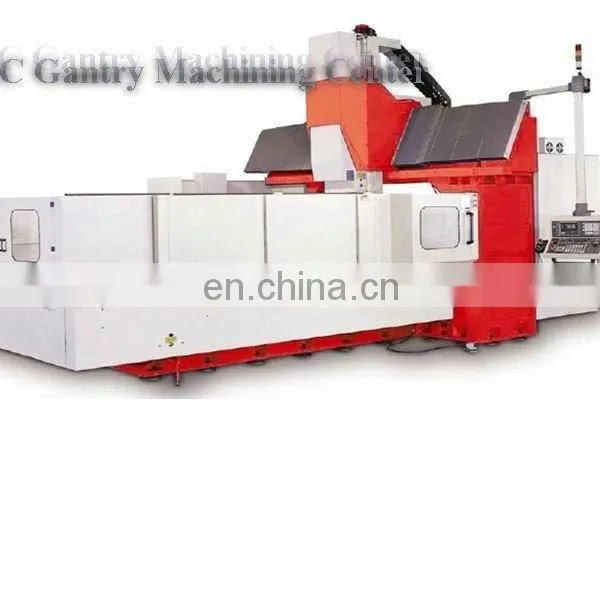

S-V2017 3 axis cnc gantry machining center
Heavy workpiece processing
Internal and external cylindrical and conical surface and plane
Grooving,head face,severance;
Milling and boring,threading,grinding,tapping,etc;
|
UNIT /Model Specifications |
Unit |
S-V3017 |
Table size ( L × W ) |
mm |
3000x1200 |
T-slot (Nos × W × Distance) (b / t slots) |
mm |
22x7x170 |
Max. table load |
kg |
6000 |
Distance from spindle nose to table |
mm |
115~915 |
Distance from spindle center to column |
mm |
439.5 |
Distance between two columns |
mm |
1650 |
X/Y/Z travel |
mm |
3000/1650/800 |
X/Y/Z rapid traverse speed |
m/min |
12 |
Feed rate |
mm/min |
1~8000 |
Positioning accuracy |
mm |
±0.005/300 |
Repeat positioning accuracy |
mm |
±0.003 |
Spindle motor power (continuous/overload) |
kW |
22/26 |
Spindle speed range |
r/min |
40~6000 |
Spindle taper |
|
#50 |
Height of machine |
mm |
5200 |
Machine covers an area of size |
mm |
9000x5500 |
N.W/G.W |
kg |
37000/40000 |
Air pressure requirement |
kgf/cm² |
6.5 |
Current |
KVA |
50 |
Tool magazine |
|
|
S.N |
Name |
Remark |
1 |
Automatic Lubrication system |
|
2 |
Tri-color Alert Lamp |
|
3 |
Portable Control Panel |
|
4 |
Cooling System |
|
5 |
Working Lamp |
|
6 |
Air TAC grease gun |
|
7 |
Tool Kit |
|
8 |
24T Umbrella ATC |
|
9 |
Oil Cooling Machine |
|
10 |
Foundation bolts and pads |
|
Pls send inquiry to me for optioanl accessories and other further information about such gantry cnc machining centers.
