Home > Products > CNC Machining Center > SVW1204 5 axis cnc vertical machining center

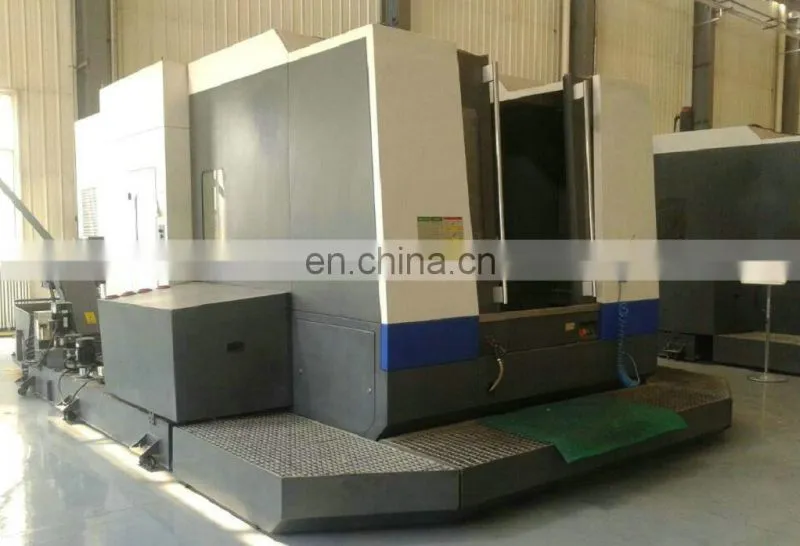

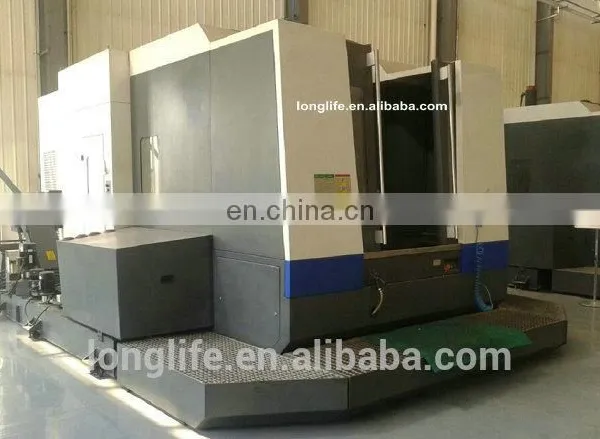

SVW1204 5 axis cnc vertical machining center
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card
Product Details
Brand Name: | LFM | Place of Origin: | Liaoning, China | Model Number: | SVW120 5 axis cnc vertical machining center |
Type: | Vertical | Certification: | CE; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 12 months | Weight: | 20 tons | Dimension(L*W*H): | 5500x3800x3500mm |
Voltage: | Customer's Requirement | Condition: | New | Power(W): | 35kW |
Product Description
SVW1204 5 axis simutaneous cnc vertical machining center:
X, Y, Z, B, C axis
Perform quality control in the whole process
Features standardization
Modular and universalization;
finite element analysis realize optimize design;
Compact structure;
Good chip removal;
Specifications | Unit | Parameter |
mm | 1250×600 | |
T slot (NO. x width x distance) | mm | 5x18x100 |
Max. load capacity | kg | 1000 |
X-axis travel | mm | 1050 |
Y-axis travel | mm | 600 |
Z-axis travel | mm | 600 |
B-axis | ° | 110 |
C-axis | ° | 360 |
Spindle nose to machining table | mm | 150~750 |
Spindle speed range | rpm | 10~8000 |
B-axis speed | rpm | 25 |
C-axis speed | rpm | 25 |
Spindle motor | kW | 11/15 |
Spindle taper |
| BT40 |
Rapid feed speed(X/Y/Z-axis) | m/min | 36/36/24 |
Cutting feed speed | mm/min | 1~10000 |
Tool magazine capacity |
| 24Tools |
Max diameter of tool | mm | 80 |
Max. length of tool | mm | 300 |
Max. weight of tool | kg | 8 |
Max tool dia. (without adjacent tool) | mm | 150 |
Tool change way |
| random |
Tool change time | s | 1.8 |
Positioning accuracy (X/Y/Z-axis) | mm | 0.010/0.010/0.010 |
Positioning accuracy (B/C-axis) |
| ±5″Sec |
Repeatability (X/Y/Z-axis) | mm | 0.006/0.006/0.006 |
Repeatability (B/C-axis) |
| ±2.5″Sec |
Max drilling diameter: | mm | Æ45 |
Max tapping screw diameter |
| M24 |
Milling capability | cm³/min | 250 |
Power capacity: | KV A | 35 |
Air pressure | bar | 6~8 |
Cooling tank capacity | L | 350 |
Machine Dimension | mm | 4600×2490×3200 |
Net weight | kg | 8000 |
S.N. | Item | Note |
1 | SIEMENS840DSL CNC system | GERMANY |
2 | Hand held operating unit | China |
3 | Disc-type tool magazine 24 tools | SY-Taiwan |
4 | X/Y/Z linear rails |
|
5 | Chain-type chip conveyor |
|
6 | Electric cabinet air-conditioner |
|
7 | Automatic lubricating system |
|
8 | Tri-color lamp |
|
9 | Air through spindle |
|
10 | Air curtain protection |
|
11 | Air gun |
|
12 | Work lamp |
|
13 | Random technique document &accessories |
|
14 | Basal installation package |
|
Pls send inquiry to me for optioanl accessories and other further information about such 5 axis cnc vertical machining centers.
