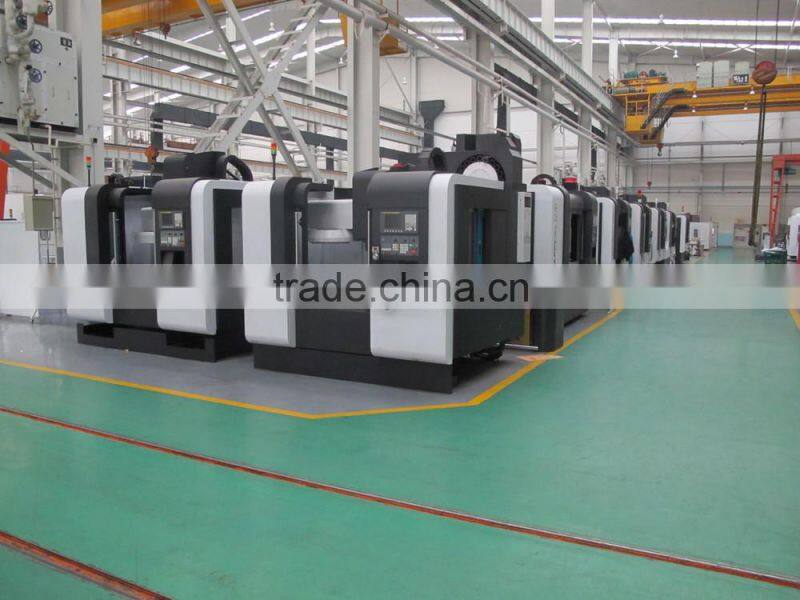

GDM1230 cnc gantry vertical machining center
High Accuracy
All X, Y, Z axes using optical encoder scale technology, forms a closed machining system, which increases the machining accuracy. Highly rigid worktable moves on a machine base made with one piece of casting, which ensures the rigidity of the whole machine. In addition, Finite Element Analysis has been applied in the machine engineering stage to optimize the structure of the machine and enhance the rigidity.
Main data |
|
unit |
GDM1220 |
|
Work table |
Table size |
mm |
1250X2000 |
|
Distance between 2 columns |
mm |
1450 |
||
Max. load |
kg |
3000 |
||
T-slot width |
mm |
22H12 |
||
Machining range |
X-axis travel |
mm |
2200 |
|
Y-axis travel |
mm |
1250 |
||
Z-axis travel |
mm |
750 |
||
Distance from spindle nose to table surface |
Min |
mm |
200 |
|
Max. |
mm |
950 |
||
spindle |
taper (7:24) |
|
BT50 |
|
Inner dia. of front bearing |
mm |
Φ100 |
||
Lubrication type |
|
grease |
||
Speed-change |
|
2 steps/infinite |
||
ratio |
|
1:1/1:4 |
||
Speed range |
r/min |
40~6000 |
||
Motor power |
Min. |
kW |
18.5 |
|
Max. |
kW |
22 |
||
Max. torque |
Min. |
N·m |
470 |
|
Max. |
N·m |
560 |
||
Feed |
Cutting feed speed range |
mm/min |
1~10000 |
|
Fast speed |
X-axis |
m/min |
20 |
|
Y-axis |
m/min |
20 |
||
Z-axis |
m/min |
16 |
||
ATC |
Tool magazine capacity |
pieces |
32,40,50,60 |
|
Max. tool length |
mm |
400 |
||
Max. tool weight |
kg |
25 |
||
Tools chooseing |
|
random |
||
Max. tool dia. |
pieces |
Φ125 |
||
pieces |
Φ250 |
|||
