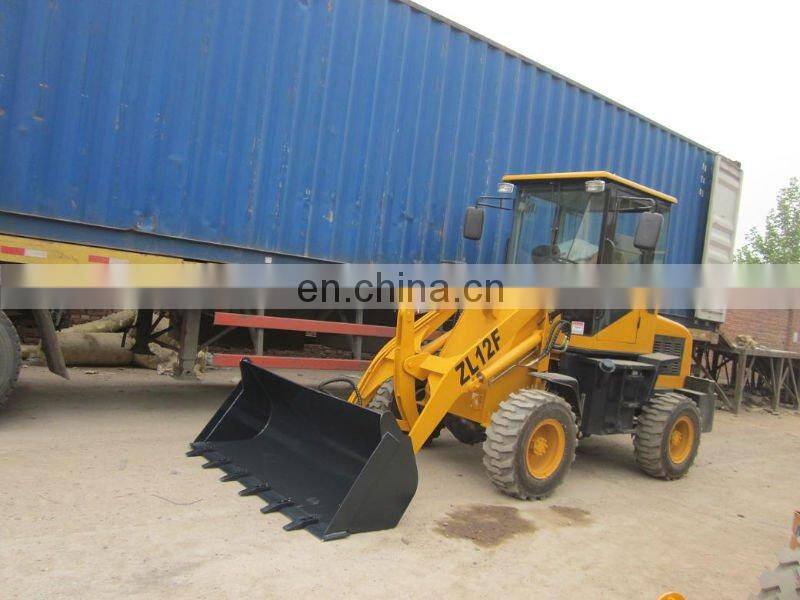

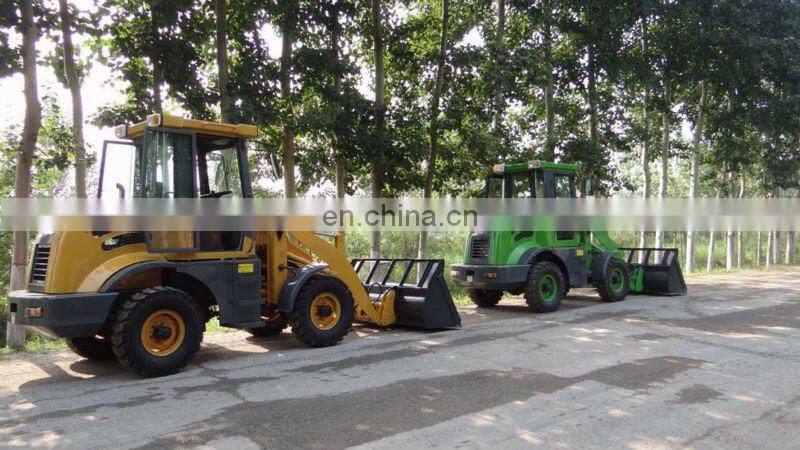

Cool! ZL12F Mini Shovel Machine Loader

Mini Wheel Loader ZL12F with CE

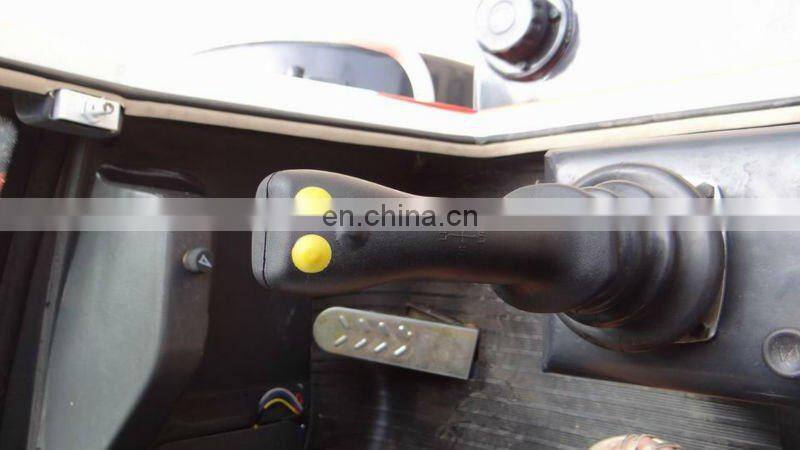

Equip with :3-valve pilot control,Euro III engine,adjustable steering wheel,quick hitch,

 luxury seat,new cabin with warm and new engine hood,12-16.5

Features

Fully hydraulic steering,power shift hydraulic operated working device.The full hydraulic steering system is smooth in operation, stable and reliable in performance

Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.

High boom lifting capacity for heavy duty handing jobs.

The bucket is equipped with automatic leveling device, so that the operation is easier.

Big tractive force and traction device at the rear end, which meet more needs.

Specifications

1.0 Engine Details

(1) Model: Changcai 4L68

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 37W

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 269g/kw.h

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-125

(2) System Pressure: 10MPa

(3) Steering Cylinder: Φ76x Φ63x180

3.0 Bucket

(1) Bucket Capacity: 0.5 m3

(2) Bucket width: 1400mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 32KN

(5) Rated Load: 1200kg

(6) Operating Weight: 3200kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4200mm

(2) Overall Height

(a) Ground to Cab Top: 2500mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(c) Dumping Height: 2545mm

(3) Overall Width: 1685mm

5.0 Operating Specifications

(1) Drive Means: Four-wheel drive

(2) Min Turning Radius: 4200mm

(3) Driving System: mechanical

(4) Dumping Height: 2600mm

(5) Min Base to the ground: 240mm

(6) Time of raise: 3.05sec.

(7) Hydraulic cycle time: 9sec.

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tire

(1) Model: 1200-16

(2) Width: 20cm

(3) Diameter: 80cm

8.0 Wheelbase: 2040mm

9.0 Track: 1320mm

For more about our producrs pls send us inquiry now

Optional Accesssory
