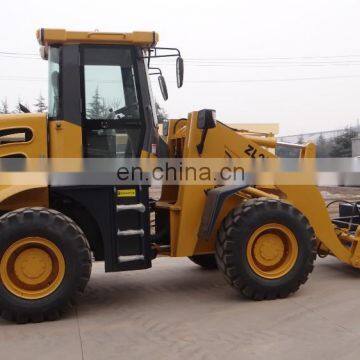

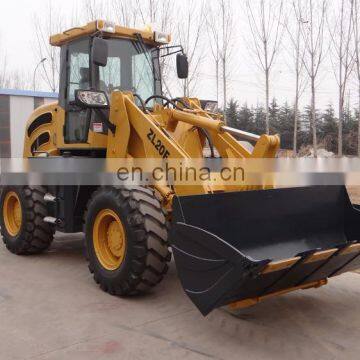

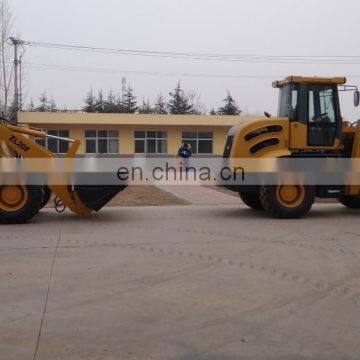

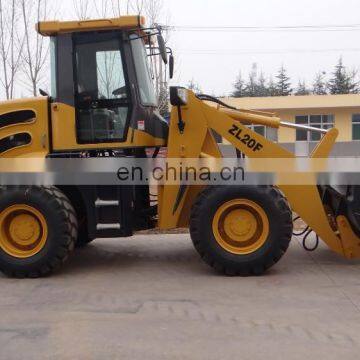

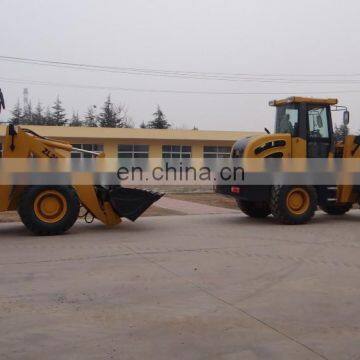

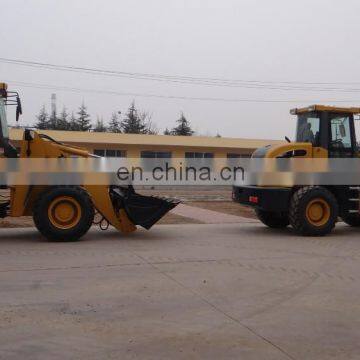

Multifunctional construction equipment 926 with snow blower
1)Dumping height:3100mm
2)Loader Bucket :1.2CBM
3)17/16-20 Tire
4)Joystick and Pilot control
Wheel Loader CS920 WITH CE
Features 2.0 ton heavy machine tractor loader
*Fully hydraulic steering,power shift hydraulic operated working device.
*The full hydraulic steering system is smooth in operation, stable and reliable in performance
*Optional attachments like pallet fork,grass fork,snow blade and snow buckets available to all materials.
*High boom lifting capacity for heavy duty handing jobs.
*The bucket is equipped with automatic leveling device, so that the operation is easier.
*Big tractive force and traction device at the rear end, which meet more needs.
Detailed Specification:
Performance |
1 |
rated loading |
2000kg |
2 |
overall weight |
5800kg |
|
3 |
rated bucket capacity |
1.2m3 |
|
4 |
maximum tractive force |
54KN |
|
5 |
maximum breakout force |
45.4KN |
|
6 |
maximum grade ability |
30 |
|
7 |
maximum dump height |
3000mm |
|
8 |
maximum dump reach |
752mm |
|
9 |
overall dimension (L×W×H) |
5600×2100×2850mm |
|
10 |
minimum turning radius |
5251mm |
|
Engine |
11 |
model |
4105 |
12 |
type |
Vertical, in-line, water cooled, 4-stroke diesel engine |
|
13 |
No. of cylinder-bore/stroke |
4105×125mm |
|
14 |
rated power |
58kw2200r/min |
|
15 |
maximum torque |
270N.m |
|
16 |
min fuel-consume ratio |
≤243g/kw.h |
|
Transmission system |
17 |
torque converter |
YJ280A |
18 |
gearbox mode |
Countershaft power-shift |
|
19 |
gear shift |
2 forward shift 2 reverse shift |
|
20 |
maximum speed |
24km/h |
|
Drive axles |
21 |
main reducing spiral
|
Circular Arc Bevel gear, single stage |
22 |
decelerating mode |
Single stage planetary type |
|
23 |
wheel base (mm) |
2400mm |
|
24 |
wheel tread |
1640mm |
|
25 |
ground clearance |
310mm |
|
Hydraulic system |
26 |
system working pressure |
16MPa |
27 |
boom lifting time |
4.8s±0.2s |
|
28 |
total time |
9.2s±0.5s |
|
29 |
fuel tank capacity |
80L |
|
30 |
function of leveling automatically |
yes |
|
Brake system |
31 |
service brake |
air assist disc brake on 4 wheels |
32 |
parking brake |
flexible shaft operated external drum |
|
Tyre |
33 |
type specification |
16/7020 |
34 |
front tyre pressure |
0.22Mpa |
|
35 |
rear tyre pressure |
0.18Mpa |
| Why choose us? |
Main Features of WEIFANG Map Power :
1. more than 10 years production experience
2. own a super technical team, can finish some adjustment to adapt the using environment and the market
3. production capacity: 300 units/month
4. our site dumper are exported to many developed countries, and satisfied the customers
Attachments avaliable
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
