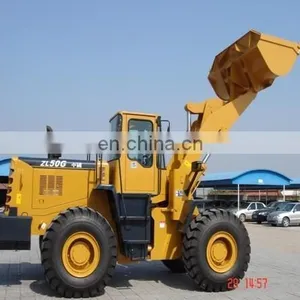

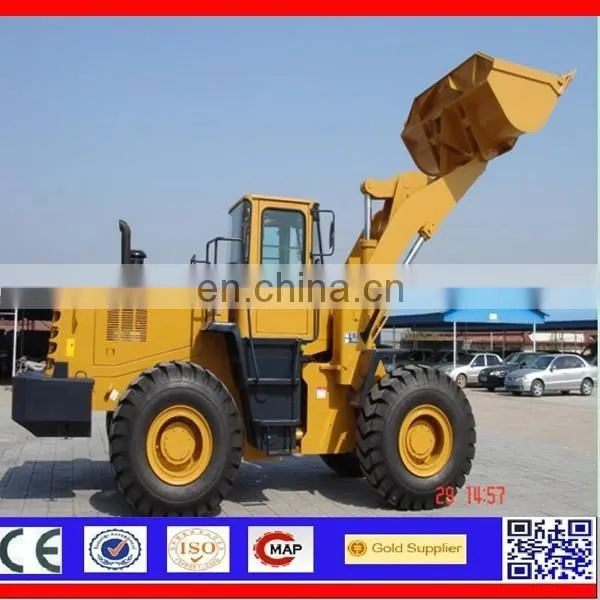

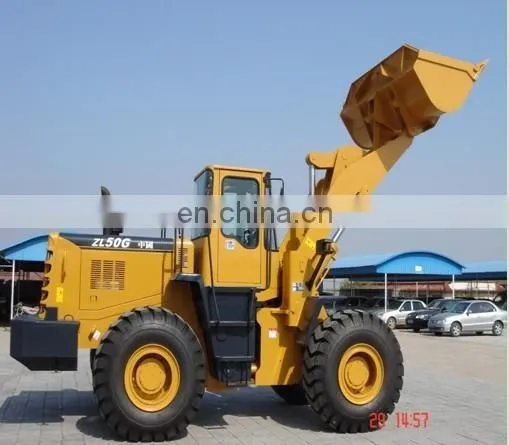

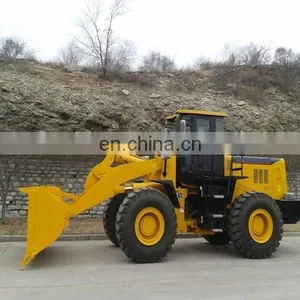

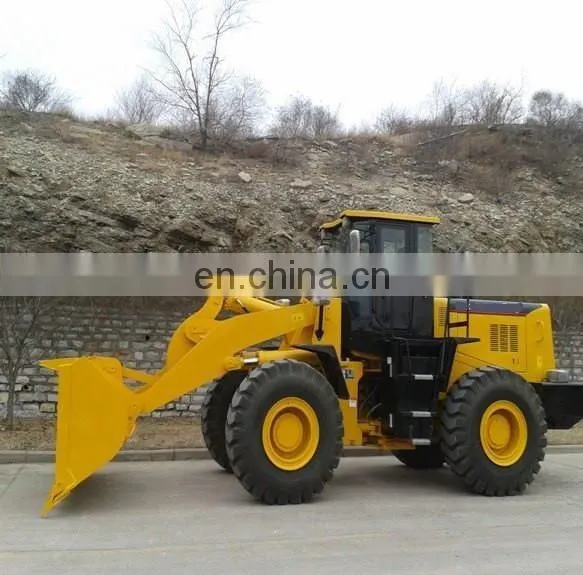

5.0ton wheel loader ZL50
*ZF copy Transmission
*Rated loading weight: 5,000kg
*Rated capacity:3.0
WHEEL LOADER 5TON WITH DEUTZ engine optional
Wheel loader specification
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Performance | |
Overall dimension(mm) |
7,836 x 3,010 x 3,300mm |
Rated loading weight(kg) |
5,000kg |
Overall weight |
17,100kg |
Rated bucket capacity(m3) |
3.0 |
Max breakout force(kn) |
172.6 |
Max. drawing force(kn) |
151.9 |
Maximum dump height |
3150-3550mm |
Max dump reach |
1300mm |
Min turnning radius |
7200mm |
Enigine | |
Engine Model |
WD10G220E22 |
Engine type |
inline, water cooled, direct injection |
Rated Power(kw) |
162 |
Rated Speed |
2200r/min |
Min.fuel consumption |
214g/kw.h |
Transmission system | |
Model of torque device pattern |
YJ375 |
Gearbox mode |
Power shift normally engaged straight gear |
Gear shift |
4 forward shift 4 reverse |
Max. travel speed |
38km/h |
Drive axles | |
Main reducing spiral |
Bevel gear grade 1 reduction |
Decelerating mode |
Planerary reduction,grade 1 |
Wheel base |
3200mm |
Tread |
2250mm |
Min ground clearance(mm) |
300 |
Tires |
23.5-25 |
Front tire pressure |
392KPa |
Rear tire pressure |
343KPa |
Steering angle(each direction) |
35+1 |
Fuel capacity |
320L |
Hydraulic system | |
System working pressure |
18Mpa |
Boom lifting time |
5.95+/-0.2s |
Total time |
1.091+/-0.5s |
Fuel tank capacity |
300L |
Function of leveling automatically |
yes |
Brake system | |
Packing brake |
Manual parking brake |
Service brake system |
air assisted oil disc tire four wheel brake |

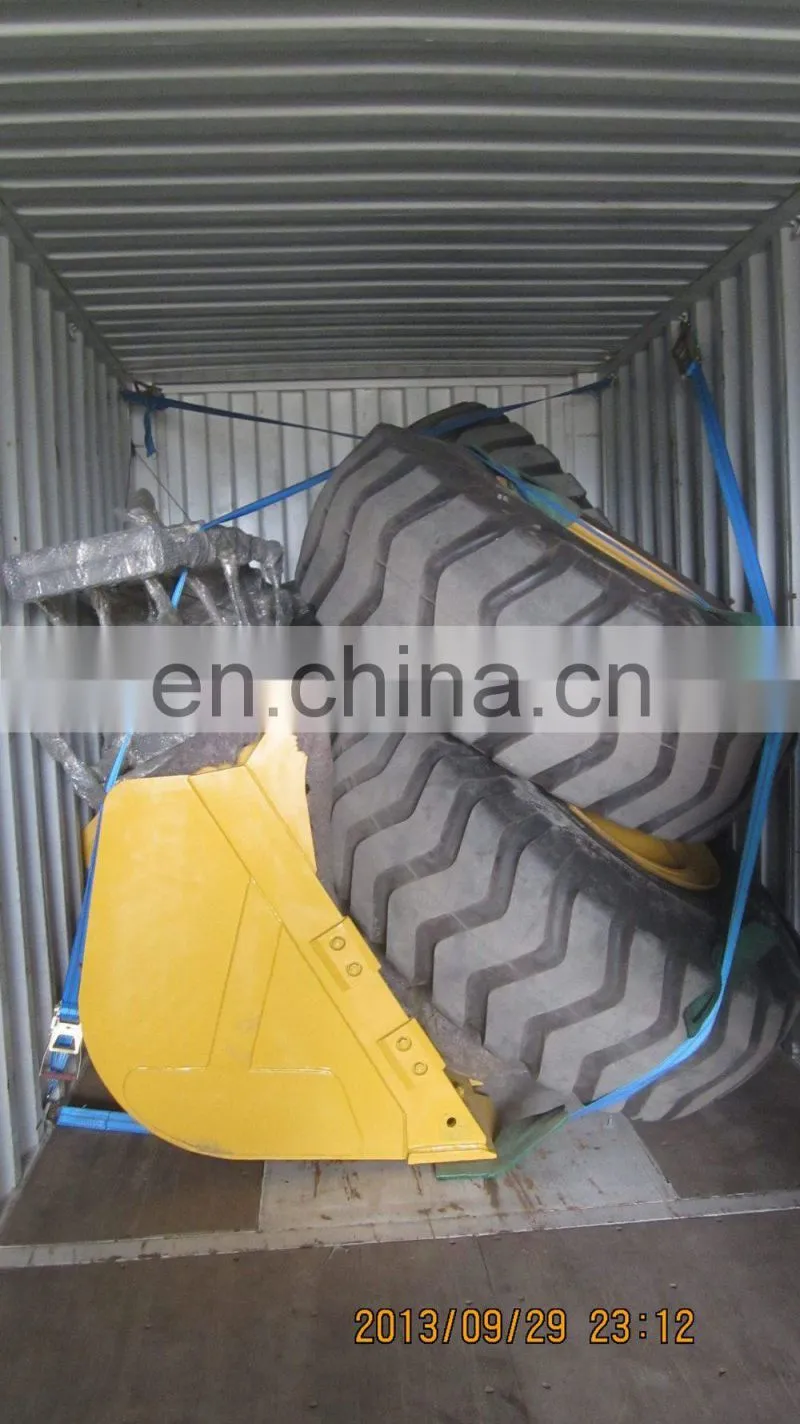

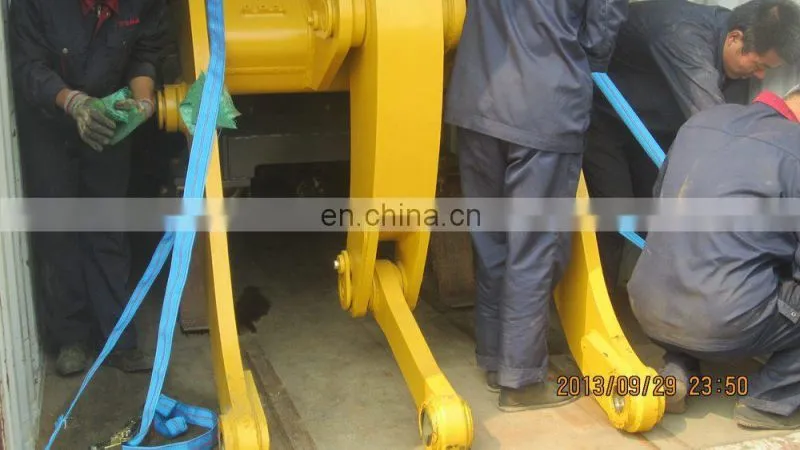

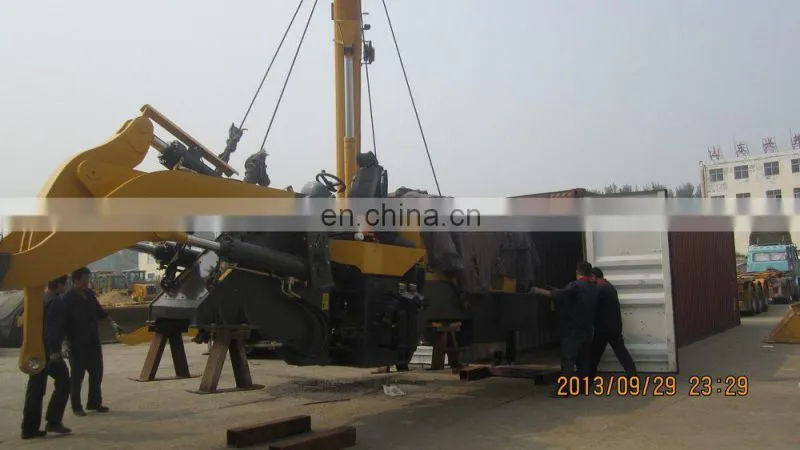

Shipment: |
1 unit in 40'HQ |
