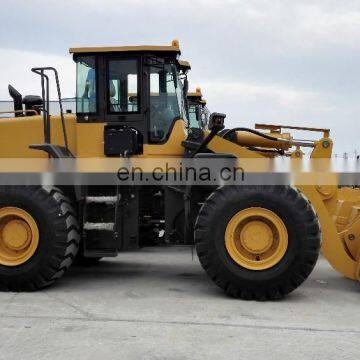

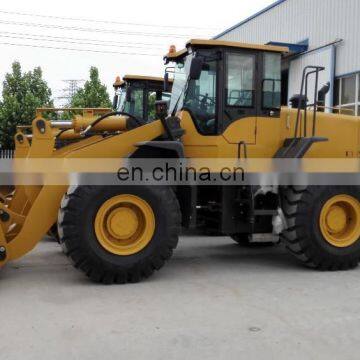

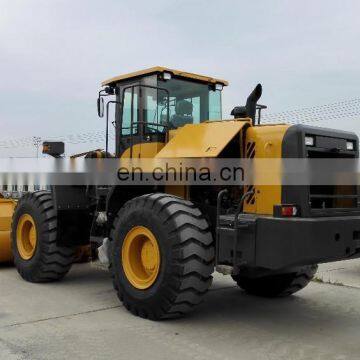

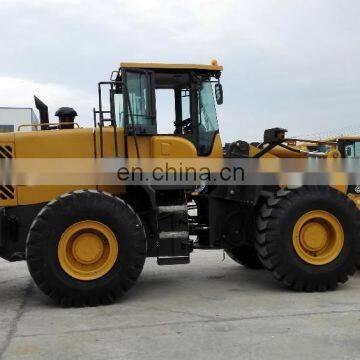

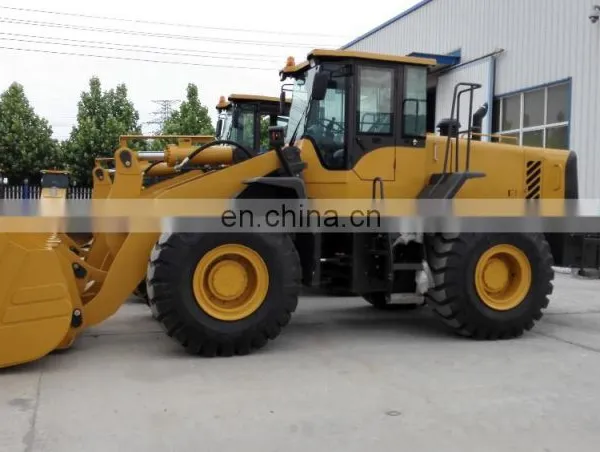

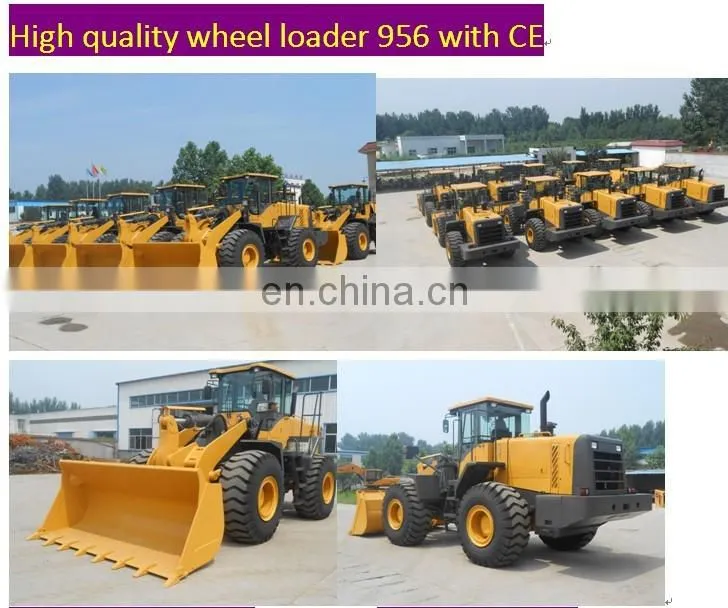

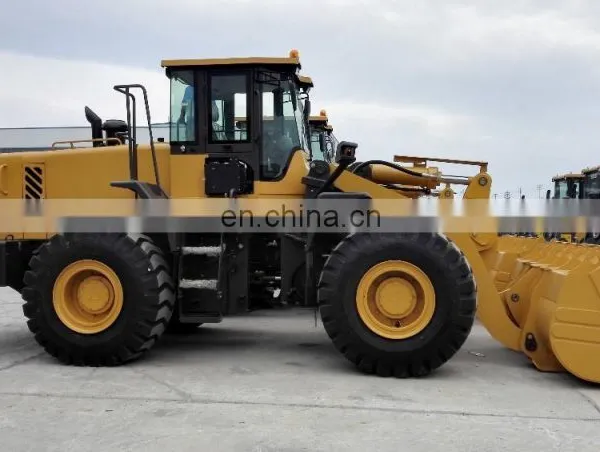

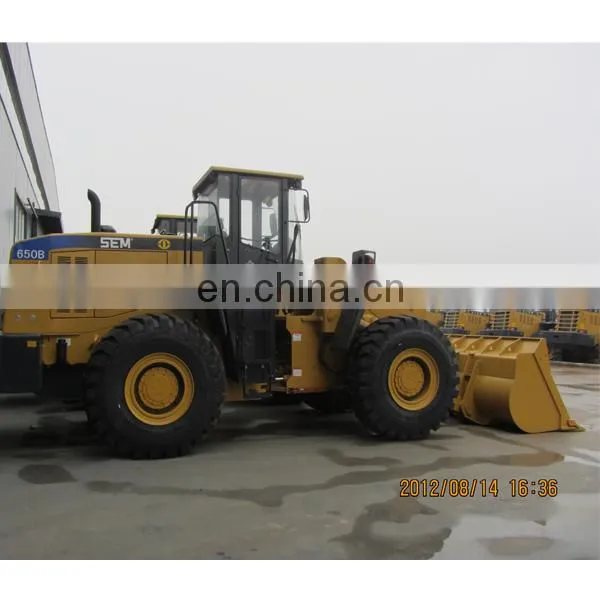

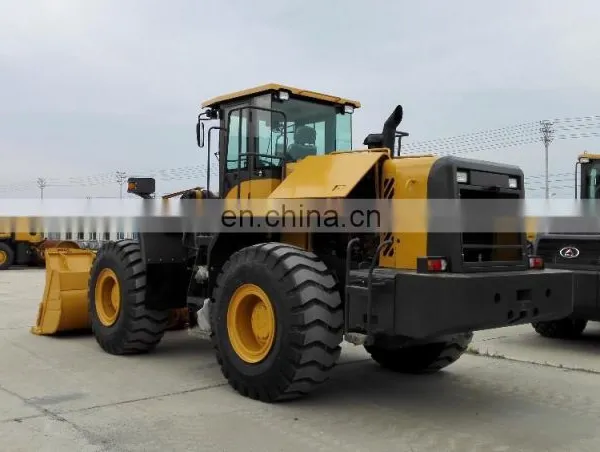

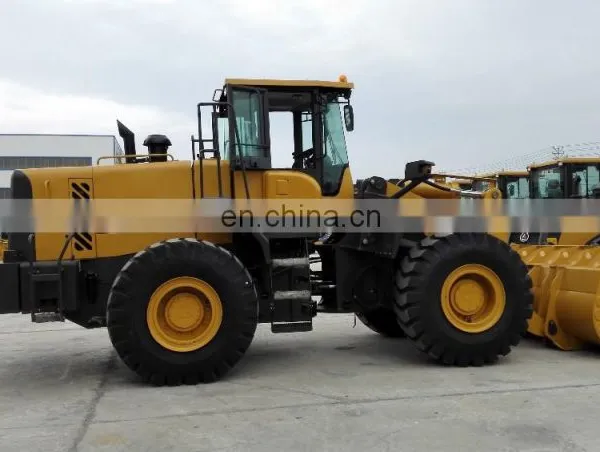

5.0ton front end loader, famous brand loader, high performance loader
*Rated capacity:3.0
*WHEEL LOADER 5TON WITH DEUTZ engine optional
Wheel loader usages:
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Qualifications
CE,ISO9001 CERTIFICATION,BV ASSESTMENT
specification
Item |
Specification |
Item |
Specification |
Overall working weight |
17250kg |
Transmission system(Hangzhou Advance) |
|
Rated capacity |
2.7cbm |
Torque converter type |
power shift |
Max tractive force |
160KN |
Drive Type |
Four-wheel drive |
Max breakout force |
180KN |
Tyre |
23.5/25 |
Tipping Load |
100KN |
Front wheel air pressure |
0.39±0.01Mpa |
Min ground clearance |
430mm |
Rear wheel air pressure |
0.33±0.01Mpa |
Max grade ability |
30° |
Service Brake |
Gas cap oil caliper disc type |
Max dump height |
3180mm |
Braking air pressure |
0.784Mpa |
Max dump distance |
1090mm |
Parking Braking |
Manual Caliper |
Dimension |
8040*3060*3382mm |
Steering System |
|
Min. turning radius (Outside of front wheel) |
6036mm |
type |
Articulated load-sensing hydraulic steering system |
|
Min. turning radius (Outside of the bucket) |
6746mm |
Steering Angle |
38 |
Tread |
2250 |
Steering system working pressure |
16Mpa |
Wheel base |
3250 |
Working Device |
|
No. of Axles |
2 |
Type |
Hydraulic Prior control |

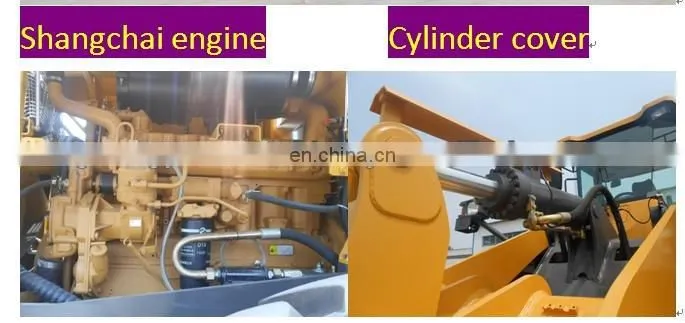

Engine(Shangchai) |
System working pressure |
18Mpa |
|
Model |
C6121ZG50 |
Lifting time |
6.4 |
Type |
Inline ,water cooling ,dry cylinder, direct injection |
Falling time |
4.2 |
Number of cylinder-bore/stroke |
6-126*130mm |
Discharging time |
1.1 |
Max torque |
908N.m |
Total time |
11.3 |
Rated power |
162kw |
Fueling Volume |
|
Rated speed |
2200r/min |
Fuel |
300L |
NO. of Cylinder |
6 |
Hydraulic oil |
210L |
Displacement |
9726ml |
Axle |
2X27L |
Cylinder Bore X Stroke |
126*130mm |
Engine |
20L |
Min fuel consumption |
215g/Kw.h |
Gearbox |
45L |
|
|
Braking System |
4L |
| Why choose us? |
1. More than 200 workers.
2. With the occupying area of 2500 square meters.
3. More than 8 years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.

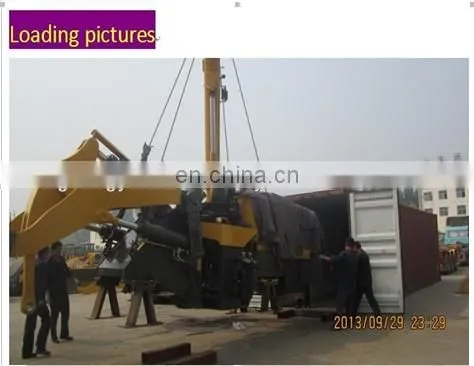

conveyance/Shipment qty
Packing:Nude packing
Shipping:1SETS IN 40HQ container
A: Yes, we are real factory supplier for over 6 years, own a super technical team to serve adjusting design for customers
2. How about the products range do you produce ?
We are specilized in producing wheel loaders cover 0.6ton to 5tons. Model: ZL06, ZL08, D25, ZL10, ZL12, ZL15, ZL16, ZL20, ZL30, ZL50, producing site dumpers with 2tons, 3tons, 4tons, 5tons, 7tons and 10tons load capacity.
3. Can you supply site dumpers with adjustable design to adapt customers' using requirment ?
Sure, we have strong technology team, are able to do adjustment design for customers according to users' requirment and the using environment, like to change the transmission system, tires, bucket dimension, operation plate, cabin and so on.
4. Which brand engine do you have for site dumpers?
We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine / Deutz diesel engine and so on optional.
5. What advantages of your products and company?
1) adjusting design are available from us, to adapt the market and using environment better, and help customers gain more competitions in your market.
2) ROPS cabin, double-layer thick cab, more strong and resistant

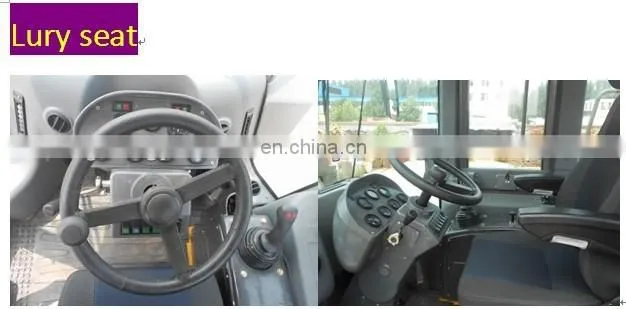

3) adjusting steering wheel and adjusting seat, with fan, radio, heater and so on, more comforable drive environment for driver
4) All of our dumpers passed the strict test before sale to customers
5) More easy wear spare parts will be attached with the wheel loader for free
6) We serve 1 year warranty for customers, supply after-sale service for wheel loaders' whole life
7) we can do urgent order for customers, with the same quality the same
