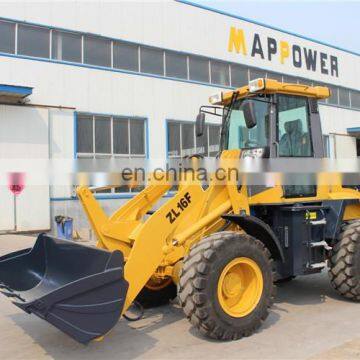

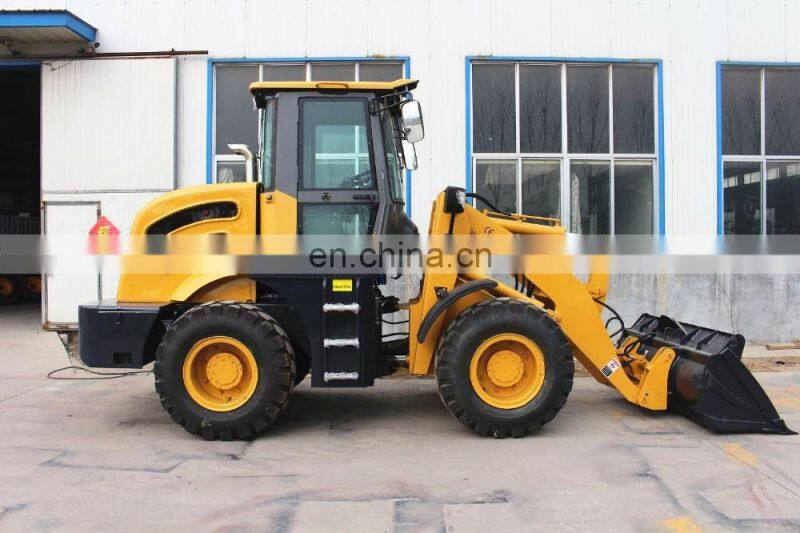

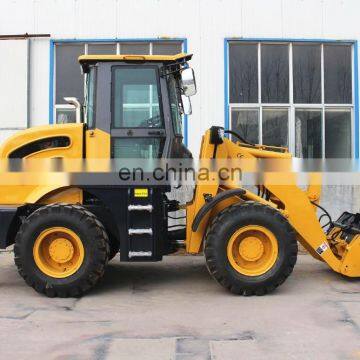

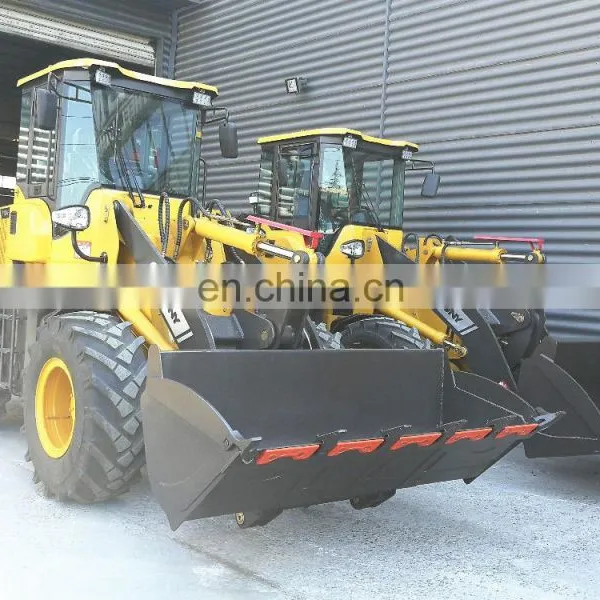

Hydraulic drive construction equipment wheel loader ZL16F
*Loader bucket:0.8m3
*Hydraulic quick hitch
*A/C cabin
*Pilot control
Usage
Wheel loader ZL16F is used in coal mining and other operating environments, its engine, starter, exhaust system and so on all have an explosion-proof function.
The wheel loader is used for loading or transporting sands, sandstone, coal residue, and so on for road construction, environmental sanitation, and the small and medium-sized civil engineering, or in the station, warehouses and other places. It can be combined with auto-trucks of 3-5 tons to load and unload gods, and can conduct bulldozing, digging, hoisting and other operations.
Performance Features
- The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
- The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving.)The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
- The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
- The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
- The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.

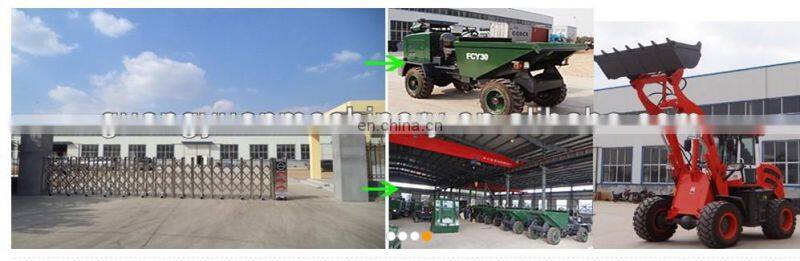

Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Technical Data:
Wheel loader model |
ZL16F |
|
Engine Details |
Model |
Weichaihuafeng 4102 |
Engine Type |
In-line arrangement, Water cooled,4 cycle diesel engine |
|
Rated Power |
47kw |
|
Rated Speed |
2200rpm |
|
Bucket |
Bucket Capacity |
0.8m³ |
Bucket Type |
Heavy-duty bolt on teeth |
|
Max.Breakout Force |
32KN |
|
Rated Load Weight |
1600kg |
|
Operating Weight |
3800kg |
|
Overall Dimensions |
Overall Length |
5500mm |
Overall Height |
2700mm |
|
Overall Width |
1650mm |
|
Max. Discharge Height |
2750mm |
|
Wheel Base |
2095mm |
|
Tread |
1360mm |
|
Operating |
Transmission System |
Hydraulic converter |
Steering system |
Articulated Frame with Hydraulic |
|
Min. Turning Radius |
3800mm |
|
Transmission |
Hydraulic convertor |
|
Brake System |
Service Brake |
Four wheel Hydraulic spread-shoed |
Parking Brake |
Hand Operated |
|
Tire |
14.90-16 |
|
Attachments avaliable
| Why choose us? |
1. More than 200 workers.
2. With the occupying area of 2500 square meters.
3. More than 8 years experiences in the industry of construction machine and agricutural machine.
4. Competitive price and high quality.
5. One hour reaches Qingdao port.
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
1set in 20GP,3SETS IN 40HQ container
