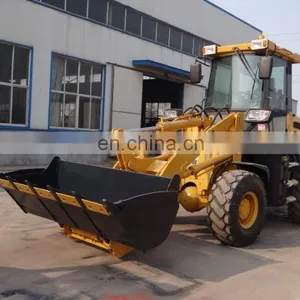

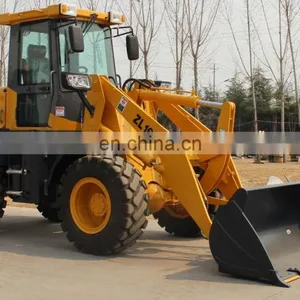

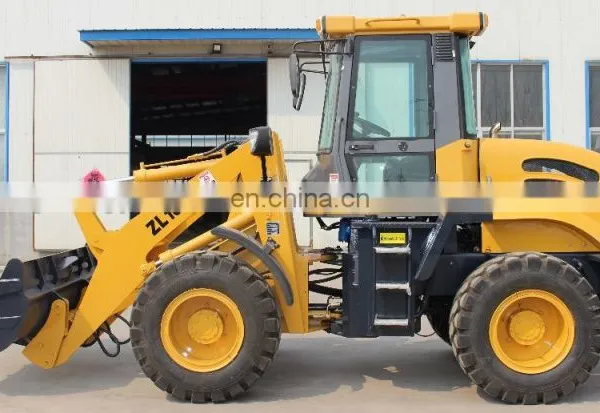

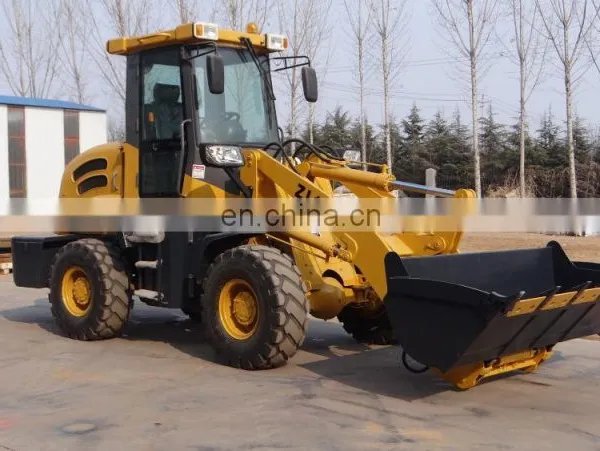

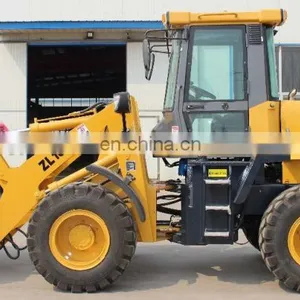

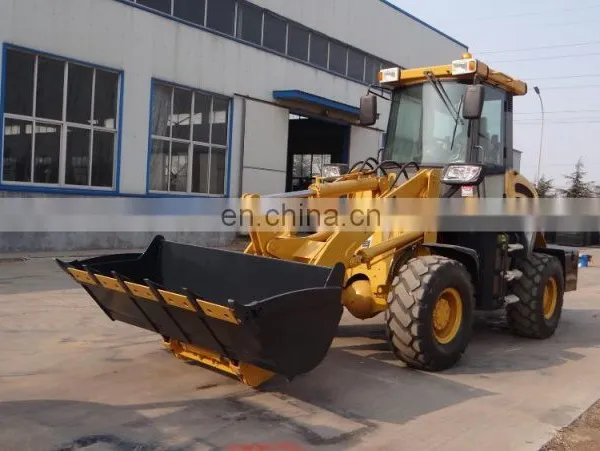

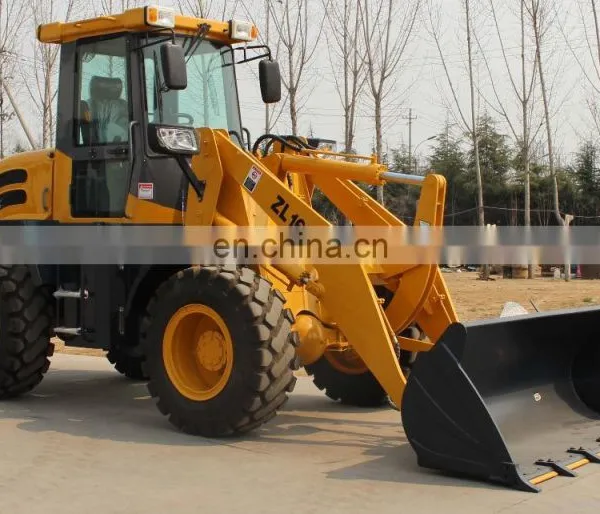

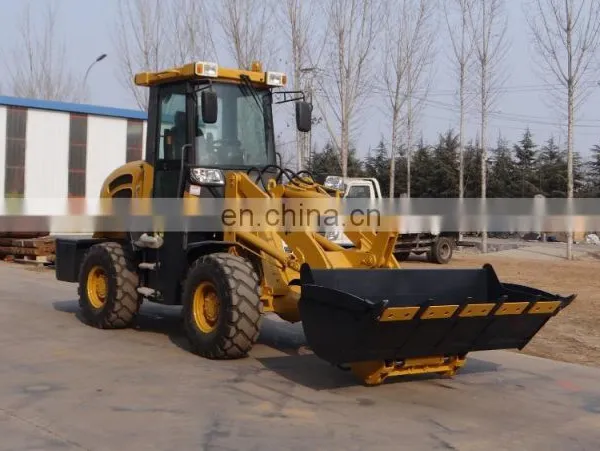

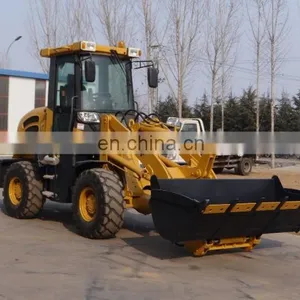

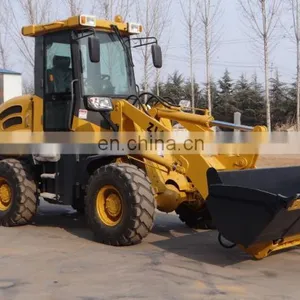

1.6ton Front end wheel loader ZL16F
- 500 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Type: | Front Loader |
Certification: | ce, CE | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12months |
Condition: | New | Dimension(Long * Breadth * High): | 5633*2121*2712 | Moving Type: | Wheel Loader |
Rated Load: | 1.6Ton |
Product Description
Weifang Map Power is real factory to produce all kinds of wheel loaders, such as: D25,ZL08 ZL10 ZL12,ZL16, ZL20, ZL30, ZL16 Long-armed Loader, ZL50GI Loader,Big Ore Loader, Coal Loader, Long-armed Loader, High-efficiency Loader.
Front end wheel loader ZL16F
*Loader bucket:0.8m3
*Hydraulic quick hitch
*A/C cabin
*Pilot control
1.Wheel loader ZL16F is used in coal mining and other operating environments, its engine, starter, exhaust system and so on all have an explosion-proof function.
2.The wheel loader is used for loading or transporting sands, sandstone, coal residue, and so on for road construction, environmental sanitation, and the small and medium-sized civil engineering, or in the station, warehouses and other places. It can be combined with auto-trucks of 3-5 tons to load and unload gods, and can conduct bulldozing, digging, hoisting and other operations.
Performance Features
- The wheel loader uses a hydro-mechanical transmission which can make full use of engine power and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, facilitates the operation and achieves higher economical and production efficiency.
- The wheel loader uses a central articulated frame and load sensing hydraulic steering gear. The machine can achieve a short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving.)The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
- The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good traffic ability and larger traction.
- The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
- The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easy adjustment. The machine offers the driver a comfortable drive and wide view.
Technical Data:
Wheel loader model | ZL16F | |
Engine Details | Model | Weichaihuafeng 4102 |
Engine Type | In-line arrangement, Water cooled,4 cycle diesel engine | |
Rated Power | 47kw | |
Rated Speed | 2200rpm | |
Bucket | Bucket Capacity | 0.8m³ |
Bucket Type | Heavy-duty bolt on teeth | |
Max.Breakout Force | 32KN | |
Rated Load Weight | 1600kg | |
Operating Weight | 3800kg | |
Overall Dimensions | Overall Length | 5500mm |
Overall Height | 2700mm | |
Overall Width | 1650mm | |
Max. Discharge Height | 2750mm | |
Wheel Base | 2095mm | |
Tread | 1360mm | |
Operating | Transmission System | Hydraulic converter |
Steering system | Articulated Frame with Hydraulic | |
Min. Turning Radius | 3800mm | |
Transmission | Hydraulic convertor | |
Brake System | Service Brake | Four wheel Hydraulic spread-shoed |
Parking Brake | Hand Operated | |
Tire | 14.90-16 |
Warranty and payment term
1) Payment terms: 30% T/T deposit,balance before shipment.
2) Delivery time: 25-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Company Contact Information
Contact :tony
| Company Name: | Weifang Map Import & Export Co., Ltd. |
| Operational Address: | Room 1-2-2007, No. 8580, Dongfeng East Street, Kuiwen Dist., Weifang, Shandong, China |
| Telephone: | 0086-536-8502890 |
| Website: | |
| Website on : | |
| Store: | /store/904969 |
Packing and shippment |
Packing:
1set in 20GP,3SETS IN 40HQ container
1. Is the loader with pre heat engine?
RE: YES
2. Is the loader with 3 way or 4 way joystick?

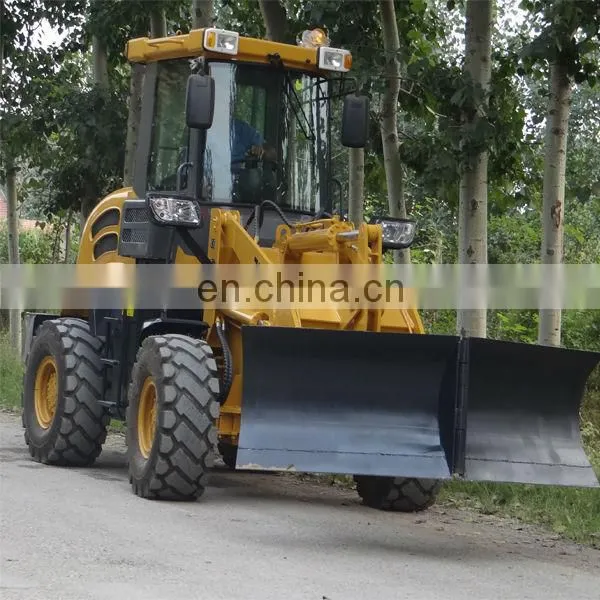

Re: Both 3 ways and 4 ways optional. 3ways usually for pallet fork, 4 ways usually for V-snow blade, grass fork
3. How long is the production period?
Re:20 days after receive the deposit.
4.How to arrange sea shipping?
Re:We can help to book the sea shipments.
5.What's the warranty?
Re:1 year or 1200 working hours which comes first.
6.- supported standards for EU (like CE, fuel emission etc)
Europe need CE certificate and EURO 3 emission some countries.
7.SPARE PARTS LIST
Refer to my company detailed parts photos and prices list
8.Packing quantity:one unit under 2 tons packed in one 20’ container
One high cube container can pack three unit about the type 1 ton and 1.2 ton. packing two unit about the type 1.6ton and 2.0 ton. packing four unit about 0.6 ton. packing one unit about 3.0 and 5.0 tons
9.transmission : we use Torque converter in loader all type above 1.2 ton
10.axle: All type under 1.2 ton are Isuzu axle
All types above 1.6 ton are Hub reduction axle
11.brake system: All types under 1.2 ton are Drum brake
All types above 1.6 ton are Disc brake
