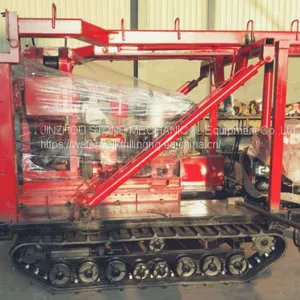

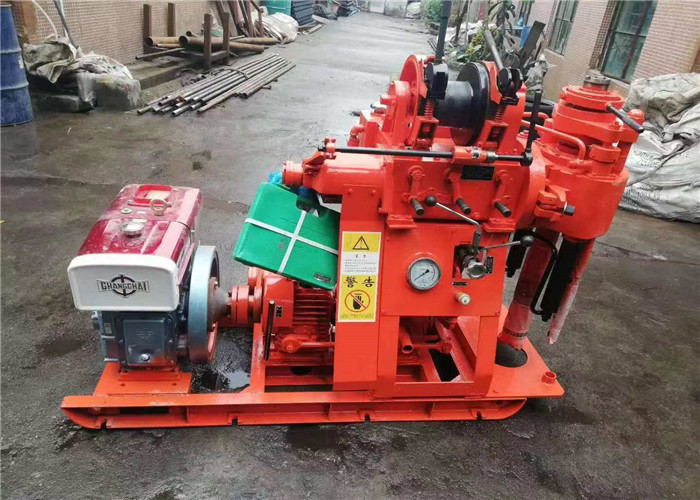

Advance Quality ST200 Red Color Drilling Machine For Water Well Core Drilling Rig
Quick Description of The water well drilling rig
1. Adopts new type of hydraulic technology, supporting high torque hydraulic motor rotation and large diameter
2. Hydraulic cylinder to promote, a factory engine for hydraulic system of powered, two stage air filter and connected with compressed air inlet design and prolong the service life of the diesel engine.
3. Unique pump set design to facilitate maintenance, reduce maintenance costs.
4. Centralized control of the hydraulic control table, easy to operate.
5. The series of drilling rig used excavator crawler chassis, off-road performance is strong.
6. Independent module design, can make drilling rig installed on the truck, increase its maneuverability.
Application of water well drilling rig
1. Used for geological general investigation and exploration, road and tall building foundation exploration
2. Kinds of hole in concrete structure, river levees,
3. Subgrade grouting hole, drilling and direct grouting, civil wells and earth temperature central air-conditioner, ect.
Specification for Water well drilling rig
| Unity machine parameter | |
| Drilling depth | 200m |
| Max. open hloe caliber | 300mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1×0.9×1.3m |
| Spindle | |
| Spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power | |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
Feature Advantage
1. FACTORY DIRECT PRICE.
2. NICE QUALITY.
3. QUICK SHIPPING WITHIN 7 DAYS.
4. MOQ , 1 SET OK . SMALL ORDER WELCOME.
5. ONLINE PAYMENT.
6. SUPPORT 7 DAYS REFUND.
7. AFTER SALES SERVICES 24/7 ON LINE
