ST200 Crawler Self Propelled Mining Drill Rig Machine For Mineral Exploration
US$ 3200 - 5600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SHITAN
Place of Origin:
China
Model Number:
TT330
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days
Related Products
-
ST200 Red Color Portable Well Drilling Rig , Water Well Drilling EquipmentUS$ 4200 - 4800MOQ: 1 Set -
High Efficiency Portable Well Drilling Rig , XY-2B Hydraulic Borehole Drilling MachineUS$ 3000 - 8000MOQ: 1 Set
-
High Speed Core Drill Rig XY-3 2500*900 *1800mm Dimension 600m Drilling DepthUS$ 3000 - 8000MOQ: 1 Set
-
Easy Operate Horizontal Directional Drilling Rig For Rock FormationsUS$ 3000 - 8000MOQ: 1 Set
-
400m Depth Geological Drilling Rig Machine for Geological Investigation Sample CollectionUS$ 4800 - 6800MOQ: 1 Set
Brand Name
SHITAN
Place of Origin
China
Model Number
TT330
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

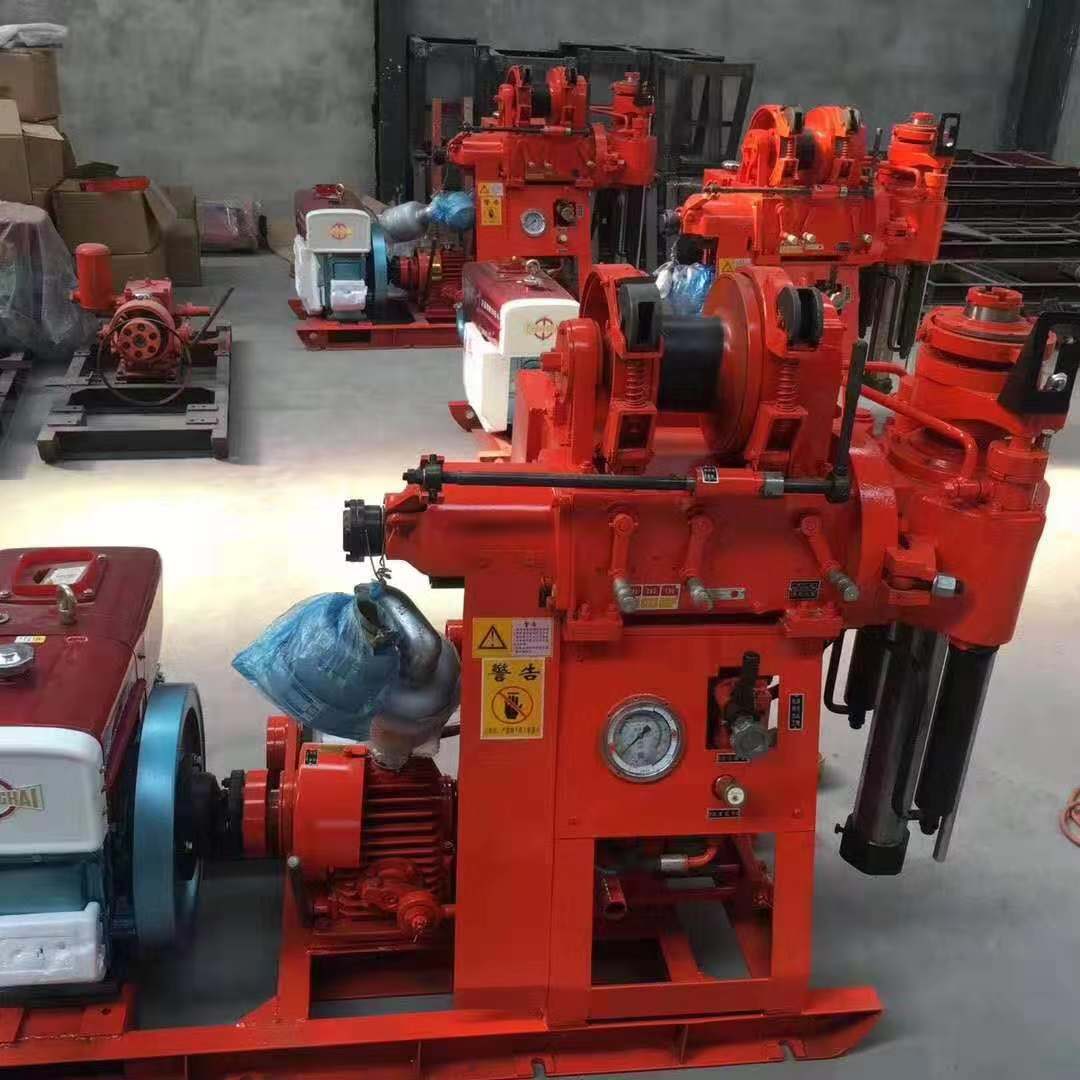

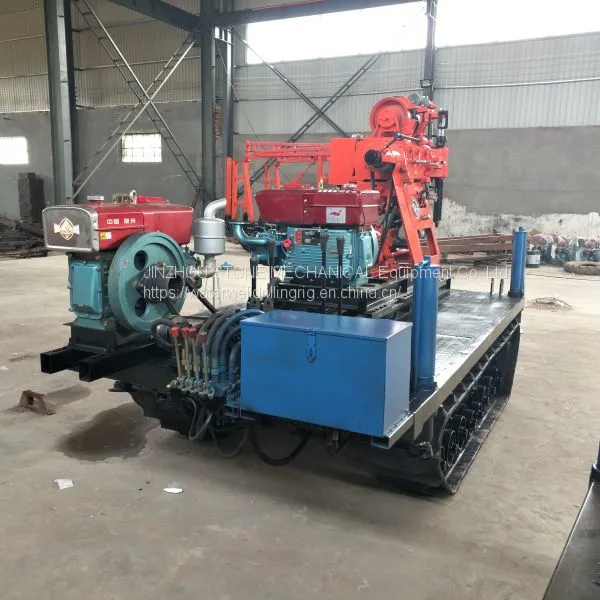

ST200 crawler self propelled mining drill rig Machine for Mineral exploration
Technical Parameter
| ST-200 Type | |||
| Drill | Swivel Head | ||
|
Drilling depth |
Max.200m |
Spindle speed |
(4-speed) 115 230 505 1010r/m |
|
Hole diameter |
Max.300m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.2Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 2000r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 20KN | Model(diesel engine | ZS1115 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 16.2KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1730*860*1360mm | ||
Advantage of mining drill rig Machine
| ★ Hydraulic feeding mechanism can improve drilling efficient,reducing labor work |
| ★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable |
| ★ Equipped with hole bottom pressure indicator, you can know the situation inside the hole |
| ★ Handle centered ,convenient operation |
| ★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas. |
| ★ Adopting large drive pipe,double guide rod, increase the steady |
| Diesel engine or Electrical motor. |
