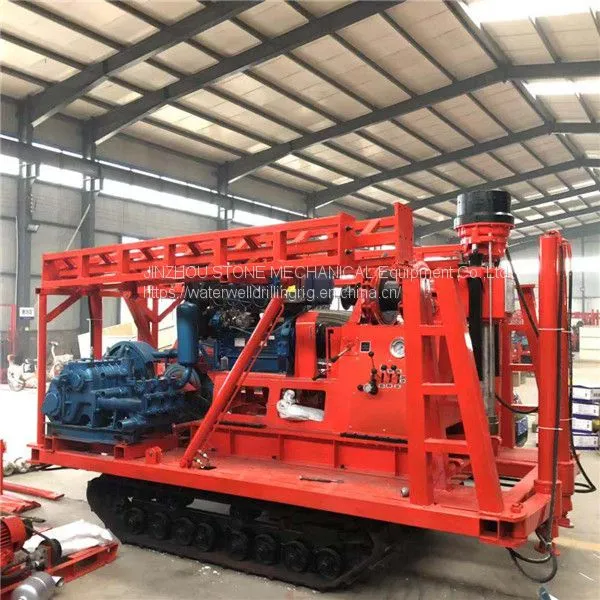

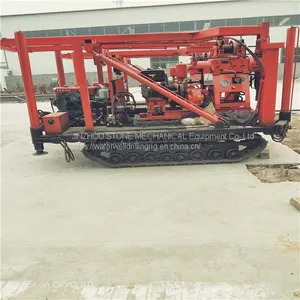

Mud Pump Integrated Core Drilling Rig Machine for SPT Investigation

FOB Price

USD $3200 - $4500 / Set

1 Set(Min.Order)

Product Details

Brand Name:	ShiTan	Place of Origin:	China	Model Number:	ST180
After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New

Mud Pump Integrated Geological Drilling Rig Machine for SPT Investigation

Product Description:

1. With mud pump attached on the rig

2. Large torque, multiple drilling speeds in an appropriate range

3. Capable to drill inclined holes at different angle.

4. High efficiency drilling with hydraulic feeding structure

5. Multiple usages, geotechnical investigation for engineering constructions, mineral exploration, small size pile hole, water well boring

Product Parameter:

Drilling depth	200m
Max open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°~75°
Drill weight (without power)	975kg
Triangle convert belt	B950 x 4 B1700 x 3
The main machine moving distance	300mm
Power	Diesel engine 22KW /Electric motor 15kw
Spindle
spindle speed	64, 128, 287, 557r/min
Spindle stroke	450mm
Hoist
Max.lifting capacity	2400kg
Single line lifting speed	0.41, 0.82, 1.64m/s
Wire rope caliber	13mm
Wire rope length	35m
Reel diameter	140mm
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single-urn twin-action
Displacement	Diesel engine 170L/min Electric motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe caliber	40mm
Outlet pipe caliber	30mm
Triangle convert belt	B1728mm
Hydraulic oil pump
Type	CBT-F-314
Triangle convert belt	B1100 X 1
