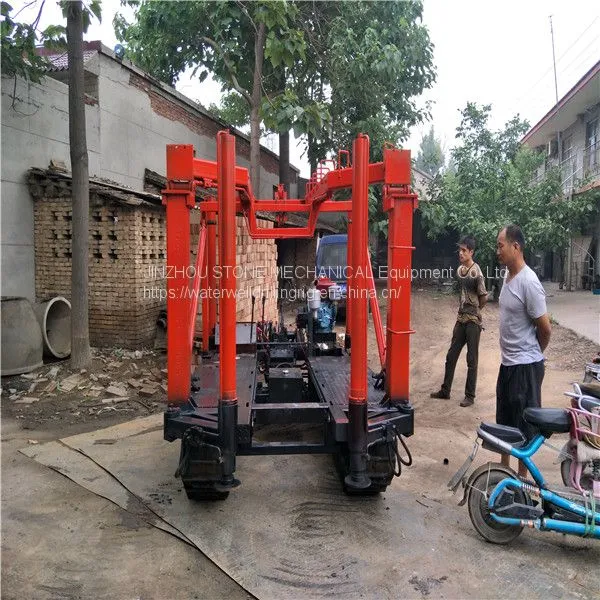

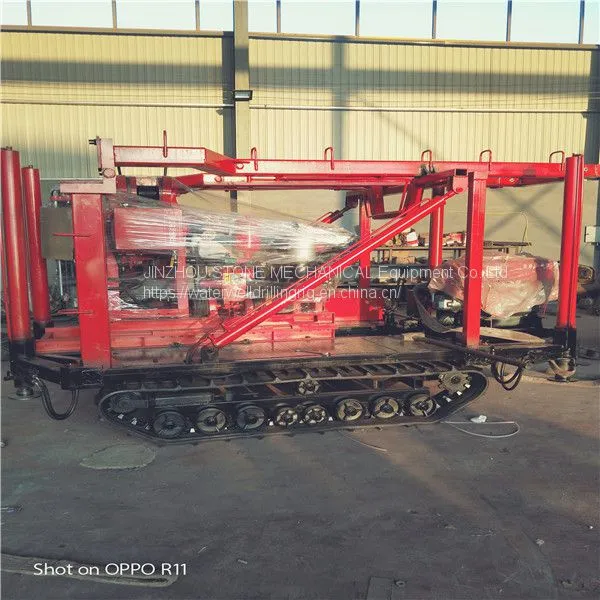

180m Depth Crawler Mounted Water Well Geological Drilling Rig Flexible for Industry Drilling
US$ 3500 - 6200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SHITAN
Place of Origin:
China
Model Number:
ST180
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
7 days
Related Products
-
Multifunctional Hydraulic Geological Drilling Rig Machine for Rock Layer SamplingUS$ 3500 - 6200MOQ: 1 Set -
Landside Preventing Core Drilling Rig Machine for Side Slope Hole Drilling GroutingUS$ 3200 - 4500MOQ: 1 Set
-
Mud Pump Integrated Core Drilling Rig Machine for SPT InvestigationUS$ 3200 - 4500MOQ: 1 Set
-
River Levees Protection Core Drill Rig For Grouting Hole DrillingUS$ 3600 - 6800MOQ: 1 Set
-
Borehole Core DTH Drilling Rig for Engineering Project DrillingUS$ 3600 - 6800MOQ: 1 Set
Brand Name
SHITAN
Place of Origin
China
Model Number
ST180
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
180m Depth Crawler Mounted Water Well Geological Drilling Rig Flexible for Industry Drilling
Product Description:
1.ST-180 is a kind of core drilling rig with small diameter.
2. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed.
3.It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering
drilling.
4.It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
Product Parameter:
| Technical parameters | ||
| 1.Basic parameters | The hole diameter | 75,91,110,130,150 mm |
| Drilling depth | 150,100,70,50,30m | |
| drill pipe diameter | 42 mm | |
| The hole inclination angle | 90-75° | |
| Drill size | 1433×697×1273 mm | |
| Weight (except engine) | 525 Kg | |
| 2. Gyrator | The vertical speed (4 steps) | 71,142,310,620 r/min |
| Vertical travel | 450 mm | |
| The vertical load to the maximum speed of movement | 0.05 m/s | |
| Speed down the maximum vertical load | 0.067 m/s | |
| Max feeding force | 15 KN | |
| Maximum vertical gravity | 30 KN | |
| Max output torque | 1.25 KN.m | |
| 3. Windlass | Since the maximum weight (Single rope) | 15 KN |
| Drum speed | 19,38,84,168 r/min | |
| Drum circumference speed (two layers) | 0.166,0.331,0.733,1.465 m/s | |
| Drum diameter | 140 mm | |
| The diameter of wire rope | 9.3 mm | |
| Wire rope capacity | 35 m | |
| The diameter of the brake | 252 mm | |
| Brake band width | 50mm | |
| 4.Oil pump(Model YBC-12/80) | Rated pressure | 8 MPa |
| flow | 8 ml/r | |
| Rated speed | 1500 r/min | |
| 5. power machine | Engine type: ZS1105-1 | Rated power:12.1 KW |
| Rated speed:2200 r/min | ||
| Motor type: Y160M-4 | Rated power:11 KW | |
| Rated speed:1460 r/min | ||
