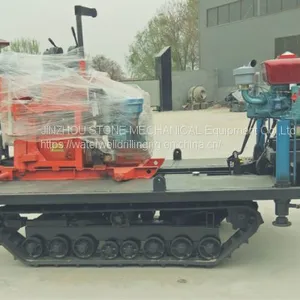

Easy Operate Horizontal Directional Drilling Rig For Rock Formations
US$ 3000 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SHITAN
Place of Origin:
China
Model Number:
ST200
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
7 days
Related Products
-
400m Depth Geological Drilling Rig Machine for Geological Investigation Sample CollectionUS$ 4800 - 6800MOQ: 1 Set -
High Precision Soil Drilling Rig Machine 200M Depth for Geological ExploreUS$ 3200 - 5600MOQ: 1 Set
-
ST200 Crawler Self Propelled Mining Drill Rig Machine For Mineral ExplorationUS$ 3200 - 5600MOQ: 1 Set
-
ST200 Red Color Portable Well Drilling Rig , Water Well Drilling EquipmentUS$ 4200 - 4800MOQ: 1 Set
-
High Efficiency Portable Well Drilling Rig , XY-2B Hydraulic Borehole Drilling MachineUS$ 3000 - 8000MOQ: 1 Set
Brand Name
SHITAN
Place of Origin
China
Model Number
ST200
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Easy Operate Horizontal Directional Drilling Rig For Rock Formations
Lightweight diamond core drilling rig with capacity of 180m/NQ capacity, suitable for carbide and diamond core drilling, SPT Lightweight Core Drilling Rig.Apply to for diamond core drilling, carbide core drilling, SPT test drilling, small water well drilling, hydro exploration drilling,Small geological prospecting, Engineering Investigation
1. Foreword
XY-1A-4 rig is based on the type of rig according to customer requirements, increasing the mud pump restructuring, is a kind oil pressure feeding with high-speed function portable drilling rig.
1.1 Purpose and Scope rig
1.1.1 mainly used for exploration and engineering geological survey of solid mineral deposit prospecting drilling, etc., inspection openings of various concrete structures.
1.1.2 Can be based on different strata, the selection of diamond, alloy and steel particles, etc..
1.1.3. When the final hole diameter is 75mm and 46mm, the rated drilling depth is 100 m and 180 m, respectively, the maximum depth shall not exceed 110% of the drilling depth, rated opening diameter of 110mm, the maximum opening diameter of 200mm.
1.2 rig Features
1.2.1 has a hydraulic feed mechanism, improve drilling efficiency, reduce labor intensity.
1.2.2 rig is equipped with ball card on the clamping mechanism and Six party active drill rod, can be implemented without shutdown rod, high efficiency, easy operation, safe and reliable.
1.2.3. With a hole bottom hole pressure gauge indicates the pressure for easy grasp the situation.
1.2.4 The handle concentrated and convenient operation.
1.2.5 compact rig structure, small size, light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
2. Technical Specifications
2.1. Basic parameters
Drilling depth: 100,180m,
Drill diameter: 42,50mm,
Final hole diameter: 75,46 mm,
Maximum hole diameter: 200mm
Drilling angle: 75 ° ~ 90 °,
Rig Dimensions (L × B × H): 1700 * 780 * 1274mm,
Rig weight (excluding power machine): 590kg
Applications:
1. Drillings for the general exploration and investigation of solid mineral deposit, engineering geotectonic survey and concrete structure inspection holes.
2.Diamond drill bit, alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structures.
3.When the final holes are respectively 75mm and 46mm in diameter, the rated hole depths are separately 100m and 180m. The maximum of depth may not exceed 110% of that drilled in each hole. The maximum allowable hole diameter is 150 mm.
