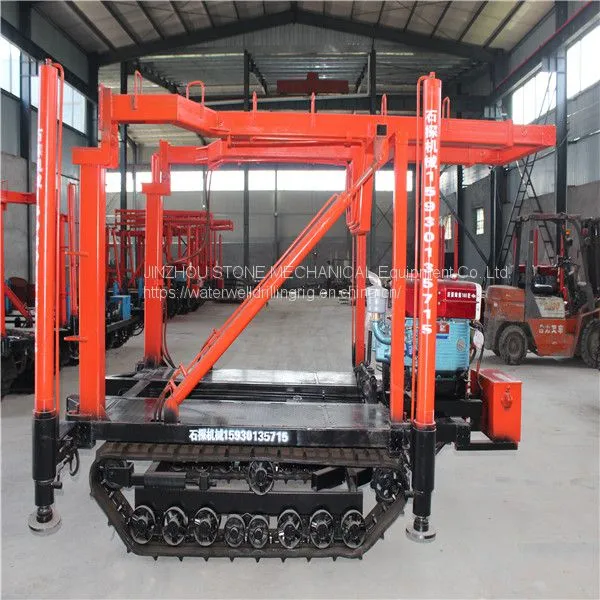

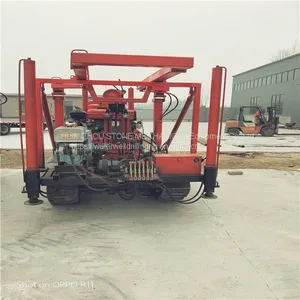

Multifunctional Hydraulic Geological Drilling Rig Machine for Rock Layer Sampling
US$ 3500 - 6200
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SHITAN
Place of Origin:
China
Model Number:
ST180
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
7 days
Related Products
-
Landside Preventing Core Drilling Rig Machine for Side Slope Hole Drilling GroutingUS$ 3200 - 4500MOQ: 1 Set -
Mud Pump Integrated Core Drilling Rig Machine for SPT InvestigationUS$ 3200 - 4500MOQ: 1 Set
-
River Levees Protection Core Drill Rig For Grouting Hole DrillingUS$ 3600 - 6800MOQ: 1 Set
-
Borehole Core DTH Drilling Rig for Engineering Project DrillingUS$ 3600 - 6800MOQ: 1 Set
-
130m 180m 200m Borehole Diamond Core Drilling Machine For Small Grouting Hole WinchUS$ 6400 - 13500MOQ: 1 Set
Brand Name
SHITAN
Place of Origin
China
Model Number
ST180
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Multifunctional Hydraulic Geological Drilling Rig Machine for Rock Layer Sampling
Product Description:
1.ST-180 is a kind of core drilling rig with small diameter.
2. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed.
3.It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering
drilling.
4.It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
Product Parameter:
Product Technical Data:
| Unity machine parameter | |
| Drilling depth | 30--180m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1×0.9×1.3m |
| Spindle | |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power | |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
