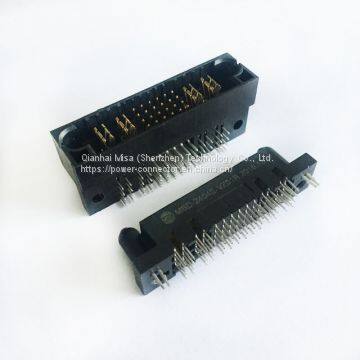

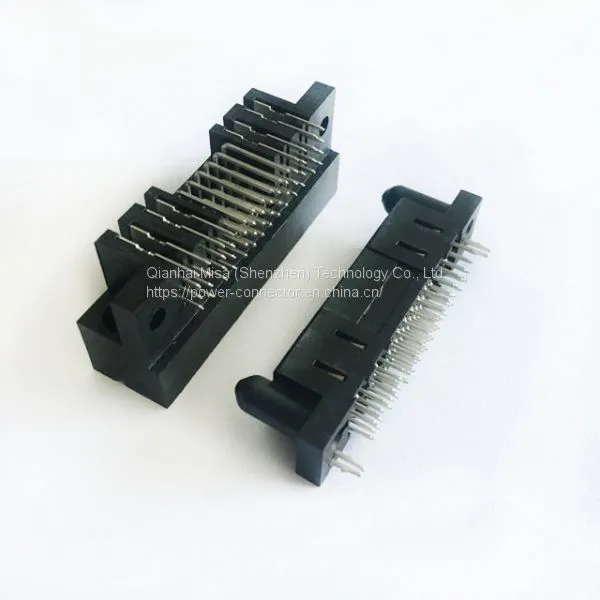

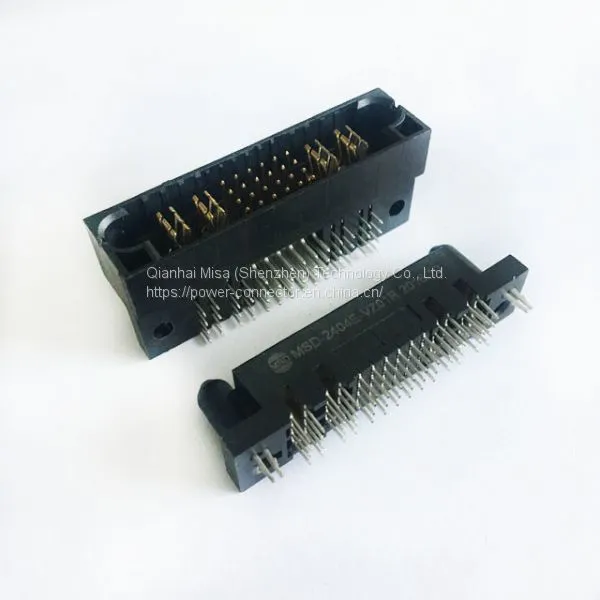

Amphenol FCI PwrBlade,4 Power, 24 Signal Contacts, 4 Row, Right Angle PCB Socket, Through Hole

FOB Price

USD $8 - $10 / Pair

50 Pairs(Min.Order)

Product Details

Place of Origin:	China	Model Number:	MSD-0424Z/MSD-0424T	Application:	Power
Gender:	Other, Female/Male

Attribute	Value
Component Type	Power Supply Connectors
Gender	Male/Female
Header Pin Pattern (Left to Right)	Power/Signal/Power
Number of Contacts (Signal)	24
Number of Rows (Power)	4
Number of Rows (Signal)	4
Number of Rows (Power)	1
Orientation	Right Angle
Termination Style	Solder
Pitch (Power)	6.35mm (0.250in)
Pitch (Signal)	2.54mm (0.100in)
Current Rating	40A max. for One Powered Contact
Resistance (Contact)	Maximum for mated pair is 2mΩ
Dielectric Withstanding Voltage	2500V DC for power
Voltage Rating	250V
Color - Housing	Black
Operating Temperature Range	-40°C to +125°C
Material Housing	PPA, glass fiber reinforce, UL94V-0
Durability (Mating cycles)	250 Mating Cycles
Solder process	High Temp Solder Process
Plating Contact area	0.76μm (29.921μin) Gold
Tail Plating (Power)	1.98μm (78μin) Tin
Tail Plating (Signal)	1.98μm (78μin) Tin
Guide Feature	Guide Pin Pocket
Polarization Feature	Yes
Retention Feature	Board Lock
Packaging	Tray
