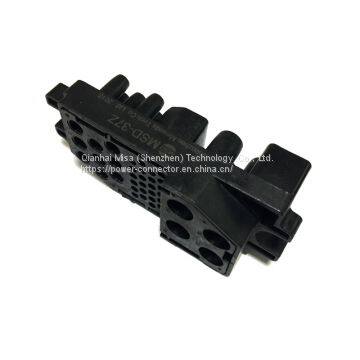

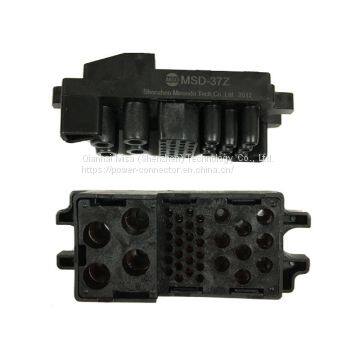

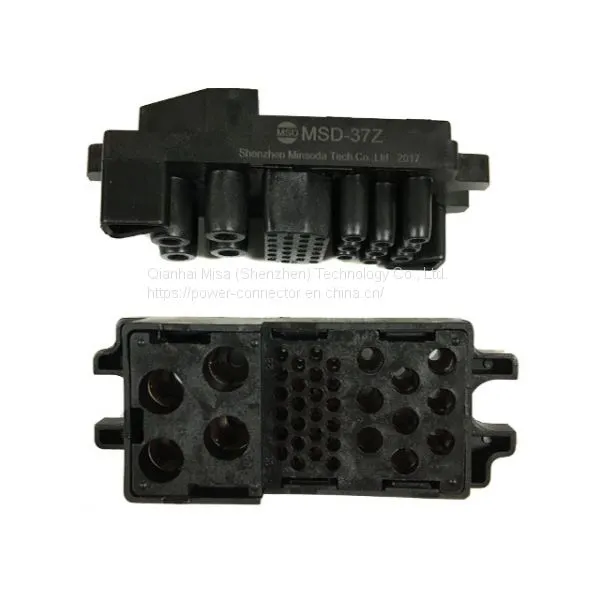

AMP Power Connector DL37Z Socket High Current Drawer Connectors Tyco and ELCON Power Module Connector
US$ 2 - 10
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
MSD Middle Drawer Connector
Place of Origin:
China
Model Number:
MSD-37Z
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MISA 3Pin TP950H And TP950P 35AMP Male Female Industrial Power Supply ConnectorUS$ 2 - 10MOQ: 10 Pairs -
3 Pin 35A TP950H Female Earthed High Temperature Electrical Connectors for Modular Power SupplyUS$ 2 - 10MOQ: 10 Pieces
-
3 Pin Male TP950P 35A PET GF30 RoHS Black Wire Terminals Crimp Electrical ConnectorsUS$ 2 - 10MOQ: 10 Pieces
-
100AMP CZ35 UL94-V0 Black EMERSON Power Module Drawer Type High Current DC ConnectorsUS$ 2 - 10MOQ: 10 Pairs
-
100A CZ35-10Z EMERSON Communication Module Power ConnectorUS$ 2 - 10MOQ: 10 Pieces
Brand Name
MSD Middle Drawer Connector
Place of Origin
China
Model Number
MSD-37Z
Operating Environment
Operating Temperature | –55 to + 125 oC |
Relative Humidity | 98% (40 oC) |
Vibration | 10 to 2,000Hz (a = 147m/s2) |
Shock | Acceleration 980m/s2 |
Main Technical Specifications
Insulation Resistance | ≥ 1,000MΩ | ||||
Mechanical Life | 1,000 times | ||||
Housing Material | PET G30 UL94V-0 Black | ||||
Contact | Spec. | Signal Contact | Power Contact | ||
#20 | #12 | #8 | |||
Quantity | 24 | 9 | 4 | ||
Rated Current | 5A | 35A | 75A | ||
Contact Resistance | ≤5.0mΩ | ≤1.0mΩ | ≤0.75mΩ | ||
Withstand Voltage | 1,000V | 1,500V | 1,500V | ||
Surface Material | Gold plated over nickel | Silver plated over nickel | |||
Terminal Style | Crimping (Y), PCB Tail (B), Solder Cup(H) | ||||
Material | Pin and Socket | Brass or copper | |||
Crown Spring | Beryllium bronze | ||||
