Home > Products > High current drawer connector > DL37T-20 ELCON 75A high-current rectangular industrial power supply connector

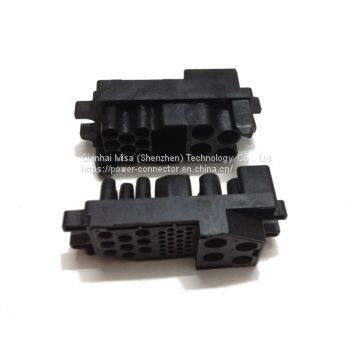

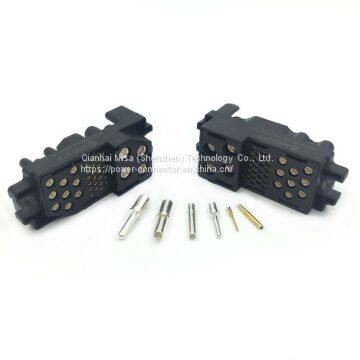

DL37T-20 ELCON 75A high-current rectangular industrial power supply connector
- 200000 Piece / Pieces per Month
- shenzhen
- T/T PayPal
-
AMP Power Connector DL37Z Socket High Current Drawer Connectors Tyco and ELCON power module connector
-
MISA 3Pin TP950H And TP950P 35AMP Male Female Industrial Power Supply Connector
-
3 Pin 35A TP950H Female earthed high temperature electrical connectors for modular power supply
-
3 Pin Male TP950P 35A PET GF30 RoHS Black wire terminals crimp electrical connectors
-
100AMP CZ35 UL94-V0 Black EMERSON Power module drawer type high current DC connectors
-
100A CZ35-10Z EMERSON communication module power connector
Product Details
| Brand Name: | MSD Middle Drawer Connector | Place of Origin: | China | Model Number: | MSD-37T/Z |
Product Description
Operating Environment
Operating Temperature | –55 to + 125 oC |
Relative Humidity | 98% (40 oC) |
Vibration | 10 to 2,000Hz (a = 147m/s2) |
Shock | Acceleration 980m/s2 |
Main Technical Specifications
Insulation Resistance | ≥ 1,000MΩ | ||||
Mechanical Life | 1,000 times | ||||
Housing Material | PET G30 UL94V-0 Black | ||||
Contact | Spec. | Signal Contact | Power Contact | ||
#20 | #12 | #8 | |||
Quantity | 24 | 9 | 4 | ||
Rated Current | 5A | 35A | 75A | ||
Contact Resistance | ≤5.0mΩ | ≤1.0mΩ | ≤0.75mΩ | ||
Withstand Voltage | 1,000V | 1,500V | 1,500V | ||
Surface Material | Gold plated over nickel | Silver plated over nickel | |||
Terminal Style | Crimping (Y), PCB Tail (B), Solder Cup(H) | ||||
Material | Pin and Socket | Brass or copper | |||
Crown Spring | Beryllium bronze | ||||
