Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > FCI Powerblade Connectors 6.35mm Pitch 8Pin Blade Connector Female For 15KW Charging Module

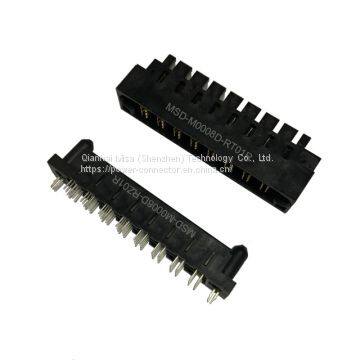

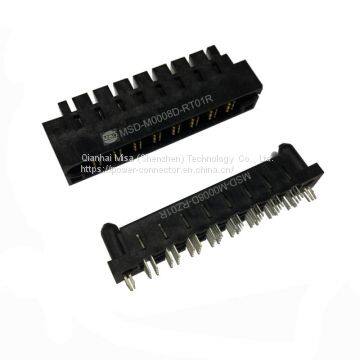

FCI Powerblade Connectors 6.35mm Pitch 8Pin Blade Connector Female For 15KW Charging Module
US$ 5 - 8
MOQ: 50 Pairs
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
MSD-M008D
Application:
Power
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Amphenol FCI PwrBlade,4 Power, 24 Signal Contacts, 4 Row, Right Angle PCB Socket, Through HoleUS$ 8 - 10MOQ: 50 Pairs -
Pitch 7.62mm 3pin Header Fci Pwrblade Rectangular Power Blade Power ConnectorsUS$ 3 - 6MOQ: 50 Pairs
-
Tyco 3 Pin MULTI-BEAM XL Rectangular Power Connectors, Blade ConnectorUS$ 3 - 6MOQ: 50 Pairs
-
100A CZ35-10Z EMERSON Communication Module Power Connector For Power Distribution EquipmentUS$ 2 - 10MOQ: 10 Pieces
-
12pin Pitch2.7mm TB50, TB55,TB60 Drone Battery ConnectorUS$ 1 - 10MOQ: 50 Pairs
Place of Origin
China
Model Number
MSD-M008D
Application
Power
Gender
Other, Female/Male
Specifications
| Attribute | Value |
| Component Type | Power Supply Connectors |
| Gender | Receptacle |
| Header Pin Pattern (Left to Right) | Power |
| Number of Contacts (Power) | 8 |
| Number of Rows (Power) | 1 |
| Orientation | Right Angle |
| Pitch (Power) | 6.35mm (0.250in) |
| Current Rating | 40A max. for One Powered Contact |
| Resistance (Contact) | Maximum for mated pair is 2mΩ |
| Dielectric Withstanding Voltage | 2500V DC for signal |
| Voltage Rating | 300V |
| Color - Housing | Black |
| Operating Temperature Range | -40°C to +125°C |
| Material Housing | PPA, glass fiber reinforce, UL94V-0 |
| Durability (Mating cycles) | 250 Mating Cycles |
| Solder process | High Temp Solder Process |
| Plating Contact area | 0.76μm (29.921μin) Gold |
| Tail Plating (Power) | 1.98μm (78μin) Tin |
| Guide Feature | Guide Pin Pocket |
| Packing | Cartons or Tray |
