Home > Products > High current drawer connector > Lower Drawer 29PIN 8Power+21signal compatible with Tyco and ELCON heavy duty power connectors.

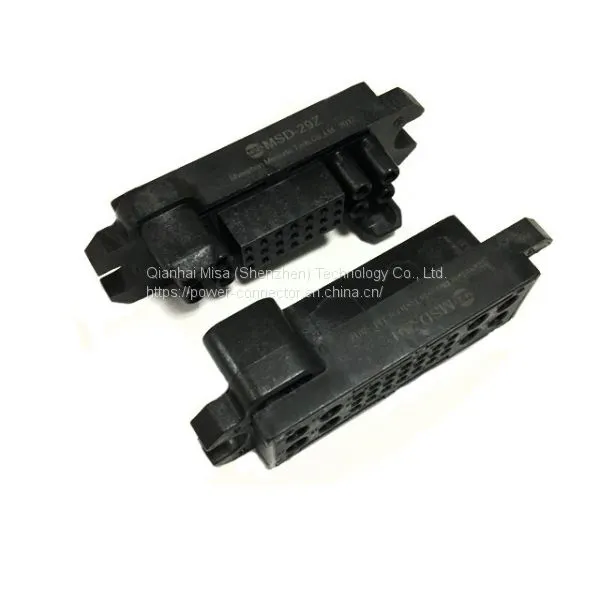

Lower Drawer 29PIN 8Power+21signal compatible with Tyco and ELCON heavy duty power connectors.
- 200000 Piece / Pieces per Month
- shenzhen
- T/T PayPal
-
MISA 29T 35A Power module connector for EMERSON HD4830-3 48V 30A rectifier module
-
DL37T-20 ELCON 75A high-current rectangular industrial power supply connector
-
AMP Power Connector DL37Z Socket High Current Drawer Connectors Tyco and ELCON power module connector
-
MISA 3Pin TP950H And TP950P 35AMP Male Female Industrial Power Supply Connector
-
3 Pin 35A TP950H Female earthed high temperature electrical connectors for modular power supply
-
3 Pin Male TP950P 35A PET GF30 RoHS Black wire terminals crimp electrical connectors
Product Details
| Brand Name: | MSD Lower drawer connector | Place of Origin: | China | Model Number: | MSD-29Z/T |
| Application: | Power | Gender: | Male |
Product Description
| Operating Environment: | |
| Operating Temperature | –55 to + 125 oC |
| Relative Humidity | 98% (40 oC) |
| Vibration | 10 to 2,000Hz (a = 147m/s2) |
| Shock | Acceleration 980m/s2 |
Main Technical Specifications: | |||
| Insulation Resistance | ≥ 1,000MΩ | ||
| Mechanical Life | 1,000 times | ||
| Housing Material | PET G30 UL94V-0 Black | ||
| Contact | Spec. | Signal Contact | Power Contact |
| #20 | #12 | ||
| Quantity | 21 | 8 | |
| Rated Current | 5A | 35A | |
| Contact Resistance | ≤5.0mΩ | ≤1.0mΩ | |
| Withstand Voltage | 1,000V | 1,500V | |
| Surface Material | Gold plated over nickel | Silver plated over nickel | |
| Terminal Style | Crimping (Y), PCB Tail (B), Solder Cup(H) | ||
| Material | Pin and Socket | Brass or copper | |
| Crown Spring | Beryllium bronze | ||
Our Products Features And Advantage:
1.Material:The outer covering uses the High temperature resistant, glass fiber reinforced and flame retardant
polyester are used as insulating materials.
2.The socket uses the world's most advanced crown spring jack as the contact piece
it has high dynamic contact reliability. It is characterized by large current carrying capacity, gentle and
durable plugging,support for equipment to plug-in charged and other advantages
4. the end connection forms of contact parts include pressing, plate connection, welding and thread connection etc Various forms
5. Be interchangeable with the products of JONHON DL series, and Power Connector products of AMP/TYCO and ELCON.
