Drawer Connector DL 17T DL 17Z Photovoltaic Inverter Power Module Connector

Drawer Connector DL 17T DL 17Z Photovoltaic Inverter Power Module Connector photo-1

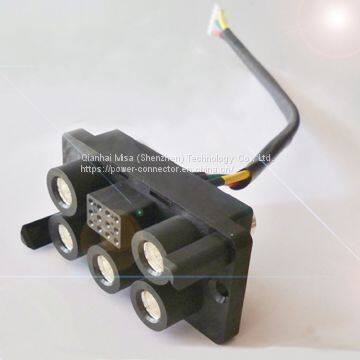

Drawer Connector DL 17T DL 17Z Photovoltaic Inverter Power Module Connector photo-2

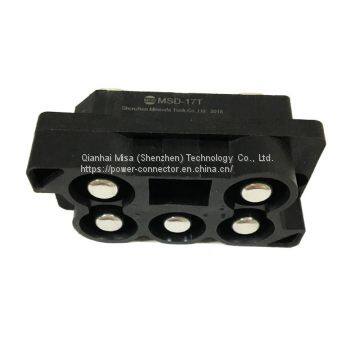

Drawer Connector DL 17T DL 17Z Photovoltaic Inverter Power Module Connector photo-3
US$ 5 - 28 MOQ: 5 Pairs
Key Specifications
Get Latest Price
Brand Name:
high current screw connector
Place of Origin:
China
Model Number:
MSD-DL 17T/Z
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name high current screw connector
Place of Origin China
Model Number MSD-DL 17T/Z
Application Power
Gender Other, Female/Male
Product Parameter
Operating Environment
Operating Temperature
–55 to + 125 oC
Relative Humidity
98% (40 oC)
Vibration
10 to 2,000Hz (a = 147m/s2)
Main Technical Specifications
Insulation Resistance
≥ 1,000MΩ
Mechanical Life
1,000 times
Housing Material
PET G30 UL94V-0 Black
      Contact
Spec.
Signal Contact
Power Contact
#20
#0
Quantity
12
5
Rated Current
5A
150A
Contact Resistance
≤5.0mΩ
≤1.0mΩ
Withstand Voltage
1,000V
5000V
Surface Material
Gold plated over nickel
Silver plated over nickel
Terminal Style
20#: Crimping(Y) 0# :External Thread(W)
   Material
Pin and Socket
Brass or copper
Crown Spring
Beryllium bronze


Product Tags: rectangular power connector , 17pin power connector , modular power connectors
