Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > CZ36E 4Pin 35A PET UL94V-0 Black Female Wire To Board Connector

CZ36E 4Pin 35A PET UL94V-0 Black Female Wire To Board Connector

CZ36E 4Pin 35A PET UL94V-0 Black Female Wire To Board Connector photo-1

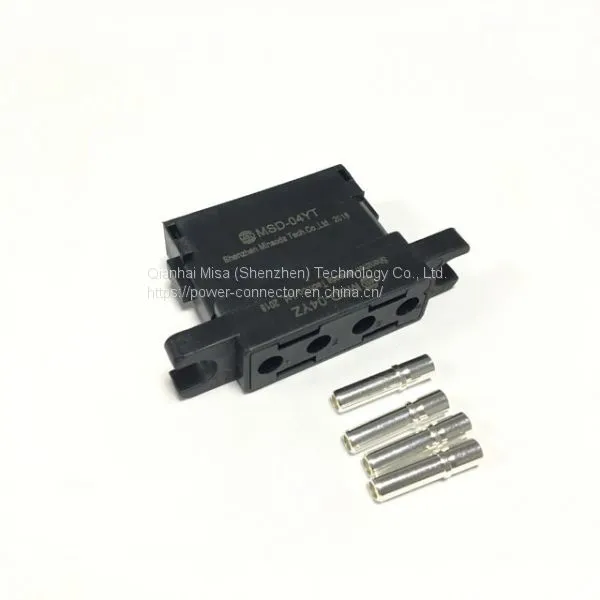

CZ36E 4Pin 35A PET UL94V-0 Black Female Wire To Board Connector photo-2
CZ36E 4Pin 35A PET UL94V-0 Black Female Wire To Board Connector photo-3
US$ 1 - 10 MOQ: 10 Pairs
Key Specifications
Get Latest Price
Brand Name:
modular connector
Place of Origin:
China
Model Number:
MSD-CZ36-4T/Z
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name modular connector
Place of Origin China
Model Number MSD-CZ36-4T/Z
Application Power
Gender Other, Female/Male
Operating Environment:
Operating Temperature
–55 to + 125 oC
Relative Humidity
98% (40 oC)
Vibration
10 to 2,000Hz (a = 147m/s2)
Main Technical Specifications:
Insulation Resistance
≥ 1,000MΩ
Mechanical Life
1,000 times
Housing Material
PET G30 UL94V-0 Black

Contact

Spec.
Power Contact
#12
Quantity
4
Rated Current
35A
Contact Resistance
≤1mΩ
Withstand Voltage
3000V
Surface Material
Silver plated over nickel
Terminal Style
#0: Crimping (Y), Internal Thread(N), External Thread(W)
   Material
Pin and Socket
Brass or copper
Crown Spring
Beryllium bronze


Product Tags: 4pin power connector , industrial connector , modular connector , rectangular power connector , high current dc connectors
