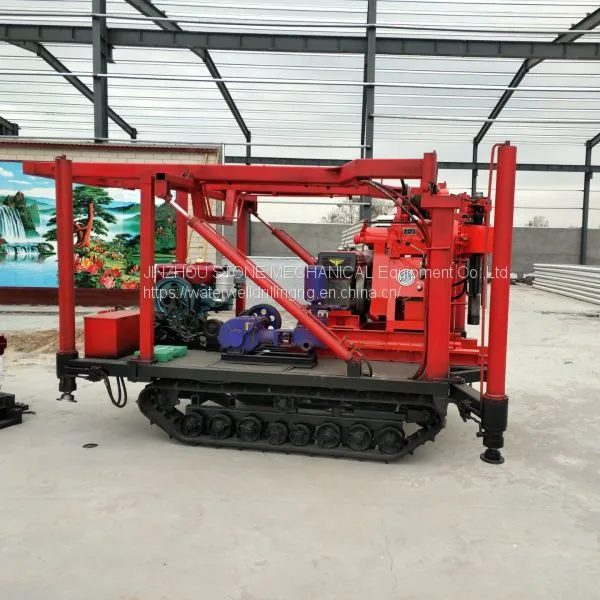

180m Depth Crawler Mounted Water Well Geological Drilling Rig Flexible for Industry DrillingUS$ 3500 - 6200MOQ: 1 Set
-
Multifunctional Hydraulic Geological Drilling Rig Machine for Rock Layer SamplingUS$ 3500 - 6200MOQ: 1 Set
-
Landside Preventing Core Drilling Rig Machine for Side Slope Hole Drilling GroutingUS$ 3200 - 4500MOQ: 1 Set

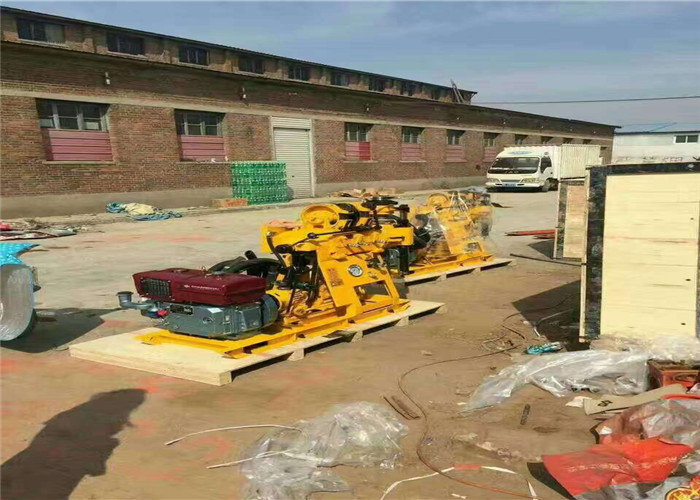

Diamond Core Drilling Rig & Water Well Drilling Machine:
The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.
Drilling bits can be chosen according to different strata .
Diamond Core Drilling Rig & Water Well Drilling Machine Features
1. hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.
2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4. The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas
| Drilling depth | 230m |
| Maximum borehole caliber | 300mm |
| Minimum borehole caliber | 75mm |
| Diameter of Drill pipe | 42/50/60mm |
| Drilling angle | 90°~75° |
| Weight(Not include power) | 1150kg |
| Unity machine dimension | 2750*950*1770mm |
| 2.Vertical Spindle | |
| Spindle rotating speed | 64/128/287/557r/min |
| Spindle stroke | 450mm |
| 3.Hoist | |
| Max. single line lifting capacity | 2400kg |
| Reel lifting speed | 1.64m/s |
| Steel wire rope diameter | 13mm |
| Steel wire rope capacity | 35m |
| Hug floodgate diameter | 245mm |
| Hug floodgate belt width | 70mm |
| Movable distance | 400mm |
| 4. Mud pump | |
| Type | GS-200 |
| Type | Horizontal Single Cylinder with double function |
| Max. Discharge | Diesel engine 170L/min |
| Electrical Motor 140L/min | |
| Max. Pressure | 3MPa |
| Work Pressure | 1.5MPa |
| 5. Power | |
| Diesel engine | 22HP |
| Electric Motor | 15KW |
| 6. Drilling tower | |
| Type | Integrated on drilling rig |
| Control system | Hydraulic |
| 7. Trailer chassis | |
| Type | 4 wheels |
