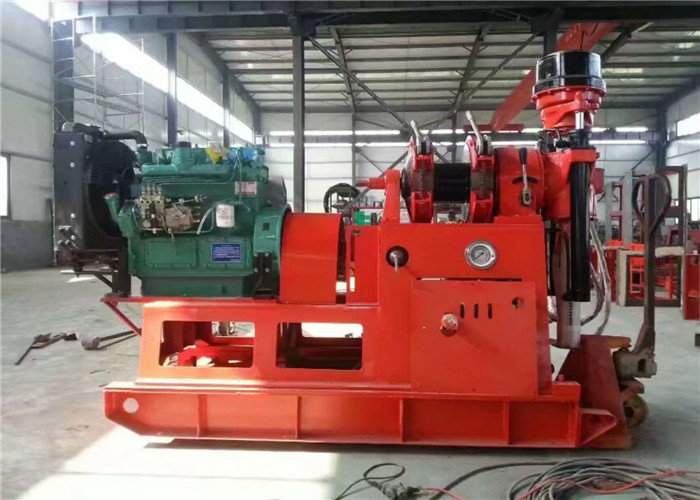

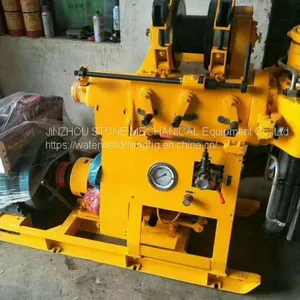

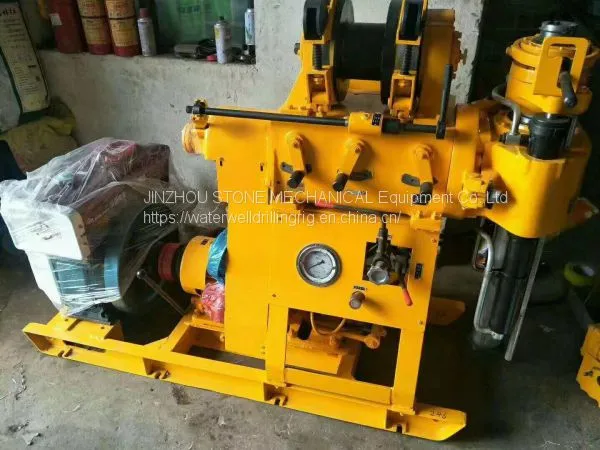

130m 180m 200m Borehole Drilling Rig For Small Grouting Hole Winch
Application
It can used in the field of water well drilling, geological core drilling, geological survey,lasting holes of railway, water conservancy, bridges, dam foundation and other bulidings, also for small grouting holes, We use different bits like diamond composite films and alloy for different strata.
Technical Specification
| Drilling depth | Max.200m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 975kg |
| Triangle convert belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22KW /Electric motor 15kw |
| Spindle | |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wire rope caliber | 13mm |
| Wire rope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug floodgate belt width | 70mm |
| Mud pump | |
| Type | Horizontal single-urn twin-action |
| Displacement | Diesel engine 170L/min Electric motor 150L/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Inlet pipe caliber | 40mm |
| Outlet pipe caliber | 30mm |
| Triangle convert belt | B1728mm |
| Hydraulic oil pump | |
| Type | CBT-F-314 |
| Triangle convert belt | B1100 X 1 |
The ST200 water well drilling rig have the Character :
1. Adopt automatic hydraulic feeding equipment,improve the drilling efficient
2.Can replace the drilling rod without stop
3.Centralized handles, easy operation, safe and reliable.
4.The drilling rig, pump and diesel engine are installed on a common base frame to make sure the compact structure and save space
5.The weight is light with high detachability ,easy transportation suit for the operate in plains and mountain areas
