Home > Manufacturing & Processing Machinery > Mining Machinery > Sand Washer > Washing Plant Spiral Washer Used in Ore-washing Work
Washing Plant Spiral Washer Used in Ore-washing Work
US$ 3500 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jinchuan
Place of Origin:
China
Model Number:
RXL320
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
7 days
Related Products
-
Sand and Stone Separating Machine Drum Stone WasherUS$ 3000 - 20000MOQ: 1 Set -
Sand Washing Equipment Wheel Type Sand WasherUS$ 3000 - 20000MOQ: 1 Set
-
Chemical Machinery Mixing Equipment Agitating TankUS$ 1000 - 5000MOQ: 1 Set
-
Small Mineral Testing Machinery XJT Leaching Mixer Machine for LabUS$ 1000 - 5000MOQ: 1 Set
-
Lab Small Adjustable Magnetic Separator Dry Type Magnetic Separator MachineUS$ 2600 - 5000MOQ: 1 Set
Brand Name
Jinchuan
Place of Origin
China
Model Number
RXL320
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
0.9T
Dimension(L*W*H)
320*3200MM
Condition
New
Power(W)
4kw
Motor Type
AC Motor
Capacity(t/h)
10t/h
Working principle
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task. Application
Spiral Sand washing machine improves the quality of sand by removing the dust in it. It is therefore widely used in building-sites, gravel factories, concrete dam sites, glass factories, cement mixture stations, quarries, hydropower stations, and electric pole factories, etc.
Product feature
1.High degree cleaning-up.
2.Reasonable structure.
3.Large capacity,low power consumption.
4.Small lost of the sands during the washing process.

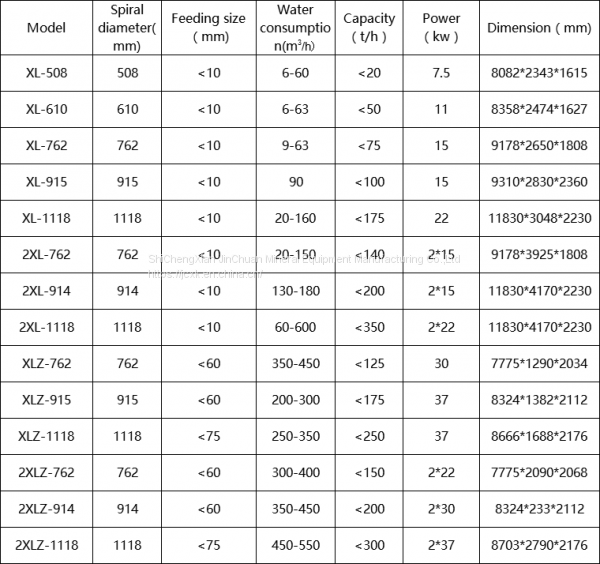

Parameter

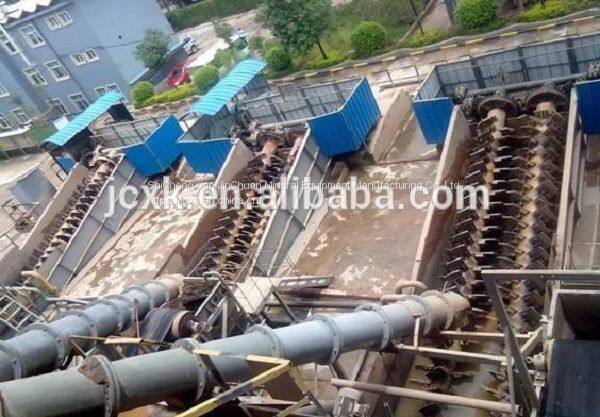

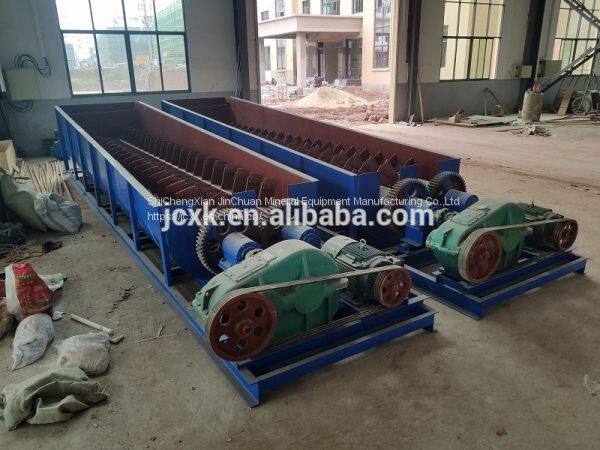

Product pictures
