Ore Separation Machine China Separation Flotation Machine

Ore Separation Machine China Separation Flotation Machine photo-1

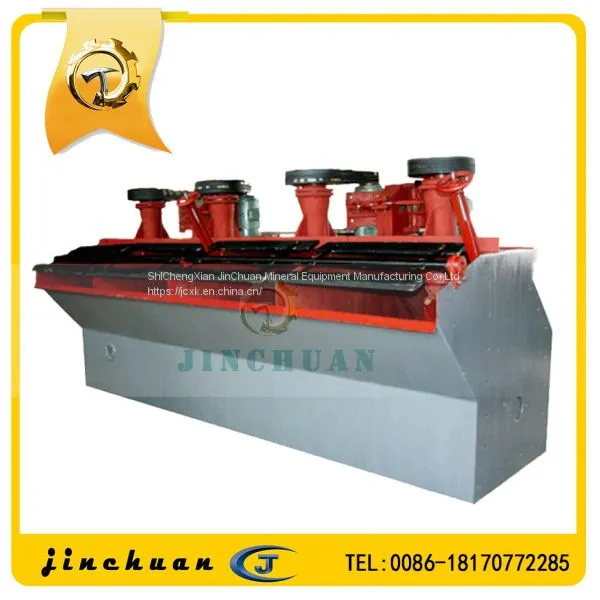

Ore Separation Machine China Separation Flotation Machine photo-2

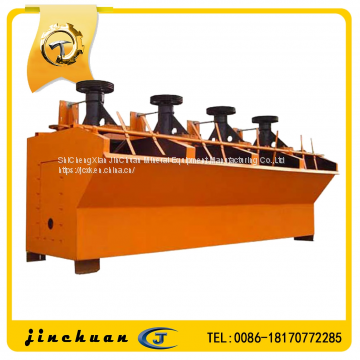

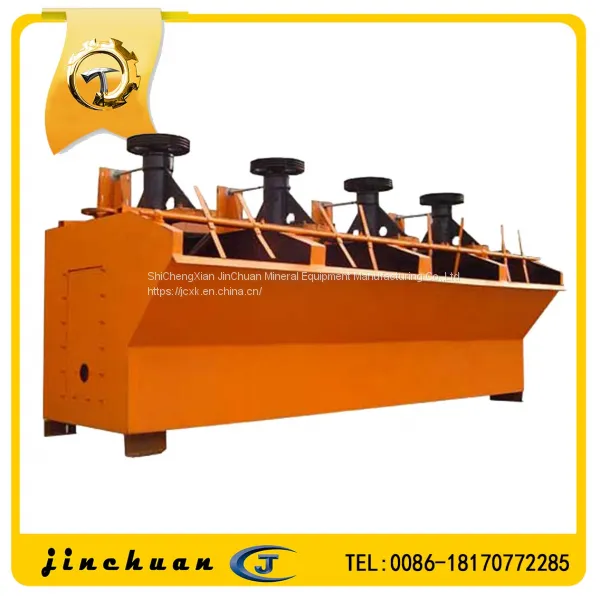

Ore Separation Machine China Separation Flotation Machine photo-3
US$ 1000 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jinchuan
Place of Origin:
China
Model Number:
SF/KYF/XJK/XCF series
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen or as your request
Delivery Detail:
3 days
Brand Name Jinchuan
Place of Origin China
Model Number SF/KYF/XJK/XCF series
Type Flotation Separator
Certification ISO:9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 310-20000KG
Dimension(L*W*H) Depend on model
Production Capacity 0.5-1000t/h
Voltage 380V or as your request
Condition New
Power(W) 1.1-75kw

---About product

   Floatation Separator is usually a continuous process by a few tanks, dozens of tank flotation machine connection, including roughing, scavenging, concentration operations. The use of flotation machine should meet the following requirements about equipment and processes, varies parts are complete and intact. Machines function normally and achieve the required aeration rate. Motor drives impeller rotating through belt and pulley. On the one hand, the machine inhaled enough air mixed with slurry, on the other hand, stirring the mixture of pulp and pharmaceutical. At the same time, refinement of the bubble, the particles adhere to the bubbles on the role of reagents and float to the slurry surface. So it the formation of mineralized froth layer and scraped by the scraper..

---Features

1. Air charging system is mainly composed by the inlet air pipe;
2. The flotation machine has large inhaling capacity and low energy consumption;
3. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;
4. Reasonable circulation of pulp decreases coarse sand sedimentation.

---Working princeple

  The working principle of flotation cell: The mineral pulp being added pharmacy will be passed into the gas, and the electric rotor will bring the movement of part pieces to mix and stir in order to make the mineral and gas be sufficiently mixed, and at this minute, the grain of mineral pulp is above on the bubble, floating on the surface, which can reach the purpose of sorting the mineral material through blade scrapings.

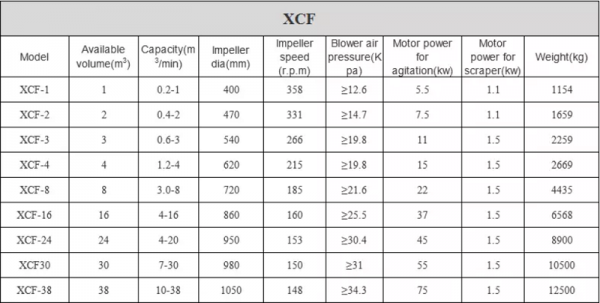

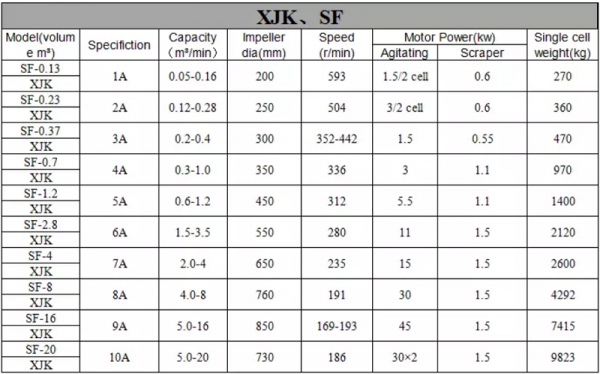

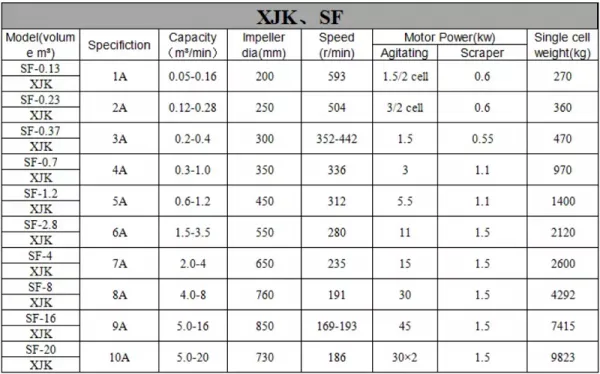

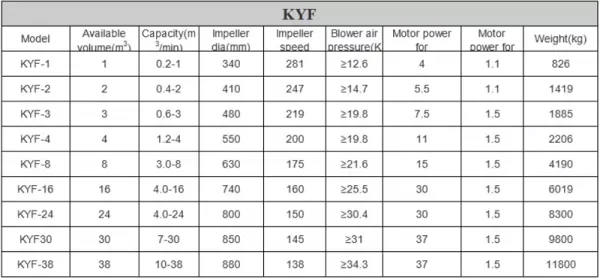

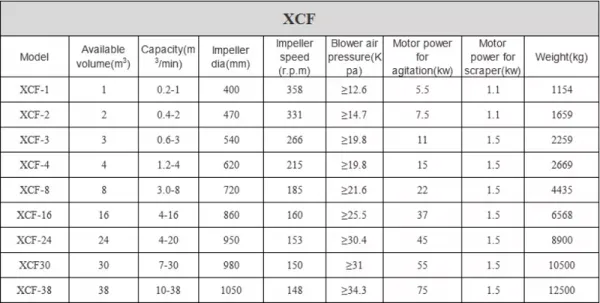

---Technical parameter

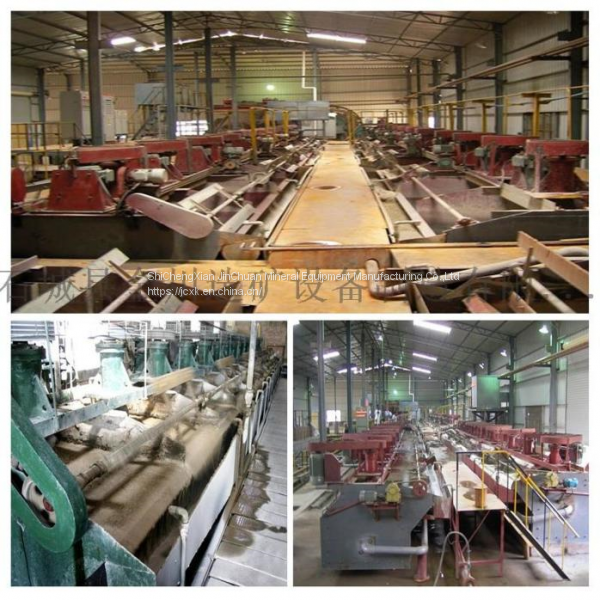

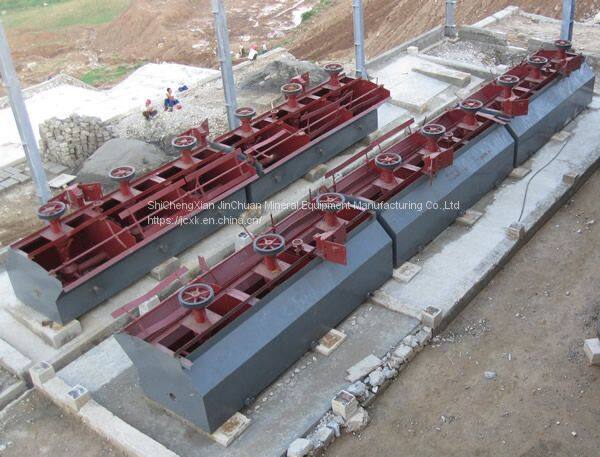

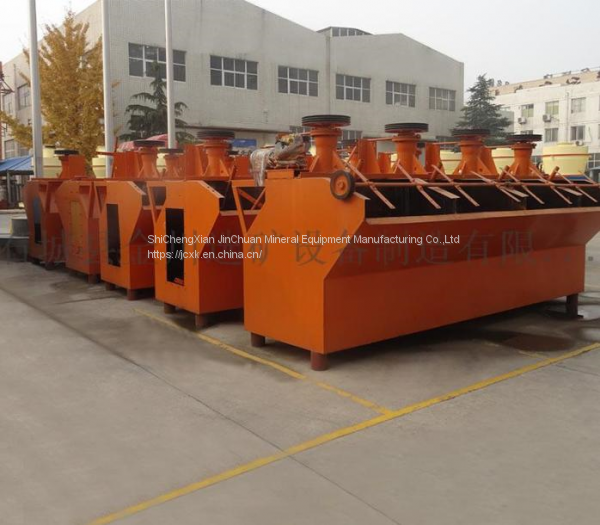

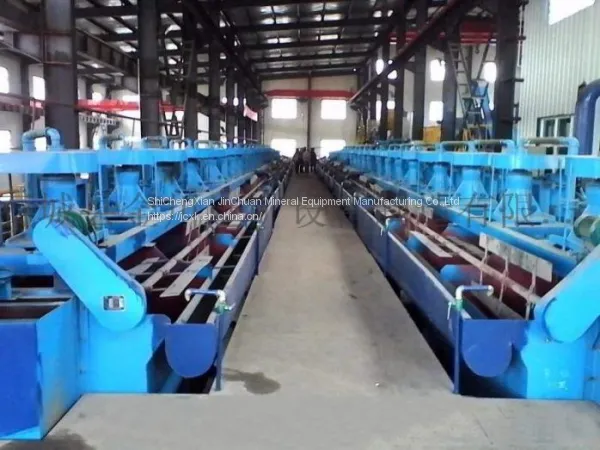

---Application pictures


Product Tags: flotation machine , flotation cell , flotation machinery , China flotation machine , flotation separator , flotation cells , flotation separation , SF flotation machine , Gold flotation machine
