---About product
Drum Permanent Magnetic Separator is suitable for Mine, Coal preparation plant etc. use weak wet magnetic field to sort out the strong magnetic ore, or eliminating the strong magnetic minerals mixed in nonmagnetic minerals. The magnetic field of CTS(N,B) wet drum permanent magnetic separators divide into rotary and fixed. The fixed one is mainly use in weak magnetic field to separate the fine particle strong magnetic materials, or eliminating the strong magnetic materials in the nonmagnetic ores.
---Features
1. simple structure
2. Easy-open structure gives a convenient cleaning;
3. large handling
4. magnetic intensity: 800 to 11000 Gauss
5. easy to operate
6. The number of axial magnetic can be adjusted in accordance with material characteristics;
7. easy to maintain
8. This magnetic separator is suitable for processing various bulk materials and will not blocked for its compact structure.
9. Low power
10. Also has disaggregating function for sticky and poor-fluidity powders;
11. Stainless steel machine and full-closed operation enable an easy clean;
12. This high gradient magnetic separator has optimized magnetic circuit, which offers high intensity magnetic field for better separating effect.
13. Magnetic separator working under high temperature
---Working princeple
When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area .The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 6-0mm size.

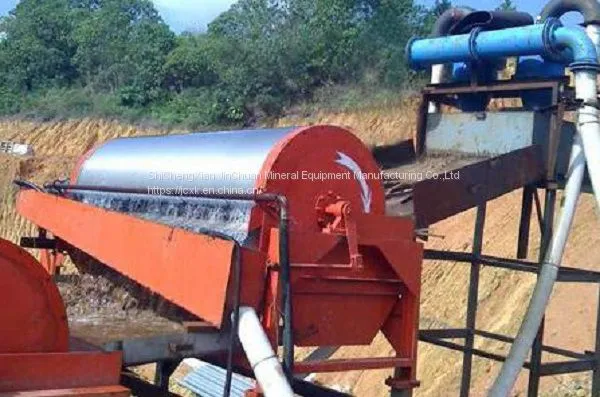

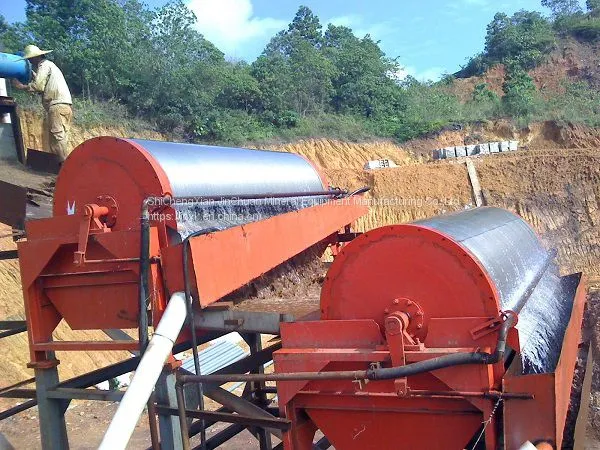

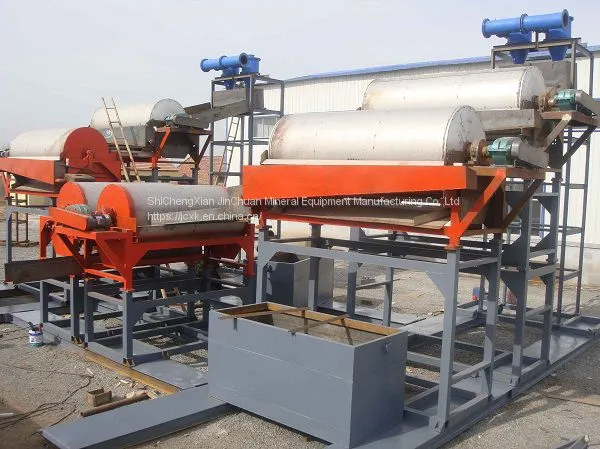

---Application pictures
