---About product

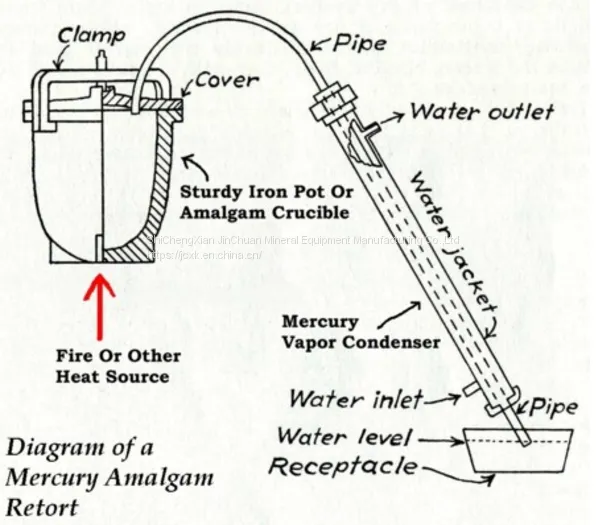

Mercury distillation is the most commonly used mercury paste distillation equipment for small and medium-sized mines. Since the vaporization temperature of mercury is lower than the melting point and boiling point of gold, the mercury and gold in the mercury paste are separated by the method of distillation. The solid mercury paste produced by the gold preparation can be distilled regularly. The solid mercury paste is placed in a sealed cast steel tank and the tank is connected to an iron pipe with a condenser tube. The iron cans placed in coke, gas or electric furnace and other heating furnace, when the temperature slowly rose to 356 degrees, the mercury in the mercury paste and gasification along the iron tube, after the condensation was spherical droplets below Filled with water containers to be recovered. In order to fully separate the mercury in the mercury paste, many gold plants will control the mercury vapor temperature at 400-450 degrees, and the temperature will rise to 750 ° -800 ° C for 30 minutes. Mercury recovery time is 5-6 hours, mercuric operation mercury recovery rate is usually greater than 99%. Small and medium-sized mines with distilled water tank, large-scale mining using distillation furnace.
---Features
1, small size, easy to carry and transfer.
2, high distillation efficiency, simple operation.
3, compact design, unique water cooling device to ensure complete liquefaction of mercury.
4, even the three distillation tanks with special distillation device to avoid the distillation of residual mercury vapor after the tank on the human body damage.
---Technical parameter

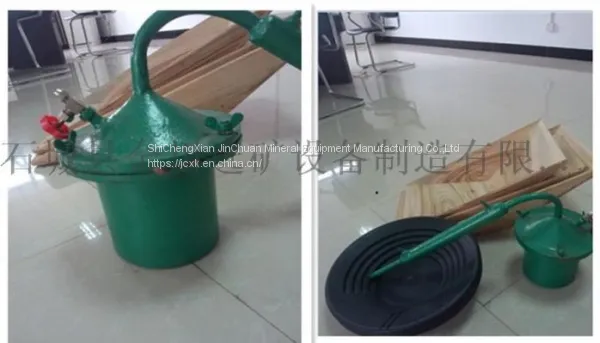

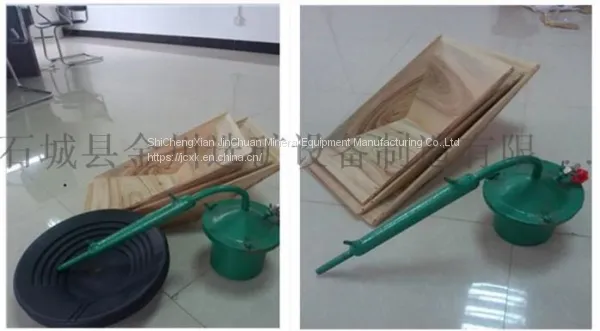

---Application pictures
Widely used in gold refining, and refining, chemical, light industry and other fields
