Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Lab Small Adjustable Magnetic Separator Dry Type Magnetic Separator Machine

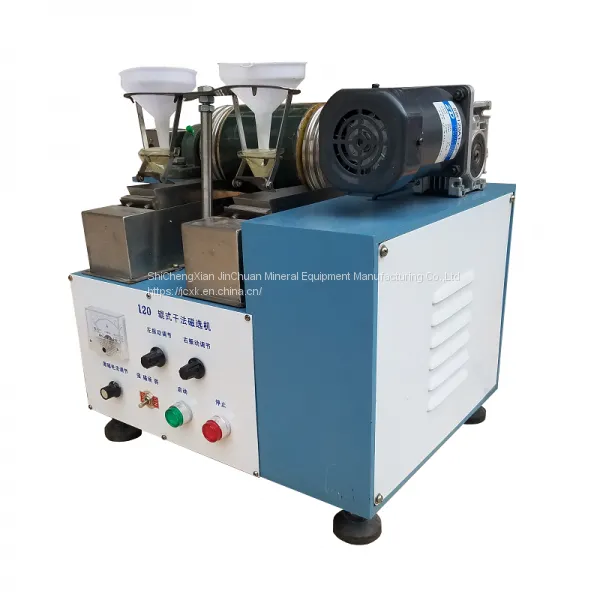

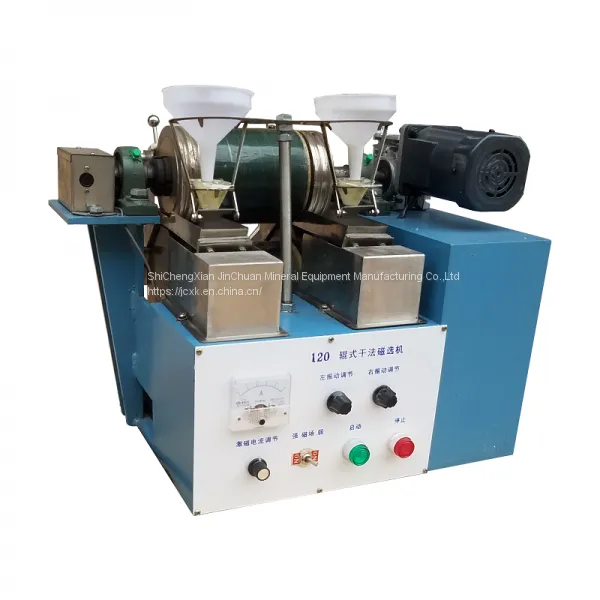

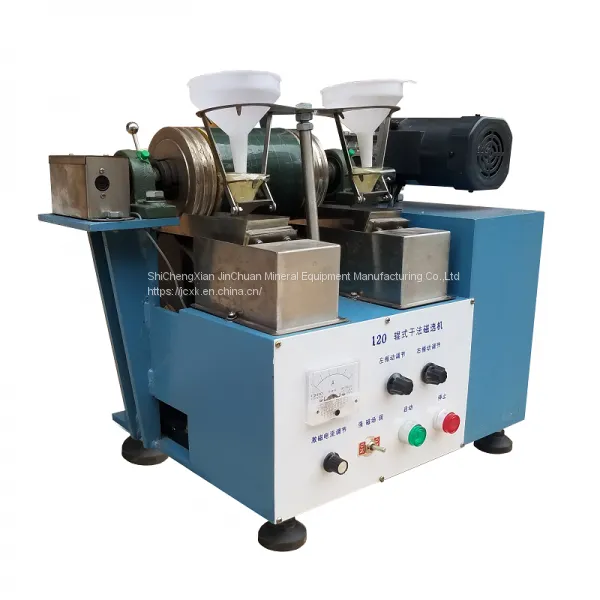

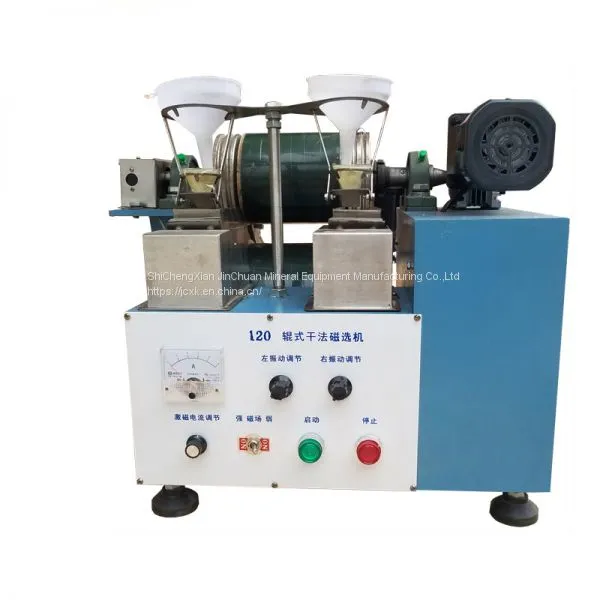

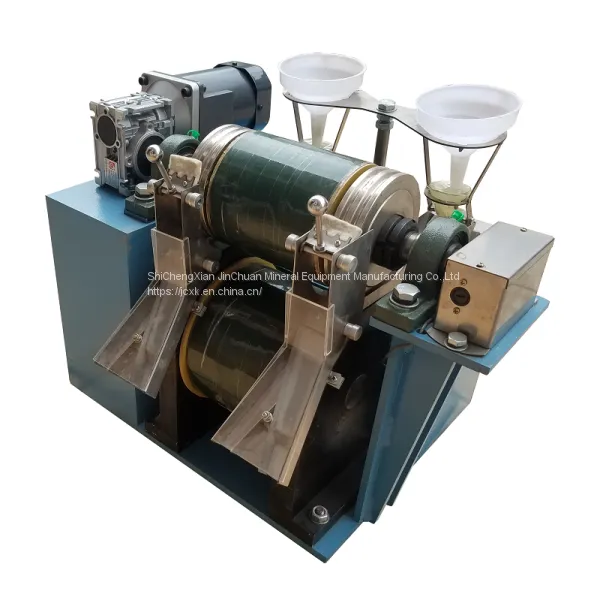

Lab Small Adjustable Magnetic Separator Dry Type Magnetic Separator Machine
US$ 2600 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Jinchuan
Place of Origin:
China
Model Number:
XCG-120
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen,Shanghai,Shenzhen
Delivery Detail:
7 days
Related Products
-
Mineral Processing Permanent Drum Magnetic Separator With Dry and Wet TypeUS$ 2000 - 20000MOQ: 1 Set -
Lab Wet Magnetic Separator XCGS-50 Magnetic TubeUS$ 2000 - 5000MOQ: 1 Set
-
Laboratory Wet High Intensity Magnetic Separator XCSQ50*70US$ 5000 - 20000MOQ: 1 Set
-
Laboratory XCRS74-400*300 Drum Wet Low Intensity Magnetic SeparatorUS$ 2000 - 5000MOQ: 1 Set
-
High Intensity Three Disc Belt Type Magnetic SeparatorUS$ 5000 - 20000MOQ: 1 Set
Brand Name
Jinchuan
Place of Origin
China
Model Number
XCG-120
Type
Magnetic Separator
Certification
ISO:9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Weight
75kg
Dimension(L*W*H)
416*386*416mm
Production Capacity
15-25kg/h
Voltage
As customer's request
Condition
New
Power(W)
/
Introduction
XCG-120 type roller dry magnetic separation machine applies to the metallurgical, geological, building materials and other scientific research units and geological team, dry separation of weak or strong magnetic minerals, the machine uses double closed working face by magnetic circuit, excitation system, mechanical drive system and products to mine sweeping and collecting system composed of electromagnetic vibration feeder, a mineral to the sub district, by controlling the excitation current size, the mineral through magnetic gap automatically into the magnetic material and non-magnetic material discharged out of the machine, in order to achieve the purpose of separation
Stracture
(1) excitation system: composed of fixed pole, roller magnetic pole and excitation winding and excitation DC power on both sides, the upper and lower two poles are parallel arranged. Two rollers with a diameter of 120 mm and the lower plane magnetic pole form a closed magnetic loop. Two the working distance of the magnetic pole can be adjusted by adding or reducing the cushion plate. Through the adjustment of the voltage of high-voltage machine made of silicon element supply fixed excitation winding and the DC current supply brush roller rotation pole excitation winding, can be smoothly from 2 amps to the rated value, in order to adapt to the separation of different types of ore the machine requires a range of magnetic field strength can be divided into two kinds of strong magnetic field and weak magnetic field, by the panel field selection switch selection. When the separation interval is 4 mm, the magnetic field selector switch is placed in a strong magnetic field. When the excitation current is 2 AMPERES, the large magnetic field strength is no less than 14000 OE (1110RA/m).
(2) Transmission structure: consists of electromagnetic vibration feeder, ore storage funnel and ore feeding cone and baffle. The electromagnetic vibration feeder can control the amplitude of the electromagnetic vibration feeder to meet the needs of different ore particles by adjusting the two lines around the panel to control the amplitude of the electromagnetic vibration feeder. In order to adjust the speed of ore feeding, the ore bearing cone with different sizes can be used. In normal ore feeding, the baffle is adjusted to about 45 degrees, so that the ore flow is evenly distributed into the ore slot. If the ore is stopped in the middle of the way, the baffle can be stopped at the level near the ore mouth, and the ore can be stopped.
(3) Product cleaning and collection part by the product receiving chute, separating plate, hammer and mineral consisting of container cleaning brush. In the middle of the product receiving tank, a separator, magnetic products are drawn on the roll, the partition of the chute into the product of magnetic ore separator filled container, the inclination of the movable groove side by screwing the handle can be adjusted, non magnetic products by lower ore groove into another containing ore container.
