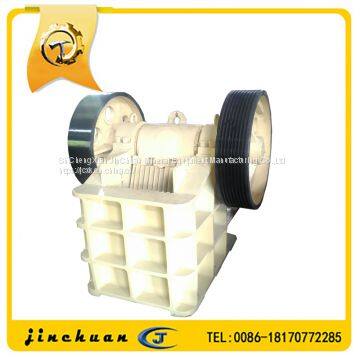

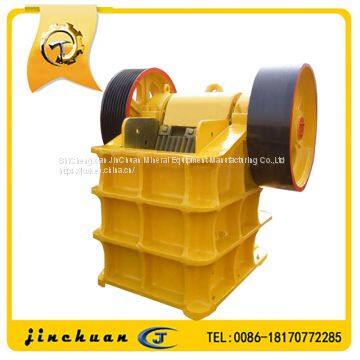

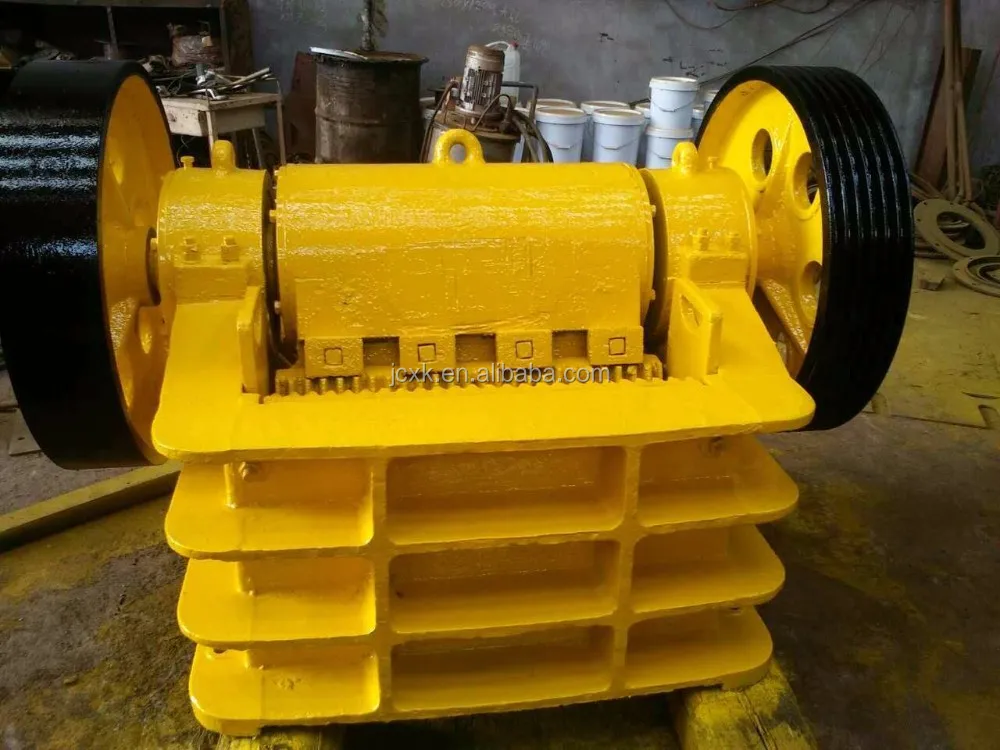

China stone crusher jaw crusher with good performance

FOB Price

USD $1000 - $30000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Xiamen or as request
Payment TermsT/T L/C Credit Card Other Cash Escrow
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jinchuan	Place of Origin	China
Model Number	PE150*250	Type	Jaw Crusher
Certification	ISO:9001	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	1 year	Weight	0.6t
Dimension(LWH)	720660850mm	Application	mining, metall-urgical industry, building material, highway, railway, and chemical industry
Condition	New	Power(W)	5.5kw
Motor Type	AC Motor	Capacity(t/h)	1-3tph

Product Description

Product Application

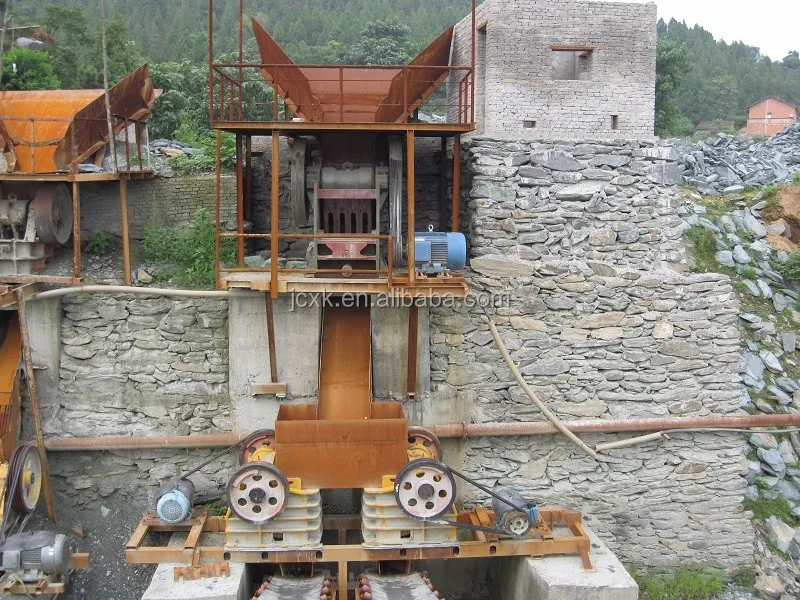

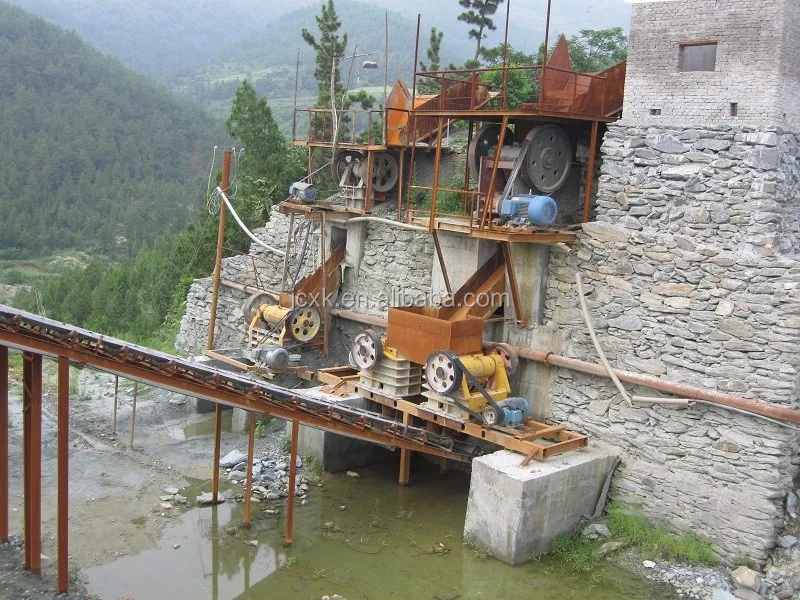

Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320 MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the

eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving

jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate

and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

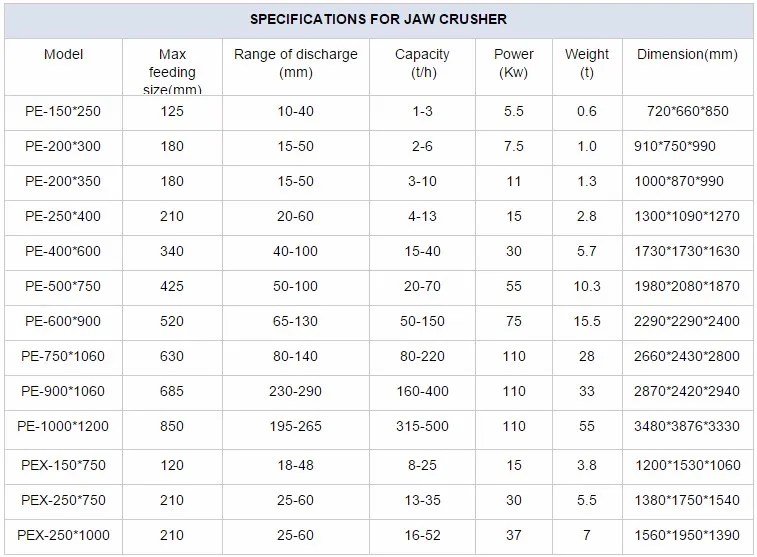

Product Specification

Main Features

1.Big reduction ratio
2.Even granularity
3.Simple structure
4.Reliable working condition
5.Convenient repair and economic operation
6.Widely used for mine, smelting, building material, road, railway, irrigation works
Chemical and materials with compression strength no more than 320 Mpa.

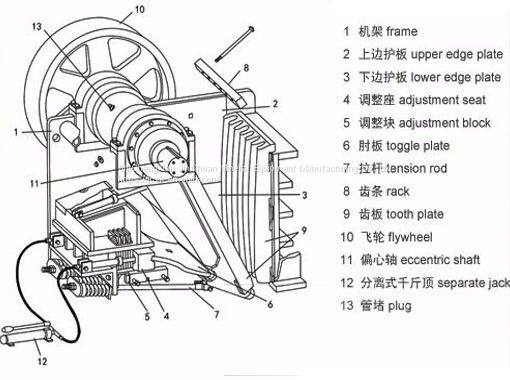

Working principle

The motor drives the eccentric shaft to rotate by the V-belt & the slot wheel, then the movable jaw moves back and forth to break the materials in the crushing cavity which is composed of fixed jaw plate & movable jaw plate and side guard plate. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be broken to reach the crushing target. When the movable jaw is moving down, the angle between the fixed jaw and movable jaw becomes smaller .the end products slide from the discharge opening at the bottom.
