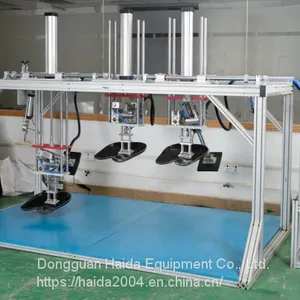

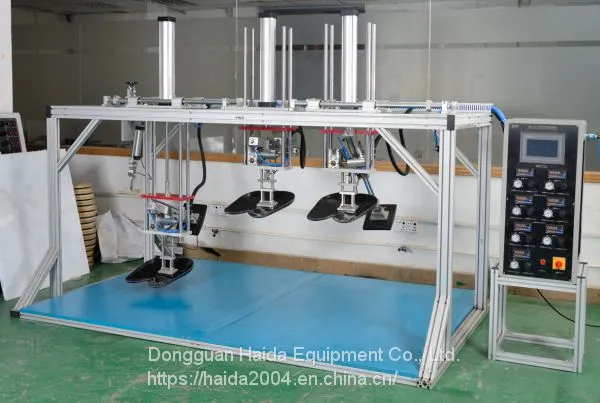

Help CenterHD-F761 Three-Seat Sofa Durability Tester
Related Products
APPLICATIONS&TEST PURPOSE
This tester simulates the normal conditions of usage to determine the sofa's endurance under a long-term repeatability loading. The principle is to simulate normal functional use to determine the strength of the three-sofa structure by applying to seating and backrest with loads.Using a certain shape and load modules, with specific form, frequency, respectively, repeating load seating, backrest and armrest. Three tests can work together or independently, also the test position is adjustable.
GENERL SPECIFICATIONS
Machine Dimensions: (W x D x H) 2500*1700*1850mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 950kg
DESIGN STANDARD: EN 4875
1a Seat static load test1b Back static load test
4a Seat fatigue test4b Back fatigue test
STANDARD FEATURES:
| Function | Three Seating and backrest test modules, one armrest modules |
| Timer | 0 ~ 999,999, can set the test cyclic freely |
| Cyclic and Holding Time | 0~99.9s |
| Air Source | 7kg/cm2(provided by customer) |
| Max Specimen Size | (L×W×H)2200×1200×1200mm |
| 1) Seat fatigue load: 950N; Backrest fatigue:400N 2) LCD color Touch screen, easy to operate 3)PLC programmable controller | |
