Help CenterF731-1 Chair Swivel Test Rig
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAIDA
Place of Origin:
China
Model Number:
F731-1
Payment & Shipping
Payment Methods:
Port of Shipment:
DONGWAN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
HAIDA
Place of Origin
China
Model Number
F731-1
Power
Electronic

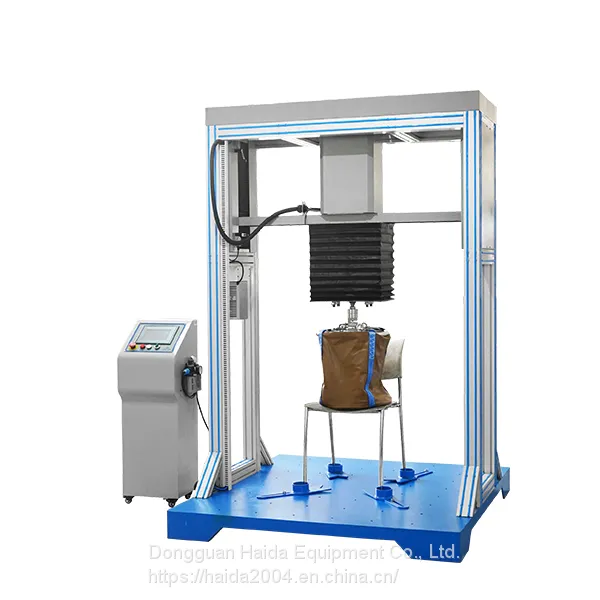

Chair Swivel Test Rig
Equipment Description
Test rig for rotation testing on seating furniture according to EN 1335, EN14073-2, DIN 38878 and BIFMA X5.1, load controlled with loading pad. The pneumatic test axis operates from PLC.
GENERL SPECIFICATIONS
Machine Dimensions: (W x D x H) 1680*890*1840mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 400kg
STANDARD FEATURES
| Framework | 1 framework with traverse member and base plat 1200mm×1200mm, 12mm thick, galvanized steel |
| Rotation test axis | 1 electromotive test axis for the rotation of the turnning knob, position-controlled, rotation angle+/-360° |
| Pneumatic test axis | 1 pneumatic test axis for seat, load controlled, position diameter 80mm, stroke 500mm |
| Load | Load up to 1900N, 2×Load Cell 2KN. Load is transmitted vertically to the seat with lateral adjusting range |
| Limited Control | Operating pressure and cylinder limit switch control |
| Emergency Button | 1 emergency button |
| Number and Cycles | Can be set by PLC (0-99,999) |
| Accessories(Optional) | 1 load pad diameter 200mm DIN EN 1335 |
APPLICATION STANDARDS:
EN 1335, EN14073-2, DIN 38878 and BIFMA X5.1
