Help CenterHD-F754 Foam Rebound Test Equipment
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAIDA
Place of Origin:
China
Model Number:
HD-F754
Payment & Shipping
Payment Methods:
Port of Shipment:
Dongwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HD-F764 Cornell Mattress Tester FactoryUS$ 1 - 10MOQ: 1 Set -
HD-F750-1 Foam Pounding Fatigue TesterUS$ 1 - 10MOQ: 1 Set
-
HD-F736-4 Drop Impact Test Machine for ChairUS$ 1 - 10MOQ: 1 Set
-
HD-F780 Chair Seat Combined TesterUS$ 1 - 10MOQ: 1 Set
-
HD-F761 Three-Seat Sofa Durability TesterUS$ 1 - 10MOQ: 1 Set
Brand Name
HAIDA
Place of Origin
China
Model Number
HD-F754
Power
Electronic
Usage
Tensile Testing Machine
PRODUCT DESCRIPTION

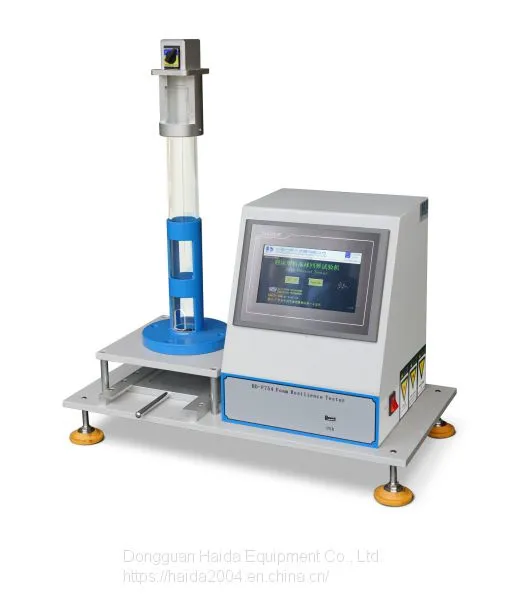

The machine specify diameter and mass ball fall on the foam specimen from certain height, calculate the percentage between maximum drop height and rebound height, indicate foam resilience by spring rate. It uses a microprocessor to control, LCD display.
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 680*470*860mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 40kg
APPLICATION STANDARDS:
ASTM D 3574, ISO 8307, SEC N3296
STANDARD FEATURES
| Drop height | 500±0.5%mm |
| Drop ball | Diameter.¢16±0.05mm, mass 16.8±1.5g |
| Accuracy | |
| Display | LCD Touch Screen Interface |
| Sensor | Optical Fiber Sensor |
| Test result | Rebound height, rebound rate and average rebound rate after 5 test times |
| Sample size(L×W×H) | 100mm×100mm×50mm |
| Machine dimension (L×W×H) | 570×300×570mm |
| USB interface | Output test results by USB |
| Accessories | One drop ball, one sample tray and one pick rod |
