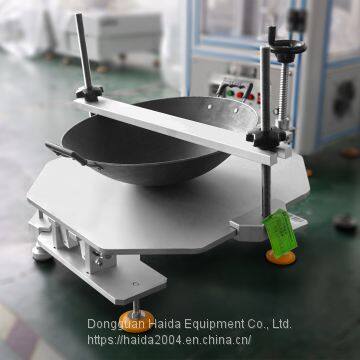

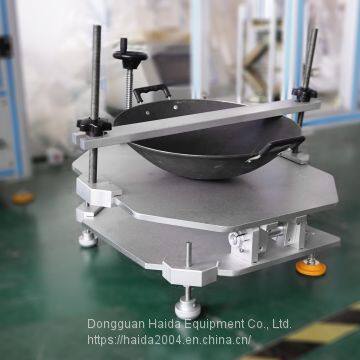

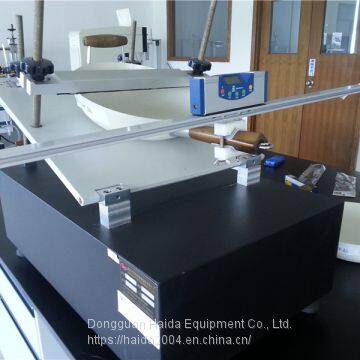

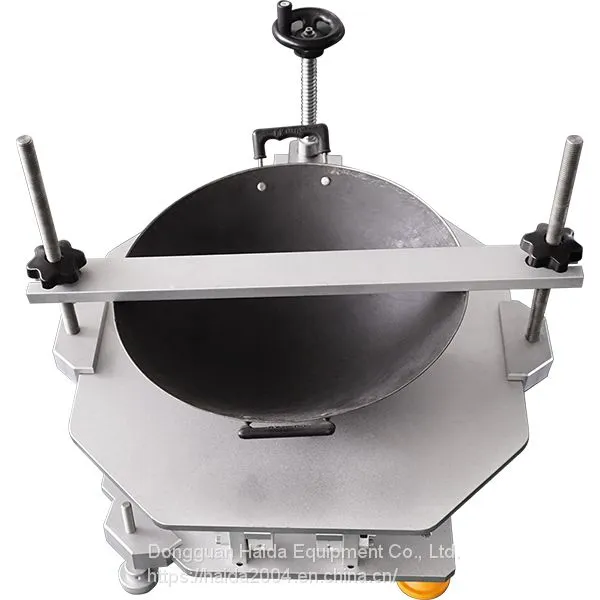

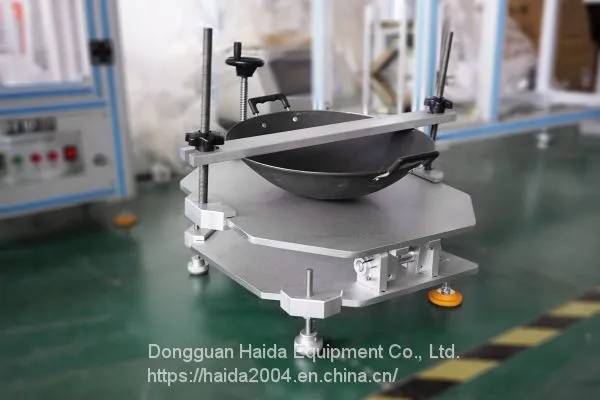

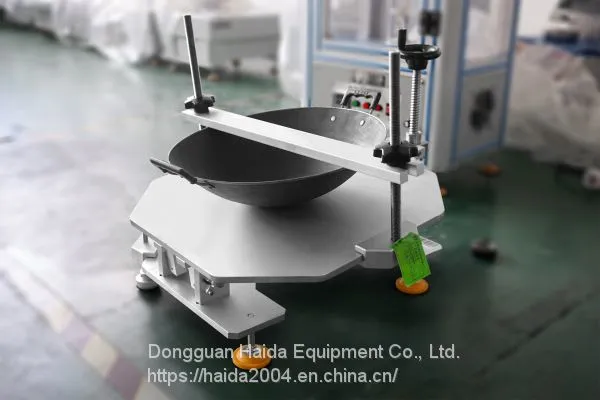

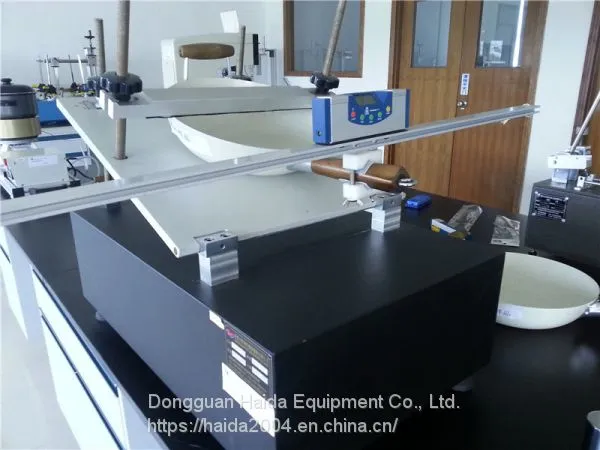

Help CenterHD-M001 Torque Resistance Tester
Related Products
APPLICATIONS& TEST PURPOSE:
The machine is used to perform torque strength of handle; the distortion at each direct cannot over
10 degree , also not affect the function under normal use condition.
DESIGN STANDARD: BS EN12983-1
STANDARD PARAMETERS:
1. A lever, 1 m long of weight 1 Kg ± 0.1 Kg including the attachment and the pointer, capable of being affixed to the handle through clamping fixture.(Resin epoxy provide for the molding of handle shape in order to affixed the handle in such a way that its centre coincides with the centre of the handle and there is no movement between the lever and the handle.
2. 1 Kg test mass included.
3. A hinged board of easy adjustment, made of aluminum provide to coup with different handle angle.
4. Scale display: digital .
5. Scale resolution = 1 degree.
