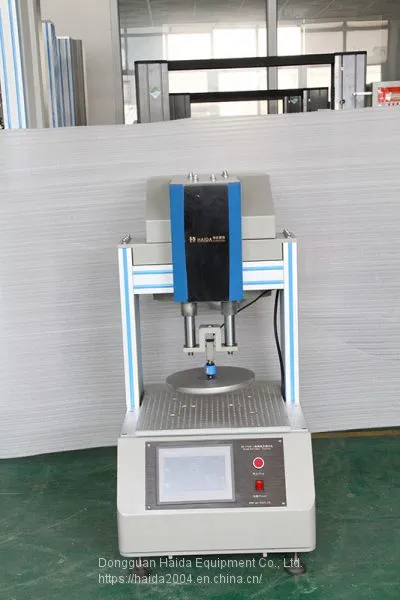

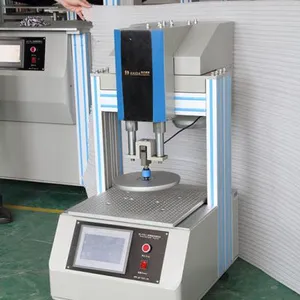

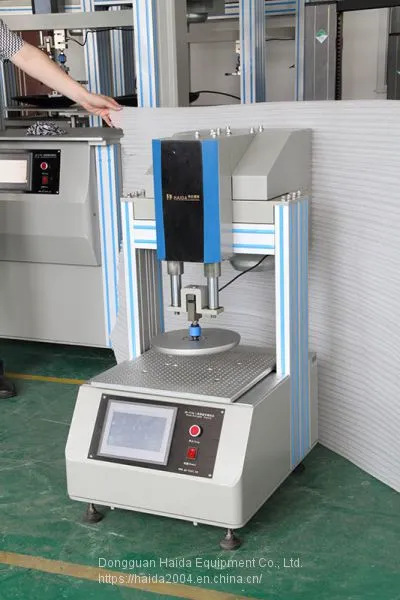

HD-F750-1 Foam Pounding Fatigue Tester
US$ 1 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HAIDA
Place of Origin:
China
Model Number:
HD-F750-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Dongwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
HAIDA
Place of Origin
China
Model Number
HD-F750-1
Power
Electronic
Usage
Bending Testing Machine
HD-F750-1 Foam Pounding Fatigue Tester
PRODUCT DESCRIPTION
The machine is used to test foam fatigue by repeating indentation of a test piece, the maximum load reached during each cycle being kept within specified limits.
GENERL SPECIFICATIONS
Packaging Dimensions: (W×D×H) 950×680×1230MM
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 190kg
APPLICATION STANDARDS:
ASTM D 3574, ISO 3385
TANDARD FEATURES
| Max capacity | 200kg |
| Plane plate | Holes diameter 6mm, space 20mm |
| Intendor | Having an overall diameter of 250mm ± 1mm with a 25mm ± 1mm radius at its lower edge |
| Test Force | 750N± 20N during one loading cycle |
| Speed | (70±5)times per minute |
| Sample Size | Test pieces shall be right parallelepipeds having sides of length 380mm ± 20mm and a thickness of 50mm ± 2mm |
| Counter | 6 digits cycle counter fortest cycle setting |
| Display | LCD touch screen |
| Additional Function | Adjust the test position during testing to compensate the force automatically |
| Dimension | 760×780×1350mm |
