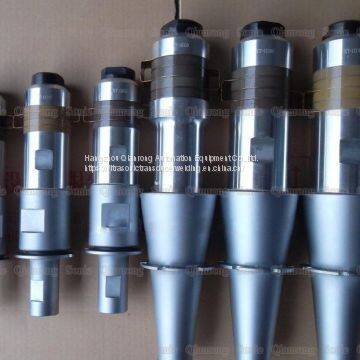

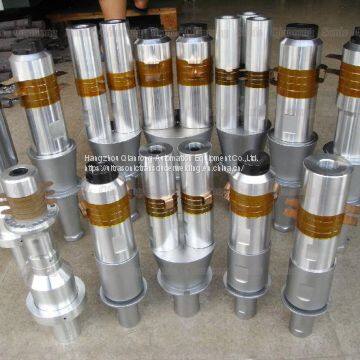

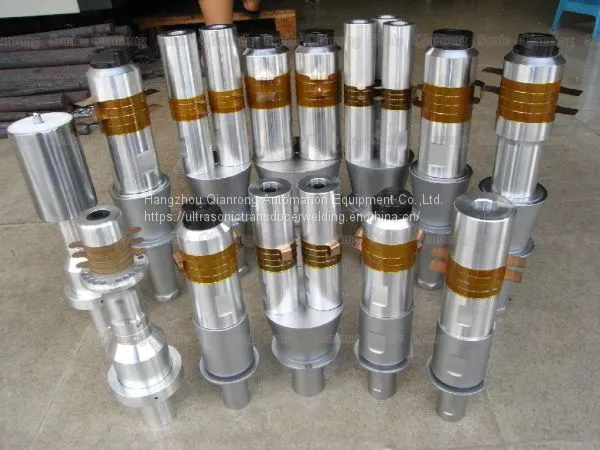

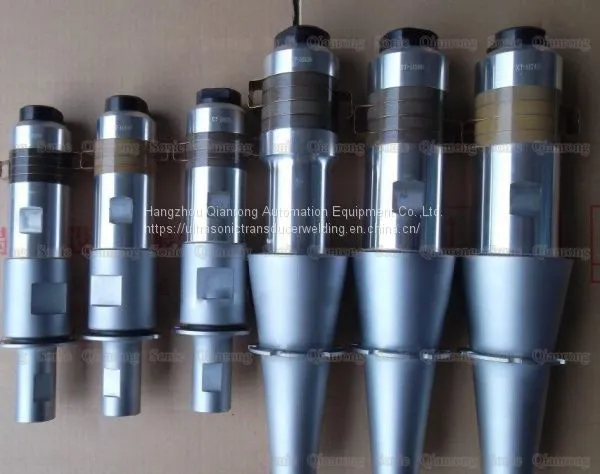

20 khz 1500w 50mm piezoelectric ultrasonic welding transducer with import superior ceramic disc
Description:
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.
The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. Ultrasonic horn is a passive device that does not generate vibration. It only changes the amplitude of the vibration input from the ultrasonic transducer and then transmits it. Impedance transformation.
Specifications:
| Model | QR-5020-4BZ-BJ |
| Frequency | 20 khz |
| Output power | 1500 watt |
| Joint bolt | 3/8-24UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-16nf |
| Application | Plastic welding machine |
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
