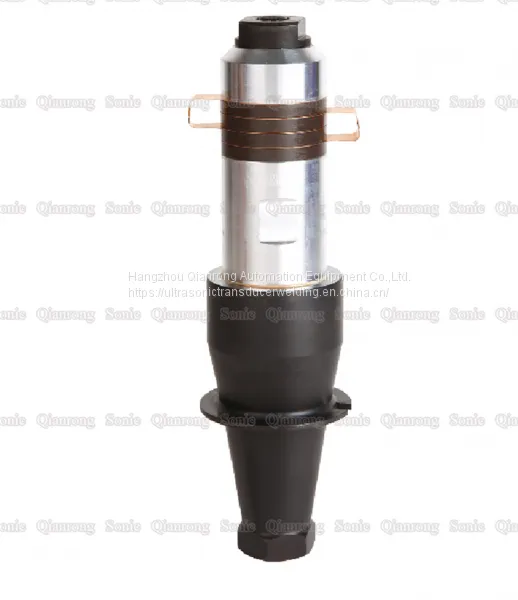

20Khz 1500w Industrial Welding Piezo Ultrasonic Transducers 3/8-24UNF , High Temperature
Description:
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.
The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. Ultrasonic horn is a passive device that does not generate vibration. It only changes the amplitude of the vibration input from the ultrasonic transducer and then transmits it. Impedance transformation.
Specifications:
| Model | QR-5020-4BZ-ZZ |
| Frequency | 20 khz |
| Output power | 1500 watt |
| Joint bolt | 3/8-24UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-16nf |
| Application | Plastic welding machine |
The columnar type NTK TYPE (stabilized power and high reliablity widely application) | |||||||||||
Item No. |
Connect screw (Size) |
Ceramic diameter (mm) |
Quantity of Ceramic (pc) |
Resonance frequency (khz) |
Resistance (Ω) |
Capacitance |
Input power (W) |
Max. Amplitude (um) |
|||
Yellow |
Grey |
Black |
|||||||||
7015-4Z |
M20 X 1.5 |
70 |
4 |
15 |
15 |
12500-14000 |
/ |
17000-19000 |
2600 |
10 |
|
6015-4Z |
M20 X 1.5 or M16 X 1 |
60 |
4 |
15 |
15 |
8000-10000 |
10000-12000 |
12500-13500 |
2200 |
10 |
|
6015-6Z |
M20 X 1.5 |
60 |
6 |
15 |
15 |
14000-16000 |
/ |
19500-21000 |
2600 |
10 |
|
5015-4Z |
M18 X 1.5 |
50 |
4 |
15 |
15 |
12000-13000 |
13000-14300 |
15000-17000 |
1500 |
8 |
|
4015-4Z |
M16 X 1 |
40 |
4 |
15 |
15 |
10000-11000 |
10500-11500 |
700 |
8 |
||
5520-4Z |
M18 X 1 |
55 |
4 |
20 |
15 |
10000-11000 |
10500-11500 |
14300-20000 |
2000 |
8 |
|
5020-6Z |
M18 X 1.5 |
50 |
6 |
20 |
15 |
18500-20000 |
/ |
22500-25000 |
2000 |
8 |
|
5020-4Z |
M18 X 1.5 |
50 |
4 |
20 |
15 |
11000-13000 |
13000-15000 |
15000-17000 |
1500 |
8 |
|
5020-2Z |
M18 X 1.5 |
50 |
2 |
20 |
20 |
6000-6500 |
6500-7000 |
8000-9000 |
800 |
6 |
|
4020-4Z |
1/2-20UNF |
40 |
4 |
20 |
15 |
9000-10000 |
9500-11000 |
/ |
900 |
6 |
|
4020-2Z |
1/2-20UNF |
40 |
2 |
20 |
25 |
/ |
4800-5500 |
/ |
500 |
5 |
|
5025-2Z |
M12 X 1 |
50 |
2 |
25 |
25 |
5000-5600 |
/ |
7000-8000 |
500 |
4 |
|
3828-2Z |
1/2-20UNF |
38 |
2 |
28 |
30 |
3800-4300 |
/ |
/ |
500 |
3 |
|
3828-4Z |
1/2-20UNF |
38 |
4 |
28 |
30 |
7600-8500 |
/ |
10500-12000 |
800 |
4 |
|
3028-2Z |
3/8-24UNF |
30 |
2 |
28 |
30 |
2700-3100 |
3400-3800 |
/ |
400 |
3 |
|
2528-4Z |
M8 X 1 |
25 |
4 |
28 |
30 |
3900-4300 |
/ |
/ |
400 |
4 |
|
2528-2Z |
M8 X 1 or 3/8-24UNF |
25 |
2 |
28 |
35 |
1950-2200 |
2200-2500 |
/ |
300 |
3 |
|
3030-4Z |
M10 |
30 |
4 |
30 |
30 |
/ |
6200-6900 |
/ |
700 |
4 |
|
3035-2Z |
3/8-24UNF |
30 |
2 |
35 |
40 |
2700-3100 |
/ |
/ |
500 |
2 |
|
3035-4Z |
M10 X 1 |
30 |
4 |
35 |
30 |
5000-6200 |
/ |
/ |
800 |
3 |
|
2535-2Z |
M8 X 1 |
25 |
2 |
35 |
40 |
1900-2200 |
/ |
/ |
400 |
2 |
|
2540-2Z |
3/8-24UNF |
25 |
2 |
40 |
40 |
/ |
2000-2300 |
/ |
500 |
2 |
|
3040-4Z |
M10 |
30 |
4 |
40 |
30 |
5500-6200 |
/ |
/ |
1000 |
2 |
|
3050-4Z |
M8 |
30 |
4 |
50 |
30 |
5500-6200 |
/ |
/ |
600 |
2 |
|
1560-2Z |
M6 X 0.75 |
15 |
2 |
60 |
60 |
/ |
/ |
700-800 |
100 |
1 |
|
1070-2Z |
M4 |
10 |
2 |
70 |
200 |
/ |
/ |
350-400 |
100 |
1 |
|

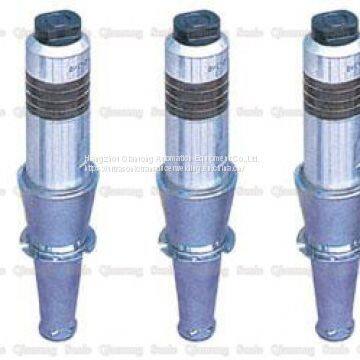

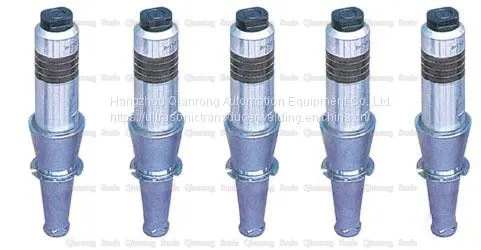

The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application) | |||||||||||
Item No. |
Connect screw (Size) |
Ceramic diameter (mm) |
Quantity of Ceramic (pc) |
Resonance frequency (khz) |
Resistance (Ω) |
Capacitance |
Input power (W) |
Max. Amplitude (um) |
|||
Yellow |
Grey |
Black |
|||||||||
7015-4D |
M20 X 1.5 |
70 |
4 |
15 |
15 |
12500-14000 |
/ |
17000-19000 |
2600 |
11 |
|
6015-4D |
M18 X 1.5 |
60 |
4 |
15 |
15 |
9000-10000 |
10000-11000 |
/ |
2200 |
11 |
|
6015-6D |
1/2-20UNF |
60 |
6 |
15 |
15 |
19000-20500 |
/ |
23000-25000 |
2600 |
11 |
|
5015-6D |
1/2-20UNF |
50 |
6 |
15 |
15 |
17000-19000 |
/ |
23000-25000 |
2000 |
11 |
|
5020- 4DS |
1/2-20UNF |
50 |
4 |
20 |
15 |
11000-12000 |
12000-13500 |
/ |
1300 |
8 |
|
5020-4D |
1/2-20UNF |
50 |
4 |
20 |
15 |
11000-12000 |
12000-13500 |
14500-16000 |
1500 |
8 |
|
5020-6D |
1/2-20UNF |
50 |
6 |
20 |
15 |
19000-21000 |
/ |
22500-25000 |
2000 |
10 |
|
4020-6D |
1/2-20UNF |
40 |
6 |
20 |
15 |
13500-15000 |
/ |
/ |
1500 |
10 |
|
4020-4D |
1/2-20UNF |
40 |
4 |
20 |
15 |
8500-9300/ 9500-10500 |
10000-11000 |
10500-11500 |
900 |
8 |
|
3020-6D |
3/8-24UNF |
30 |
6 |
20 |
15 |
8000-9000 |
/ |
/ |
600 |
9 |
|
3030-4D |
M8 or M8 X 1 |
30 |
4 |
30 |
20 |
/ |
6200-6900 |
/ |
800 |
5 |
|
3535-2D |
M8 X 1 |
35 |
2 |
35 |
25 |
/ |
/ |
4500-5000 |
600 |
9 |
|
3535-4D |
M8 X 1 |
35 |
4 |
35 |
20 |
6600-7400 |
/ |
9000-10000 |
1000 |
4 |
|
3035-4D |
1/2-20UNF |
30 |
4 |
35 |
20 |
5500-6200 |
/ |
9200-10200 |
800 |
4 |
|
2535-4D |
M8 |
25 |
4 |
35 |
25 |
3900-4300 |
/ |
/ |
500 |
4 |
|
3040-2D |
M8 |
30 |
2 |
40 |
30 |
/ |
3400-3800 |
/ |
500 |
2 |
|
2540-4D |
M8 |
25 |
4 |
40 |
30 |
4500-5300 |
/ |
/ |
500 |
3 |
|
2040-2D |
M8 |
20 |
2 |
40 |
40 |
1100-1300 |
1150-1350 |
/ |
300 |
2 |
|
PS:we can also customize depend on your requirements.
