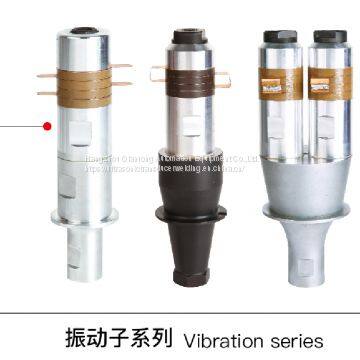

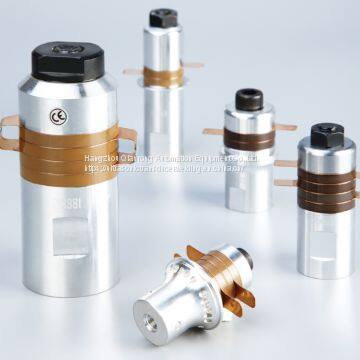

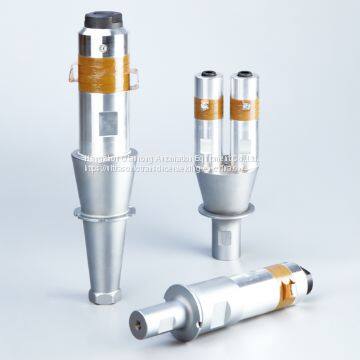

35Khz High Frequency Ultrasonic Transducer 500W With 2PCS Ceramics 35mm PZT8
Description:
The ultrasonic sensor is a sensor that is developed using the characteristics of ultrasonic waves. Ultrasonic wave is a kind of mechanical wave with a vibration frequency higher than that of sound waves. It is generated by the vibration of the transducer wafer under the excitation of voltage. It has high frequency, short wavelength, small diffraction phenomenon, especially good directivity, and can be ray oriented. Characteristics such as communication. Ultrasonic waves have a great ability to penetrate liquids and solids, especially in sunlight-opaque solids, which can penetrate depths of several tens of meters. When an ultrasonic wave hits an impurity or an interface, it will produce a significant reflection to form a reflection into an echo, which can produce a Doppler effect when it hits a moving object.
Specifications:
| Model | QR-3535-2BD |
| Frequency | 35khz |
| Output power | 500 watt |
| Joint bolt | M8*1 |
| Ceramic disc Diameter | 35mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 4.5-5nf |
| Amplitude | 6 um |
| Application | Plastic welding machine |
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Ultrasonic transducer process differentiation can be divided into the following points:
1. It can be identified from the manufacturing process and appearance of the ultrasonic transducer. The transducer indirectly shows that the company pays attention to the quality of the product, and the quality of the process and appearance is naturally better. Moreover, the design process indirectly affects the quality of production.
2. It can be identified according to the process design and application data of the ultrasonic transducer, but this requirement is very understandable and experienced for the transducer data. Whether the design can be reasonably determined should be based on the selection of materials. The quality of the data indirectly affects the quality of the product. The same specifications of the origin of the data is not the same, the quality will vary greatly.
3. Parameter detection, whether the parameters of the ultrasonic transducer can be matched with the parameters of the electric box, can it reach the ideal effect.
