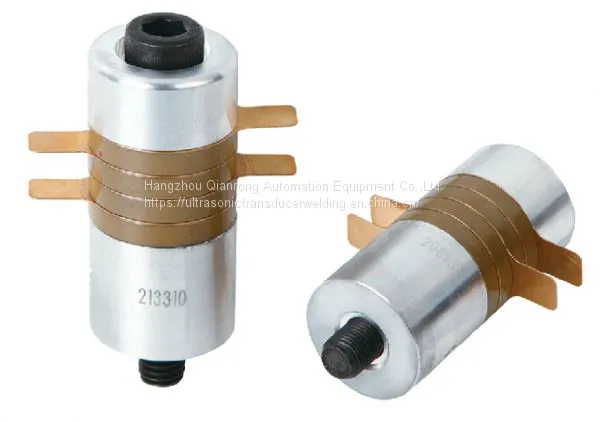

35KHZ 500w Ultrasonic Welding Transducer with One Connected Screw
Description:
ultrasonic transducer is an energy conversion device whose performance description and evaluation requires many parameters. The characteristic parameters of the transducer include resonance frequency, frequency bandwidth, electromechanical coupling coefficient, electroacoustic efficiency, mechanical quality factor, impedance characteristics, frequency characteristics, directivity, transmission and reception sensitivity, and the like. Transducers for different applications have different performance parameters. For example, for an emissive transducer, the transducer is required to have a large output power and high energy conversion efficiency; and for a transducing transducer, a wide requirement is required. Frequency band and high sensitivity and resolution. Therefore, in the specific design process of the transducer, the relevant parameters of the transducer must be rationally designed according to the specific application.
Specifications:
| Model | QR-3035-4BZ |
| Frequency | 35khz |
| Output power | 500 watt |
| Joint bolt | M10 |
| Ceramic disc Diameter | 30mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 5.5-6.2nf |
| Amplitude | 6 um |
| Application | Plastic welding machine |
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
