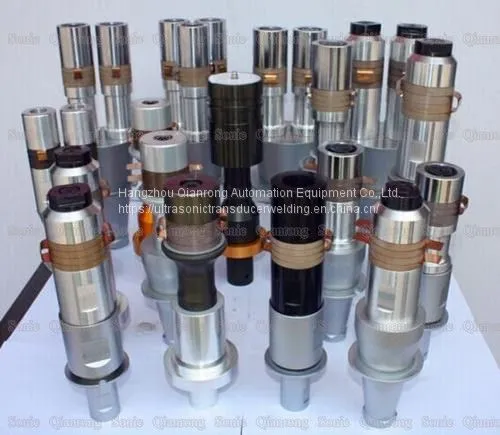

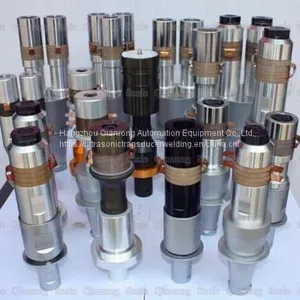

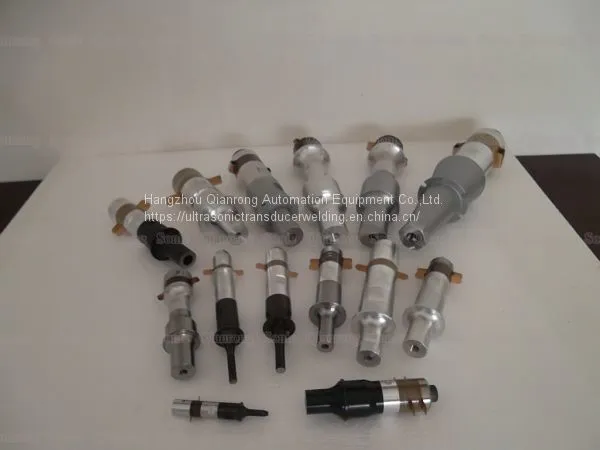

1500 Watt 20Khz Power Supply Ultrasonic Welding Transducer with Steel Booster
Description:
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.
The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. Ultrasonic horn is a passive device that does not generate vibration. It only changes the amplitude of the vibration input from the ultrasonic transducer and then transmits it. Impedance transformation.
Specifications:
| Model | QR-5020-4BZ-BZ |
| Frequency | 20 khz |
| Output power | 1500 watt |
| Joint bolt | 3/8-24UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-16nf |
| Application | Plastic welding machine |
Applications:
Our transducer can applied in the following ultrasonic machines:
Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantage:
1. Imported ceramic discs and superior aluminum raw materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
