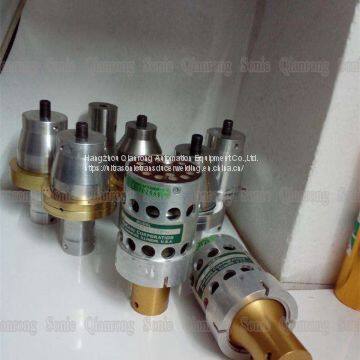

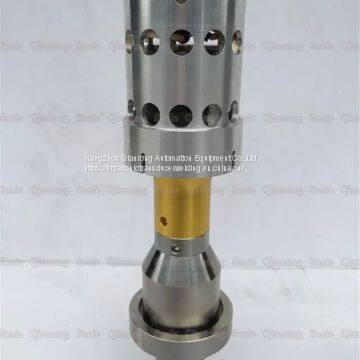

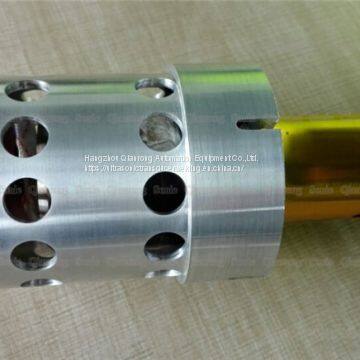

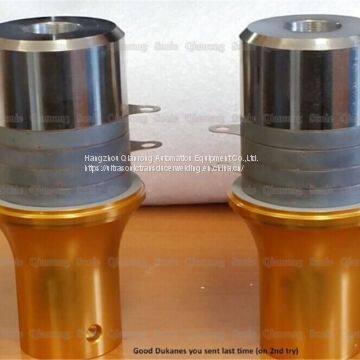

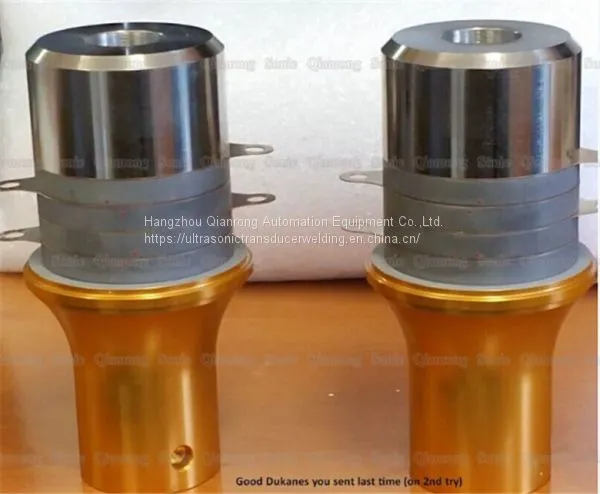

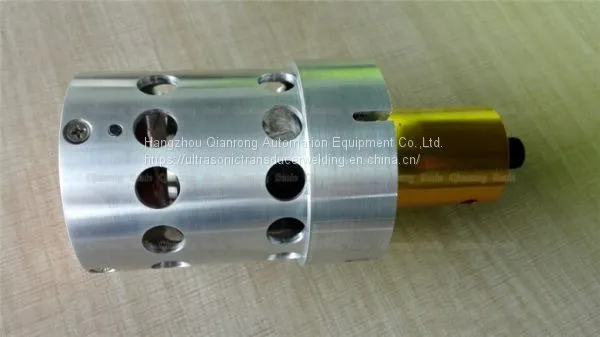

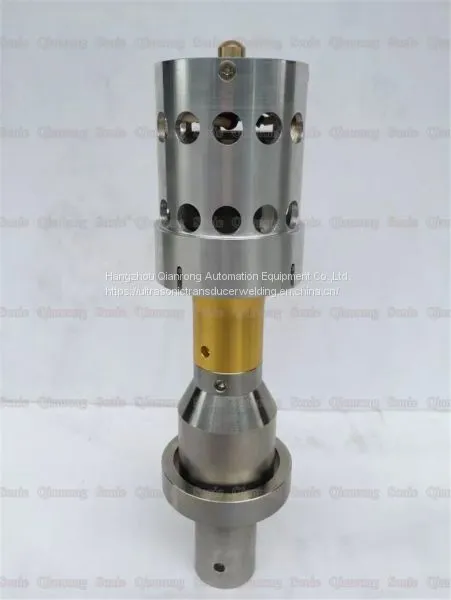

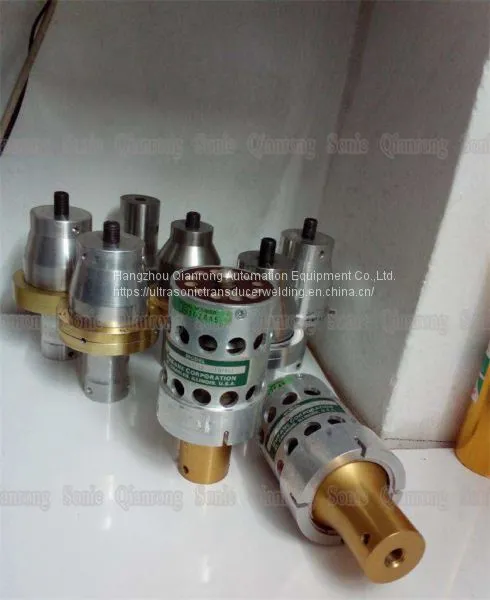

20Khz 2000w Ultrasonic Replacement Dukane 110-3122 Converter
Description:
Replacement Dukane 20 kHz 110-3122 converter. Standard on Ultra Series systems heavy-duty series press and thruster systems utilizing model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 press/thruster.
Ultrasound, as its name implies, exceeds the sound waves of conventional sound waves. Sound waves are longitudinal waves that can be felt by the human ear and have a frequency range of 16 Hz to 20 kHz. When the frequency of sound waves is lower than 16 Hz, it is called infrasound wave, and when it is higher than 20 kHz, it is called ultrasonic sound wave.
Specifications:
| Model | QR-D110-3122 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11-18nf |
| Amplitude | 10 um |
| Application | Plastic welding machine |
There are four aspects to ultrasonic properties:
1) Ultrasonic waves can be effectively propagated in media such as gases, liquids, solids, and solid solutions.
2) Ultrasonic waves can transmit very strong energy.
3) Ultrasonic waves will produce reflection, interference, superposition and resonance of the hot melt machine.
4) When ultrasonic waves propagate in a liquid medium, strong impact and cavitation can occur at the interface.
